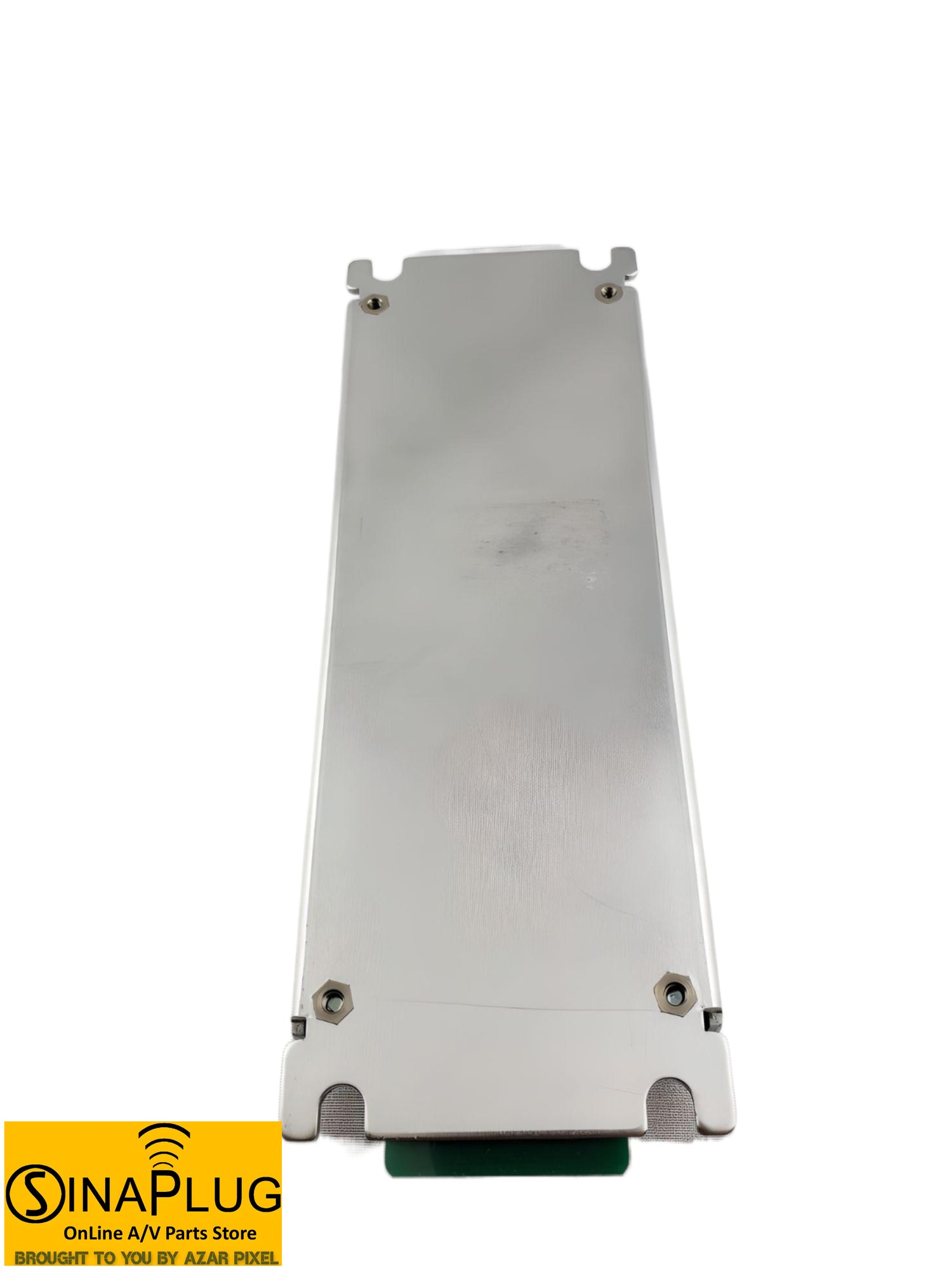

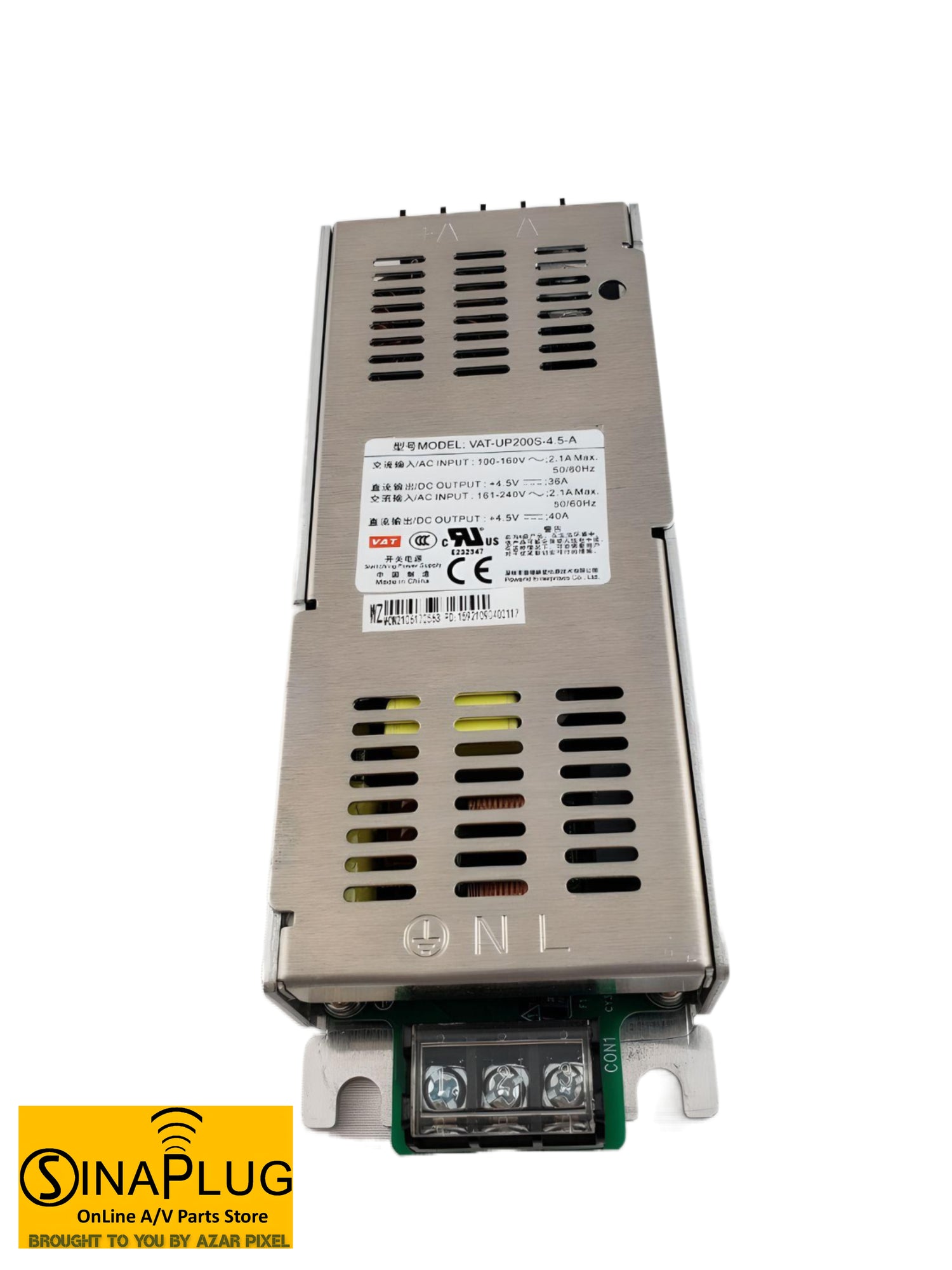

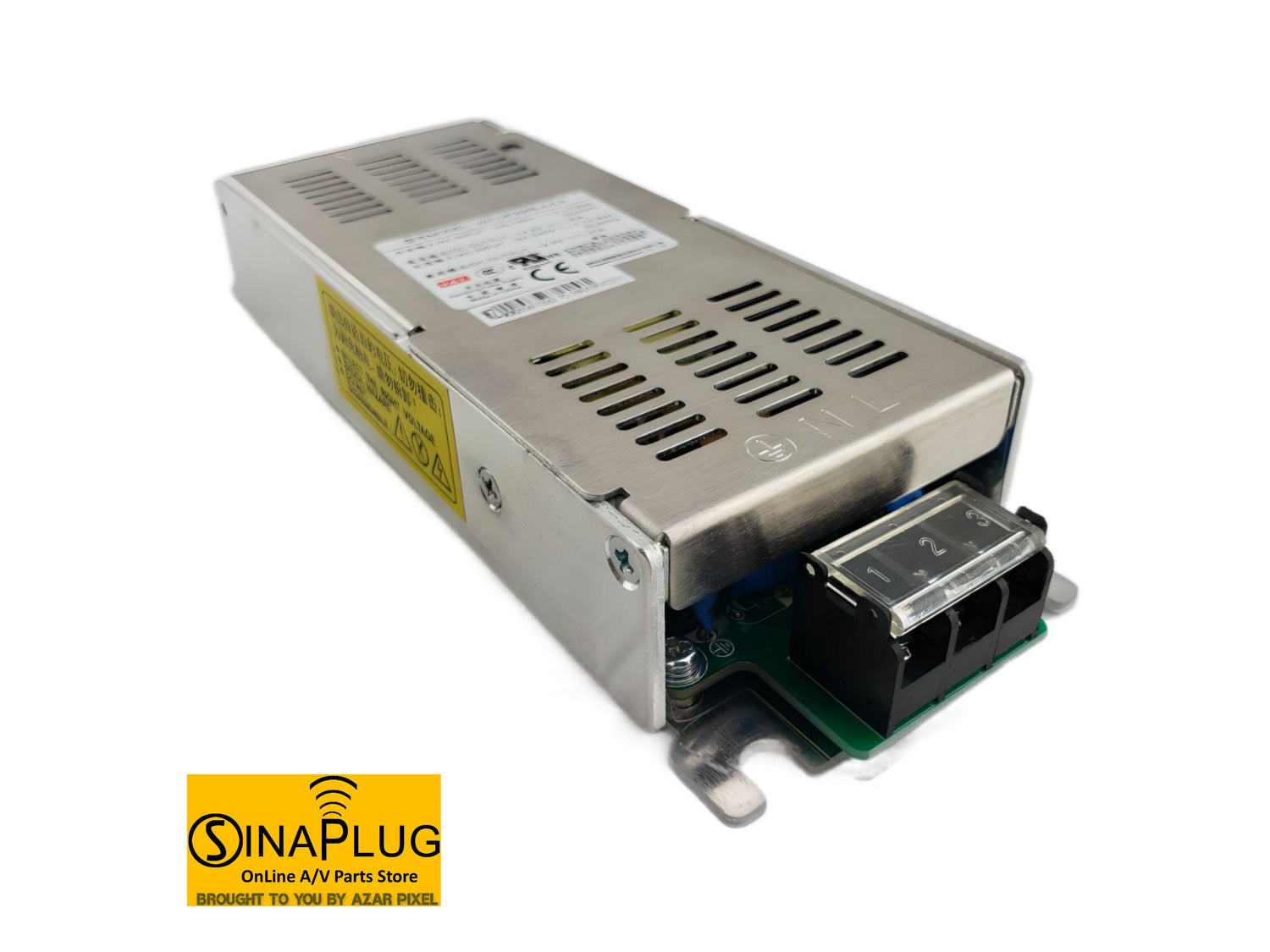

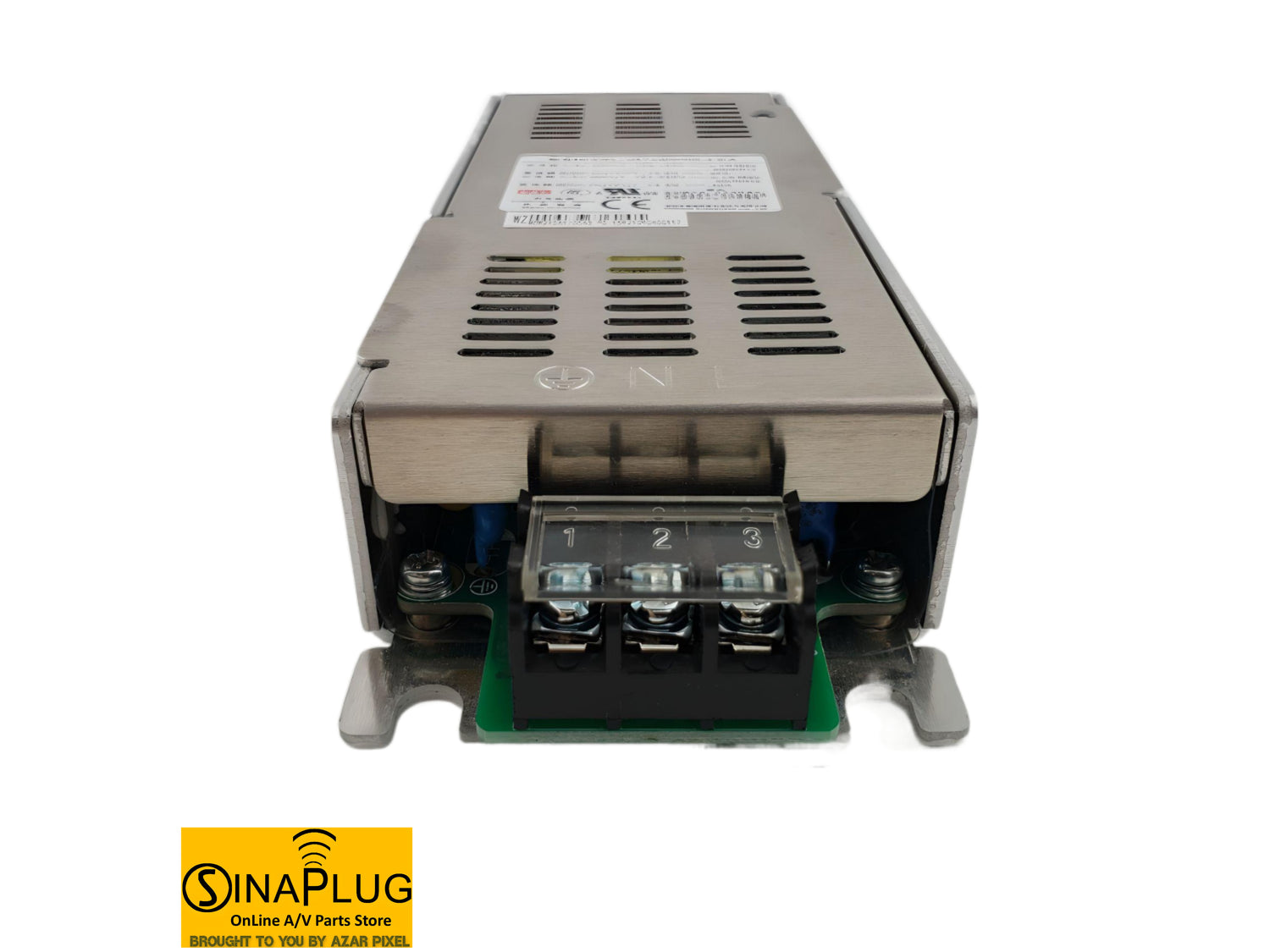

POWERLD VAT-UP200S-4.5-A Power Supply (4.5V, 36A)

The POWERLD VAT-UP200S-4.5-A (also known as: VAT 4.5V 200W from VAT-UP200S series) is a remarkable, enclosed power supply perfect for industrial applications, and A/V and LED equipment that demand consistent and dependable performance. it contains key characteristics such as 2G anti-vibration, and automated recovery protections.

This AC/DC, compact VAT-UP200S-4.5-A operates with two input ranges of 100-160 VAC and 161-240 VAC to produce 5V at 36A for 100-160VAC (0-40A at 161-240VAC) and delivers 180W rated output power with a 0.9 Power Factor that reduces the impact on the electrical grid and enhances efficiency for optimal performance. It can provide a peak power of 225W, making it ideal for handling up to 50A startup currents (50 ms).

The 88% efficiency of the VAT-UP200S-4.5-A ensures minimal heat production, excellent 100K hours MTBF, and long-term operation in demanding situations. It can operate using natural air convection (recommended to be mounted on a heatsink), without whistling noise, across a wide range of ambient temperatures from -40°C to +60°C.

In addition to the advanced protections such as overload and short circuit protections (all with automatic recovery), it is certified by GB4943, EN60950, GB2324, EN55022, IEC61000-4, IEC 61000-6-1, GB 17625, GB/T 17626, and GB/T1471 allowing it to meet the worldwide energy requirement.

Key Features of VAT-UP200S-4.5-A

• Type of Power Supply: AC to DC
• Packaging: Enclosed
• Input Voltage Range: 100-160VAC / 161-240VAC
• Adjustable Output Voltage: No
• Output Voltage: 4.5V
• Output Rated Current: 36A(100-160V) / 40A (161-240V)
• Output Rated Power: 180W
• Protections: Over Current Protection, Short Circuit Protection
• Dimensions (L*W*H): 179.5mm * 61mm * 30mm
