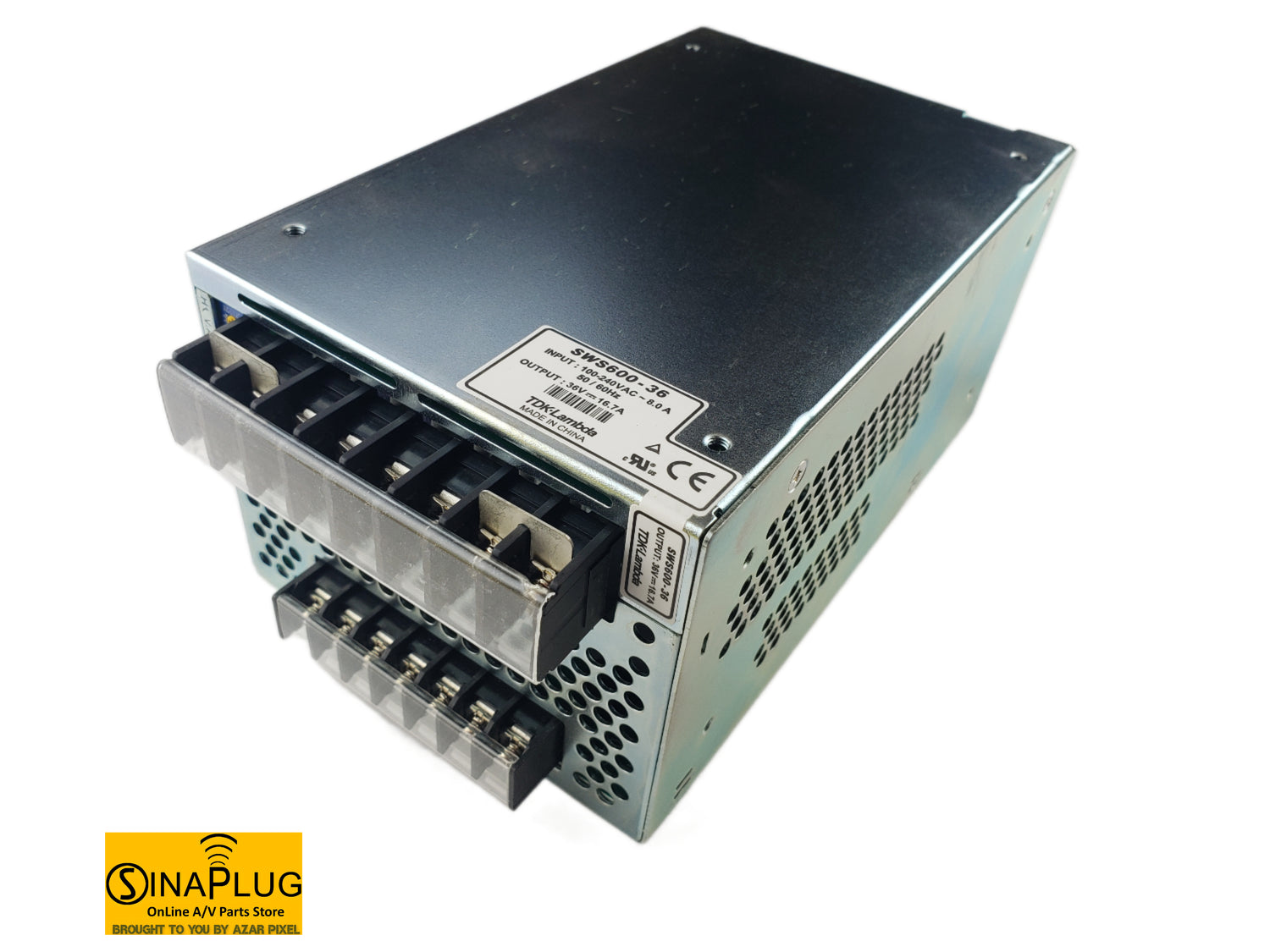

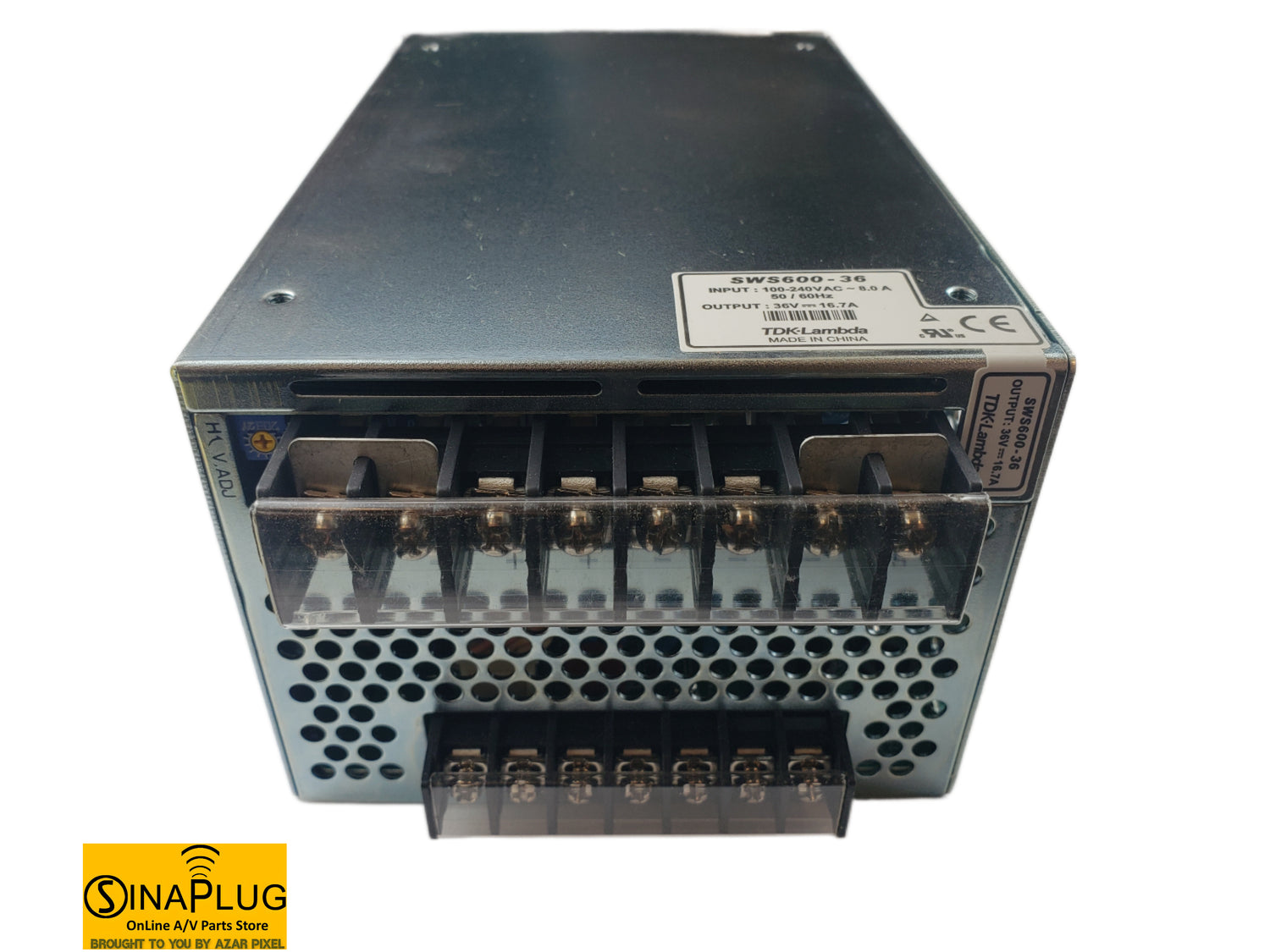

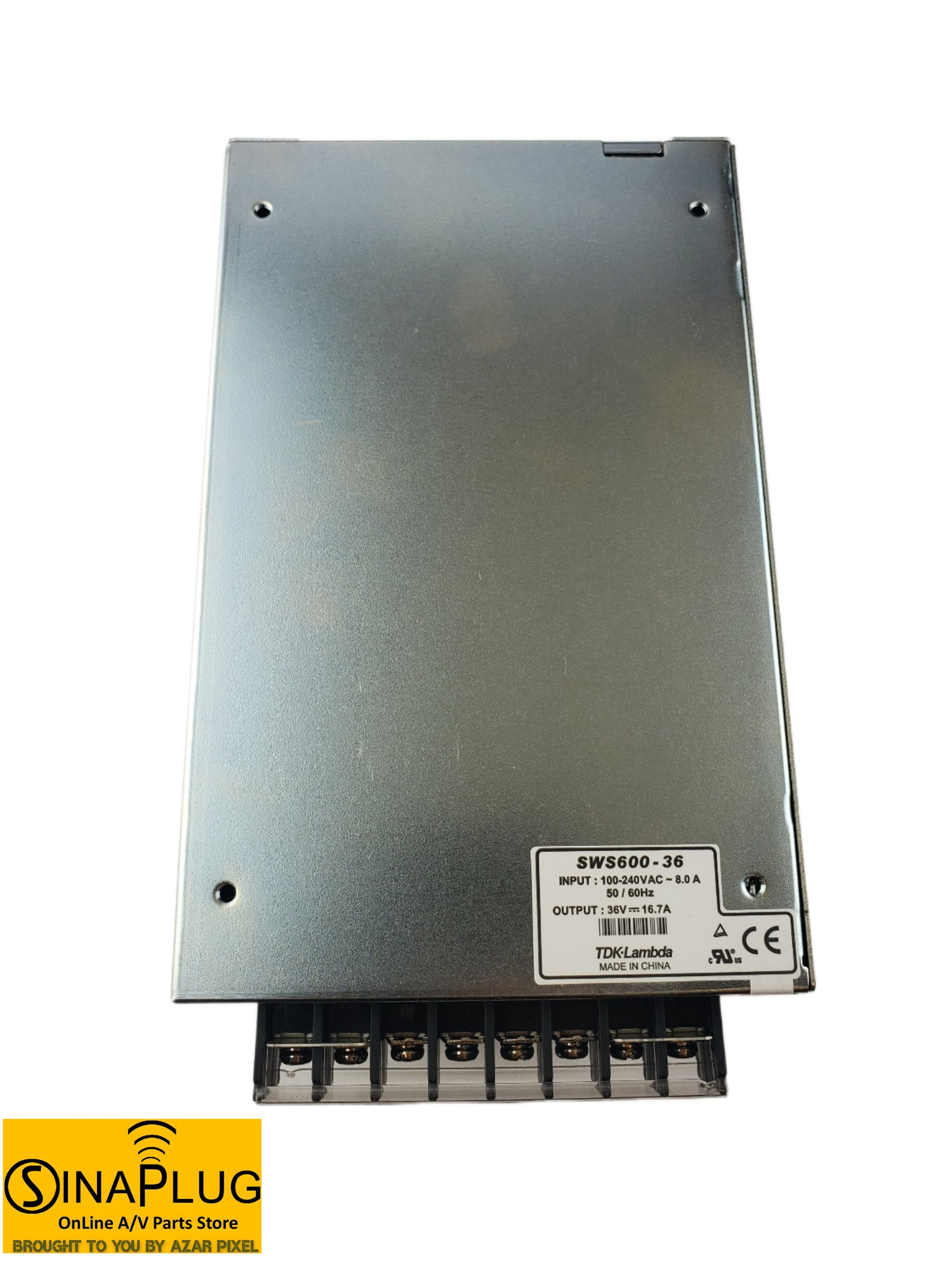

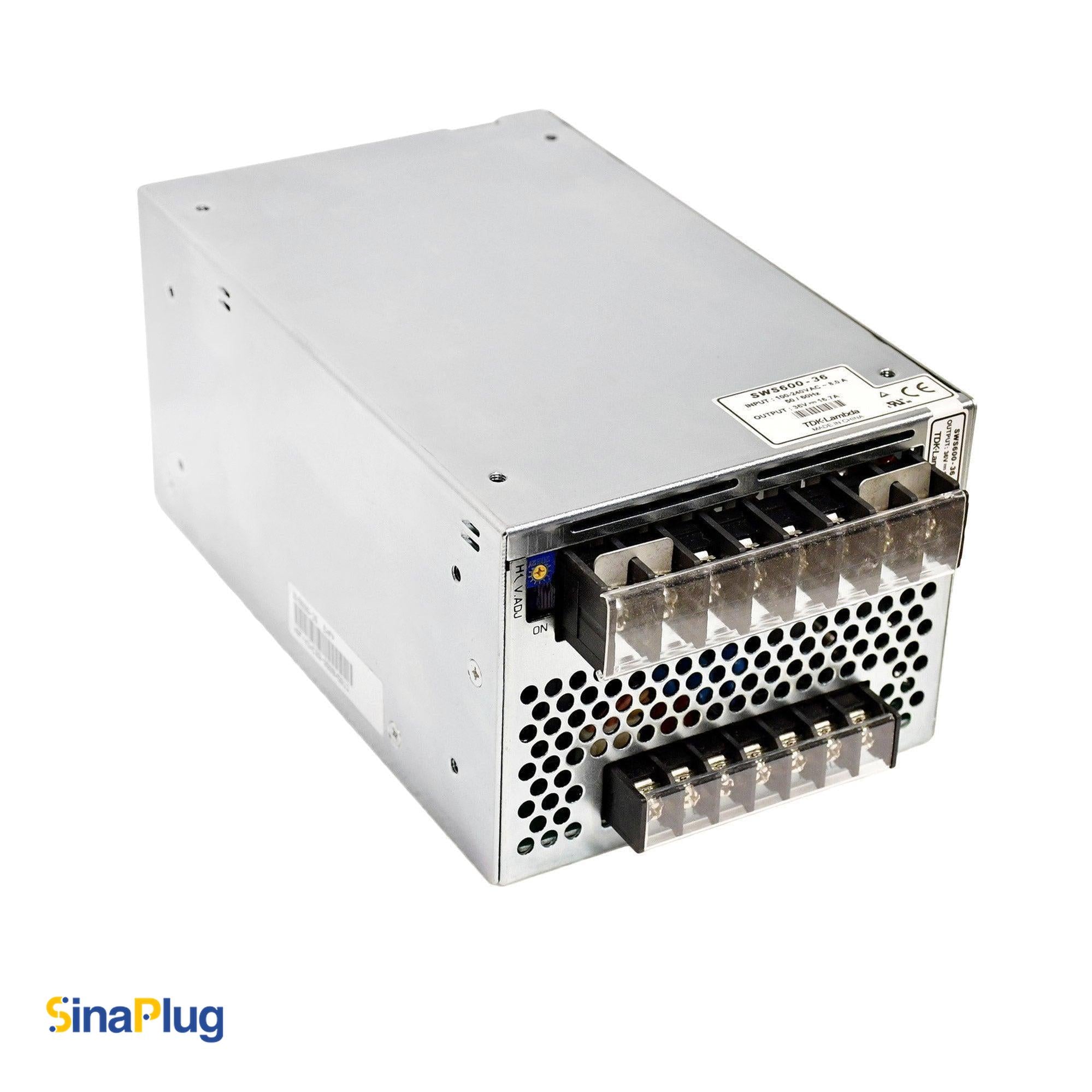

TDK.LAMBDA SWS600-36 Switching Power Supply (36V, 16.7A)

The TDK-Lambda SWS600-36 is a renowned, enclosed power supply ideal for A/V and LED equipment, especially industrial applications requiring reliable operation, thanks to its excellent ±0.5% load regulation. Additionally, it is certified by UL60950-1, EN61000-3-2, and EN61000-4-2, allowing it to satisfy global energy standards.

The SWS600-36 converts full-range 100-240 VAC inputs to three consistent 36V outputs with a wide 28.8-40V adjustable range, capable of providing up to 16.7A. It provides an enhanced rated 601.2W output power with a power factor harmonic correction feature (0.99 Power Factor), which increases overall efficiency (up to 81%) and reduces harmonic distortion.

TDK-Lambda's AC/DC power supplies are a leading brand for their high reliability and stable operation due to their flexibility in system design, complete protection functions, long lifespan, and anti-vibration capability, which ensures compatible performance in expected conditions, all at an affordable price.

The SWS600 series contains many significant features such as remote ON/OFF control, parallel and series operation, PF signal, remote sensing, remote programming operation, and advanced protections such as over-voltage, over-temperature protections, and constant current limiting overload protection (with automatic recovery).

This standard-sized power supply supports both series and parallel operation, allowing for current sharing and use of a backup power supply to offer redundancy, improve dependability, prevent thermal concerns, and increase system efficiency, all of which contribute to system stability and reliability.

The SWS600-36 contains a remote ON/OFF control feature that turns the power supply on and off without switching input voltage by controlling the voltage applied between TOG and CNT pins when using a relay or switch (ON<0.8V, OFF>4.5V).

 The PF signal indicates when the output voltage is below 80% of the rated value (when TOG and PF pins are connected). While the remote sense function compensates for voltage drops (less than 0.3V) from the output terminals to the load terminals (when two short pieces are mounted on the terminal strip or "+S" is connected to the "+" loads terminal and "-S" to the "-" loads terminal).

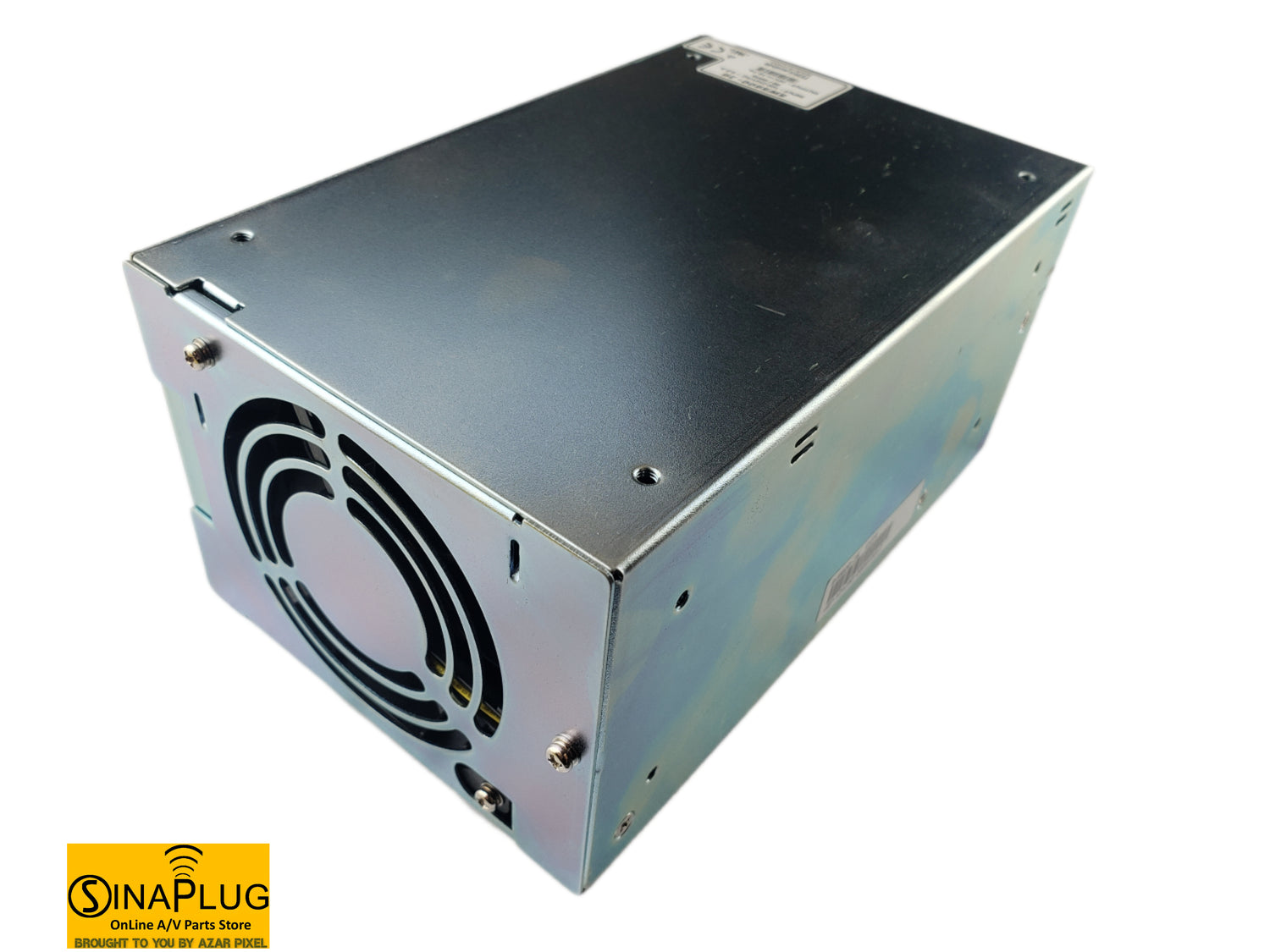

With a temperature coefficient of less than 0.02%/°C and an integrated fan design, this standard-sized SWS600-36 guarantees long-term operation performance in challenging environments and works smoothly in ambient temperatures ranging from -10°C to +65°C.
