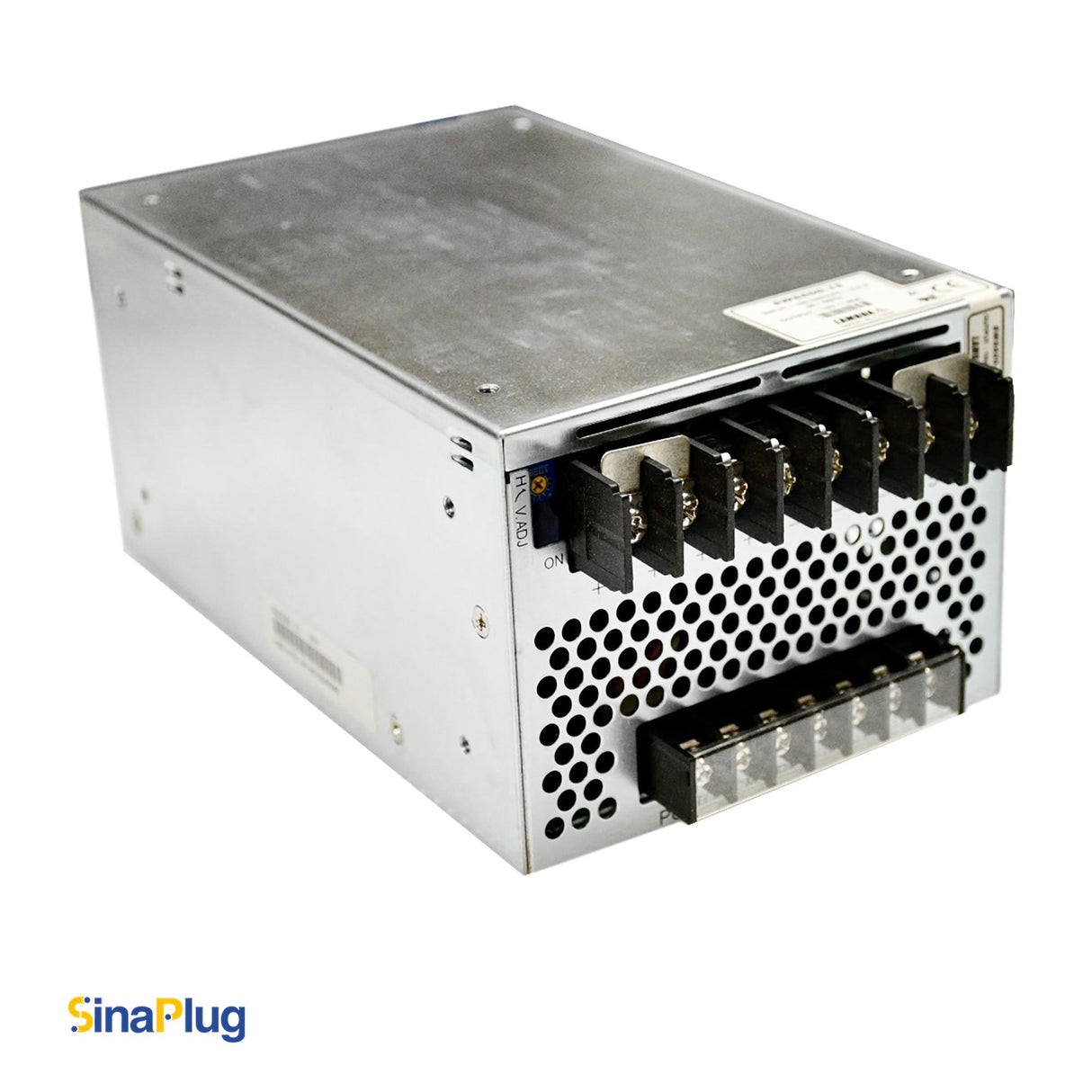

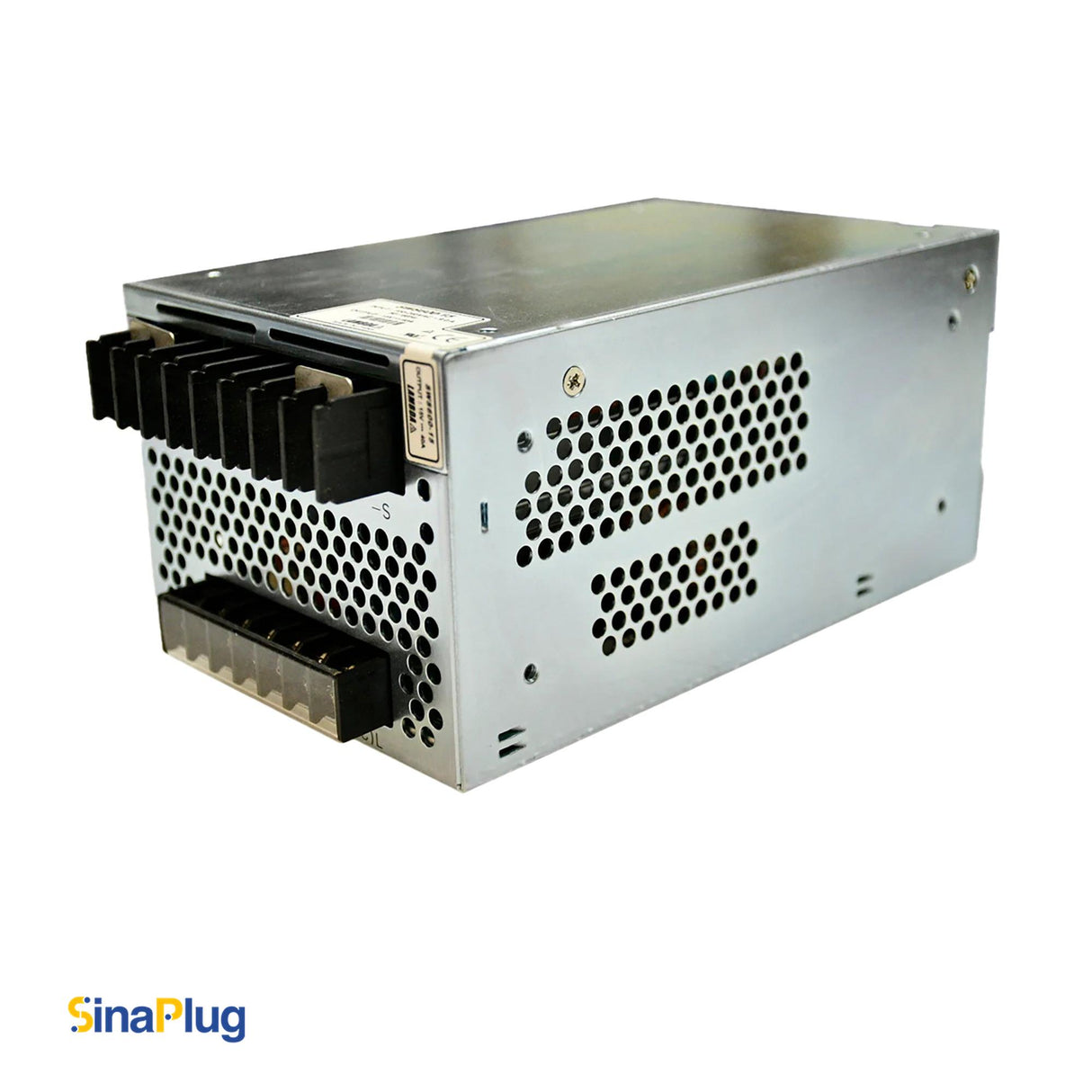

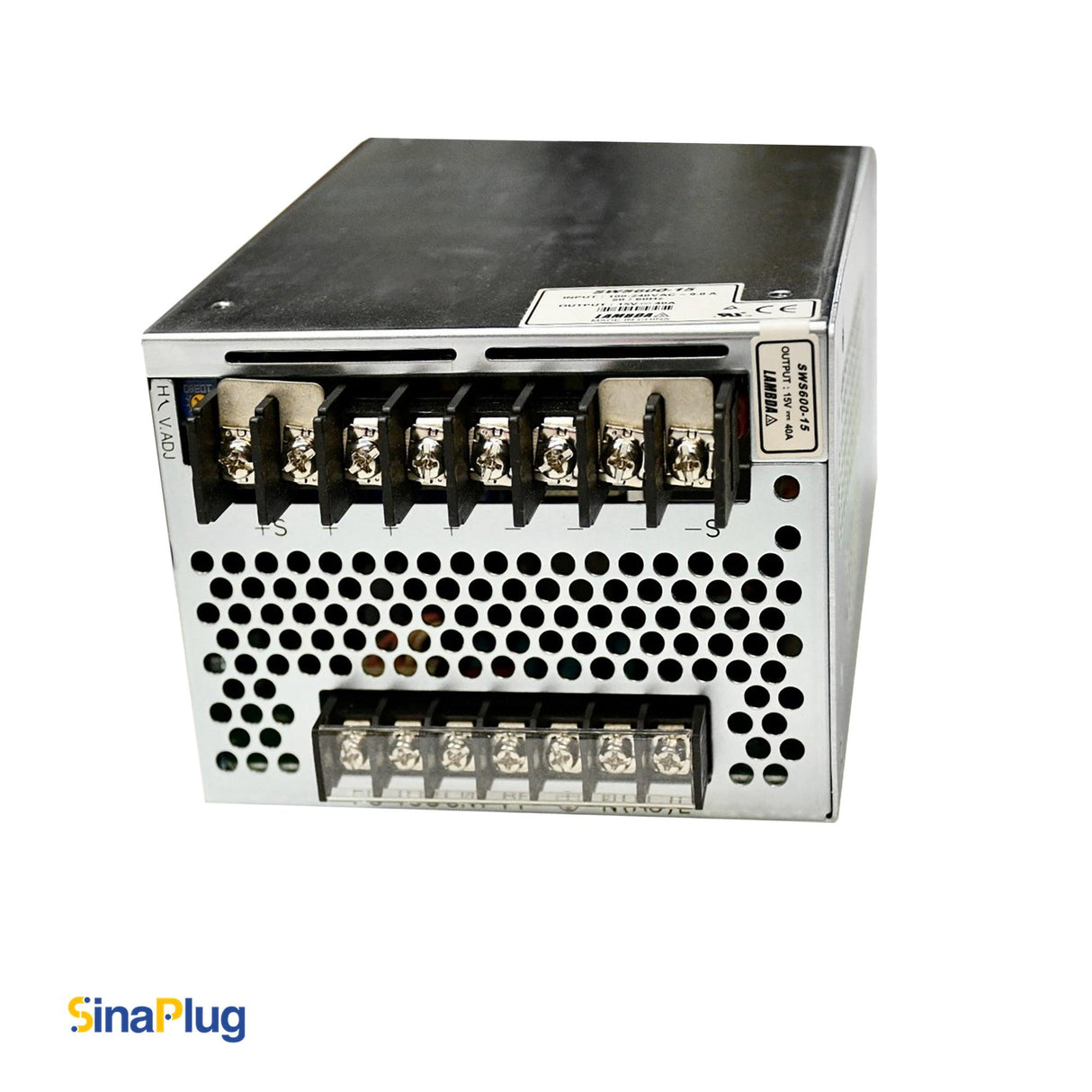

LAMBDA SWS600-15 Switching Power Supply 15V 40A

LAMBDA SWS600-15

Features:

-lower cost

-Active power factor correction

-Universal input(85-265VAC)

-Input transient protected IEC61000-4

-enclosed

-global safety approvals

-level B Emi

Key market segments and applications:   industrial, comm, Led, test.

Specifications:

• Input Voltage range (1): 85 - 265VAC (47 - 63Hz) or 120 - 370VDC
• Inrush Current (115 / 230VAC): 20 / 40
• Power Factor: Meets EN61000-3-2
• Input Current (100/200VAC): 7.2 / 3.6A
• Temperature Coefficient: <0.02%/°C
• Overcurrent Protection: >105%, Constant current style

• Overvoltage Protection: Yes, cycle AC to reset

• Overtemperature Protection: Yes, cycle AC to reset
• Hold Up Time (Typ): 20ms at 115/230VAC
• Leakage Current (max): SWS300: 0.75mA, SWS600: 1.5mA
• Remote Sense: yes
• Parallel Connection: yes
• Remote On/Off: yes
• AC Fail Signal: Yes, open collector output
• LED Indicator: Green LED = On
• Operating Temperature:  -10 to +65°C (See table for derating - model specific)
• Storage Temperature:  -30 to +85°C
• Humidity (non-condensing): 30 - 90% RH operating, 10 - 95%RH non-operating
• storage Humidity (non condensing): 10 - 95% RH
• Cooling: Internal fan
• Withstand Voltage: I/P to Grnd 2kVAC, I/P to O/P 3kVAC, O/P to Grnd 500VAC, O/P to CNT 100VAC for 1 min
• Isolation Resistance: >100M at 25°C & 70%RH, Output to Ground 500VDC

• Vibration (non-operating): 10 - 55Hz (sweep for 1 min)19.6m/s2
   constant X, Y, Z 1 hour each plane)

• Immunity: EN61000-4-2, -3, -4, -5, -6, -8, -11

• Safety Agency Approvals:  UL60950, CSA60950, EN60950, EN50178, CE Mark.

• Conducted & Radiated EMI: EN55011 / EN55022-B, FCC Class B

• Recommended EMI Filter: RSAN2010
• Weight (Typ): 2.116 lbs

• Size (WxHxD):  3.62 x 4.72 x 7.48''

Model selector:

-voltage:              15V

-Adjust range:    13.2-18 V

-Max Curr. (A):    40

-Load Reg (mv):  120

-Line Reg (mv):  48

-Ripple noise:    120

-Eff (3) (typ) %:   80/83

Derating:

At 50°C: 100 %

At 55°C:  85 %

At 60 °C:  70 %

At 65°C:  55 %
