Shangwen  |  SKU: CBL-CAT6UTPX-01

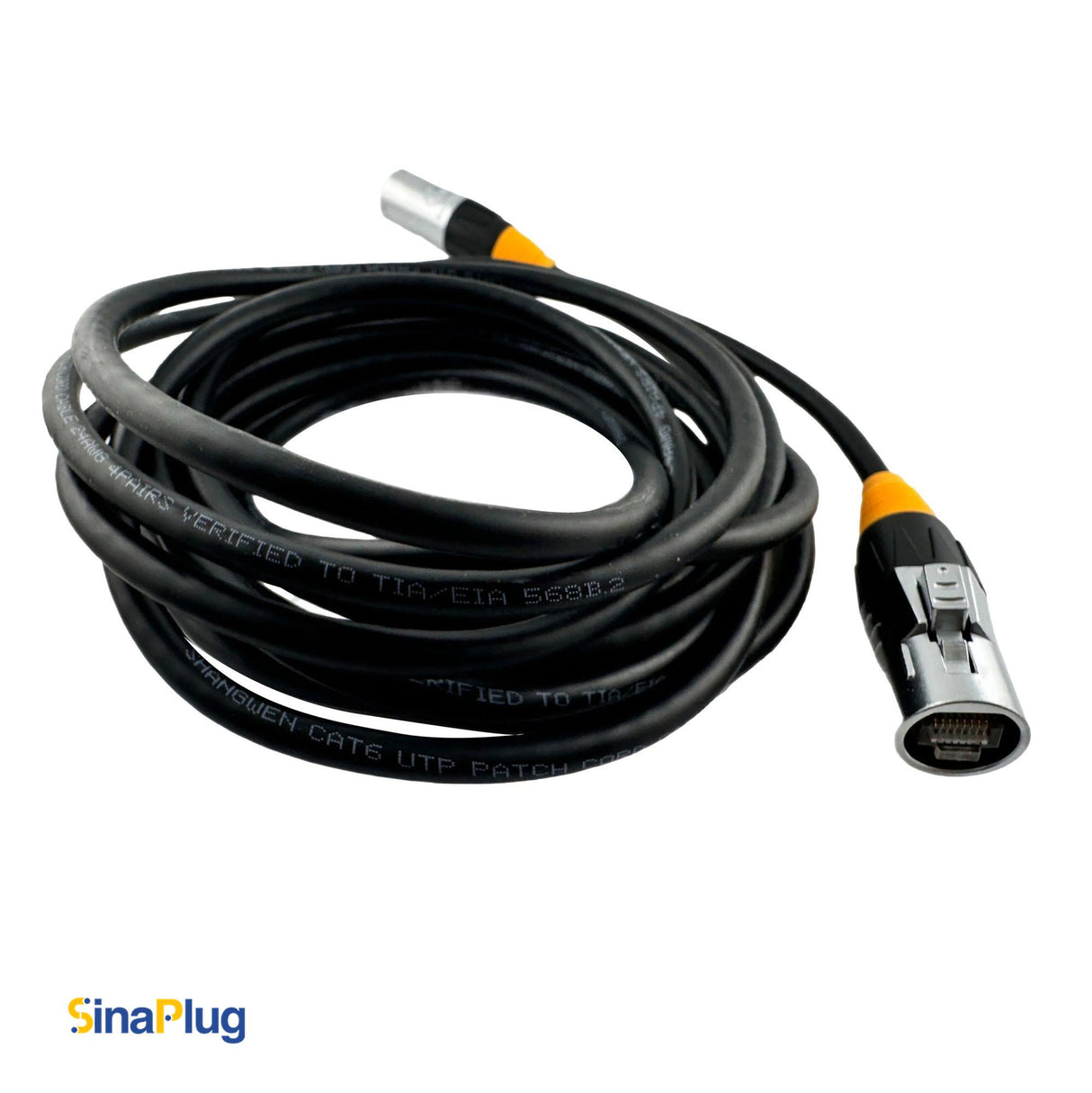

Outdoor CAT6 UTP Network Cable With SW8MC-03 Male on Both End, 15FT Long

$29.00

Documents

No files available.

Outdoor CAT6 UTP network cable with SW8MC-03 male on both end, 15ft long

Signal connector series-RJ45 connector（Metal button upgrade model）

Based on a safety lock on the basis of RJ45 connection, is widely used in professional audio, video, lighting and other network equipment.This product design comes from rocket, the appearance is fashionable and beautiful. The whole installation can be realized with the RJ45 base, especially for the thickness of the mounting panel without any limitation.

Type: RJ45 socket

Model Number: SW8MC-03

Gender: Male

Application: Ethernet

Model：SW8MC-03（outdoor use）
☑This RJ45 system is suitable for very harsh environments
☑The new lock design really realizes fast plug and pull, one hand operation, one action can unlock. Saves time compared with
traditional waterproof signal products.

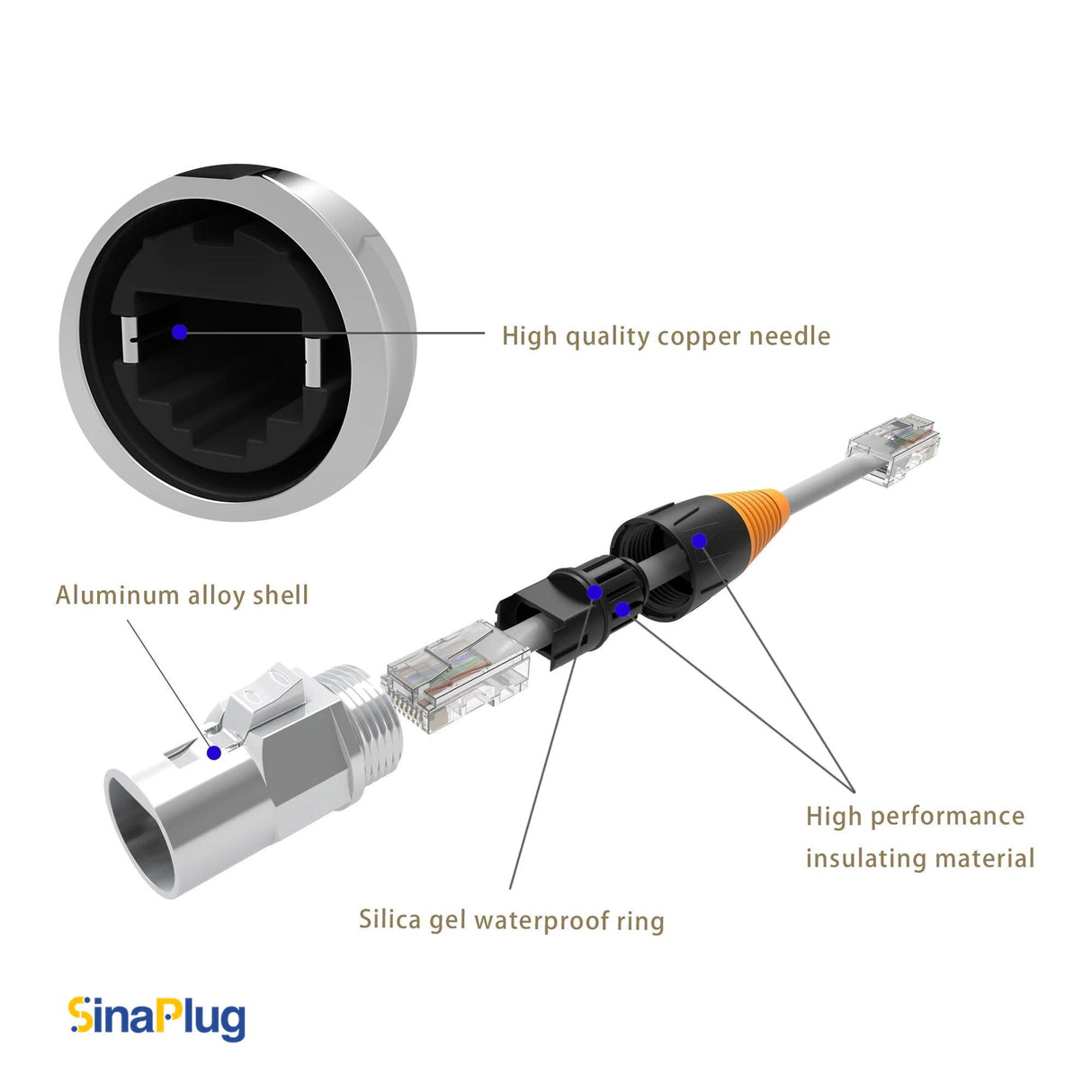

☑The lock is designed on the plug, and the internal design is a strong spring. Press the button to unlock it, even if the spring fails, it can be unlocked, which is more stable than traditional products.
☑In many commercial applications, protected RJ45 connections are designed to prevent damage to fragile components in the RJ45
standard connectors
☑It can reach IP65/IP67 protection level in coordination state

1. Mechanical parameters
Service life
＞1000 mating cycles
Insertion force
≤50 N
Wiring
5-7mm
Locking device
latch lock
2. Material and environmental parameters
Boot
Polyamide
Shell
Zinc diecast
Shell plating
Pearl Cr
Strain relief
Zinc diecast
Temperature range
-30℃to +80℃
