NovaStar  |  SKU: RCC-NOV-MRV3001xxx-0

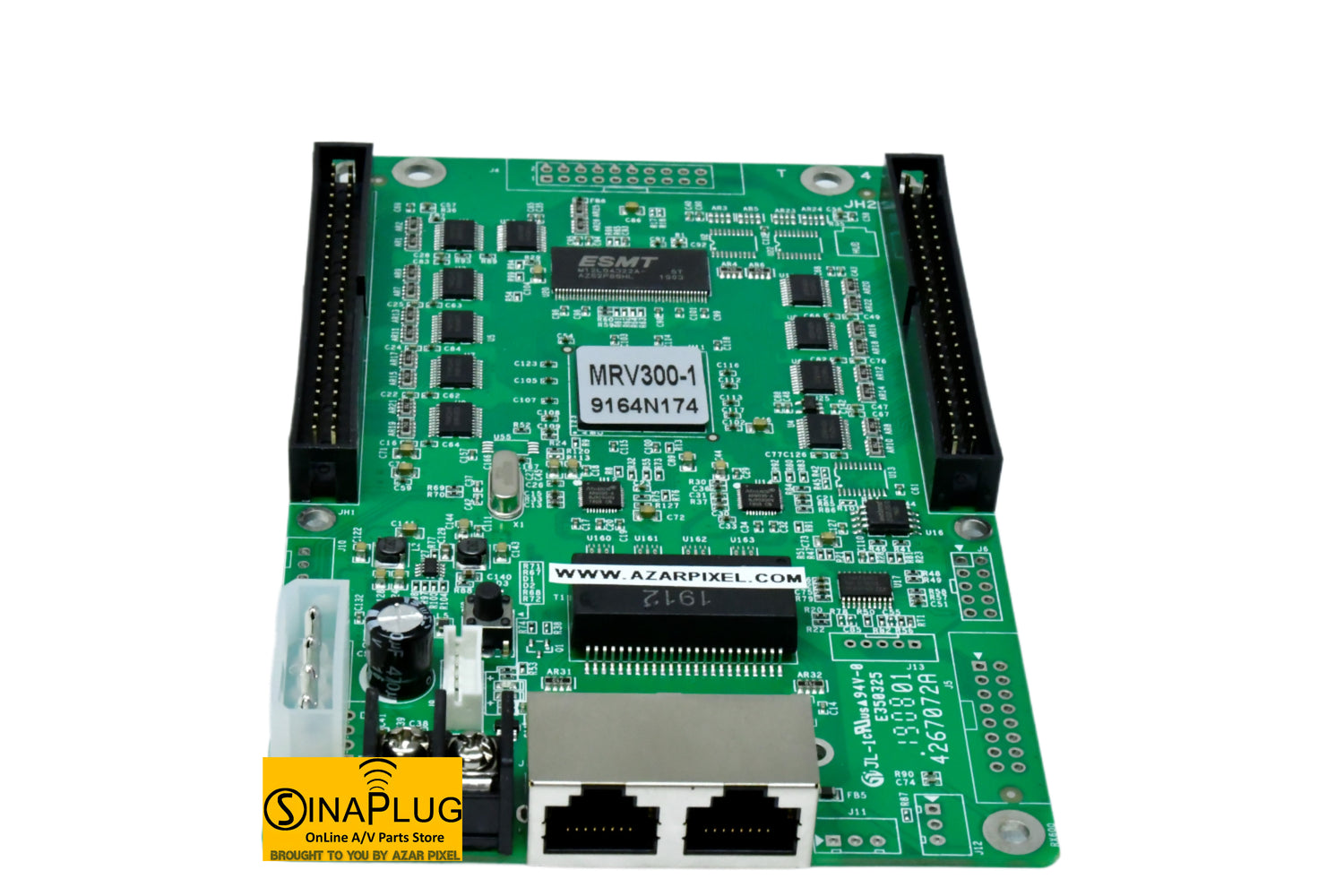

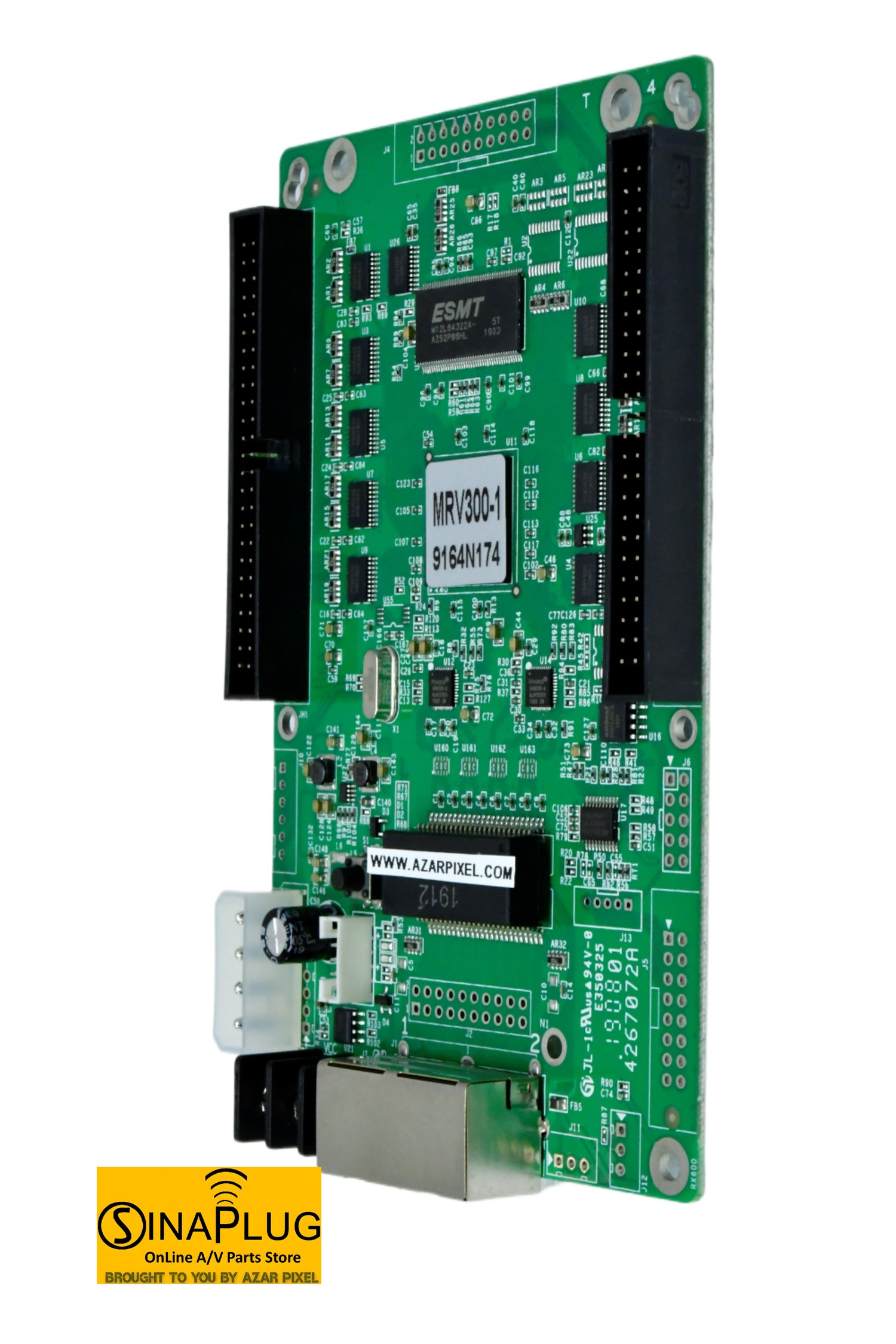

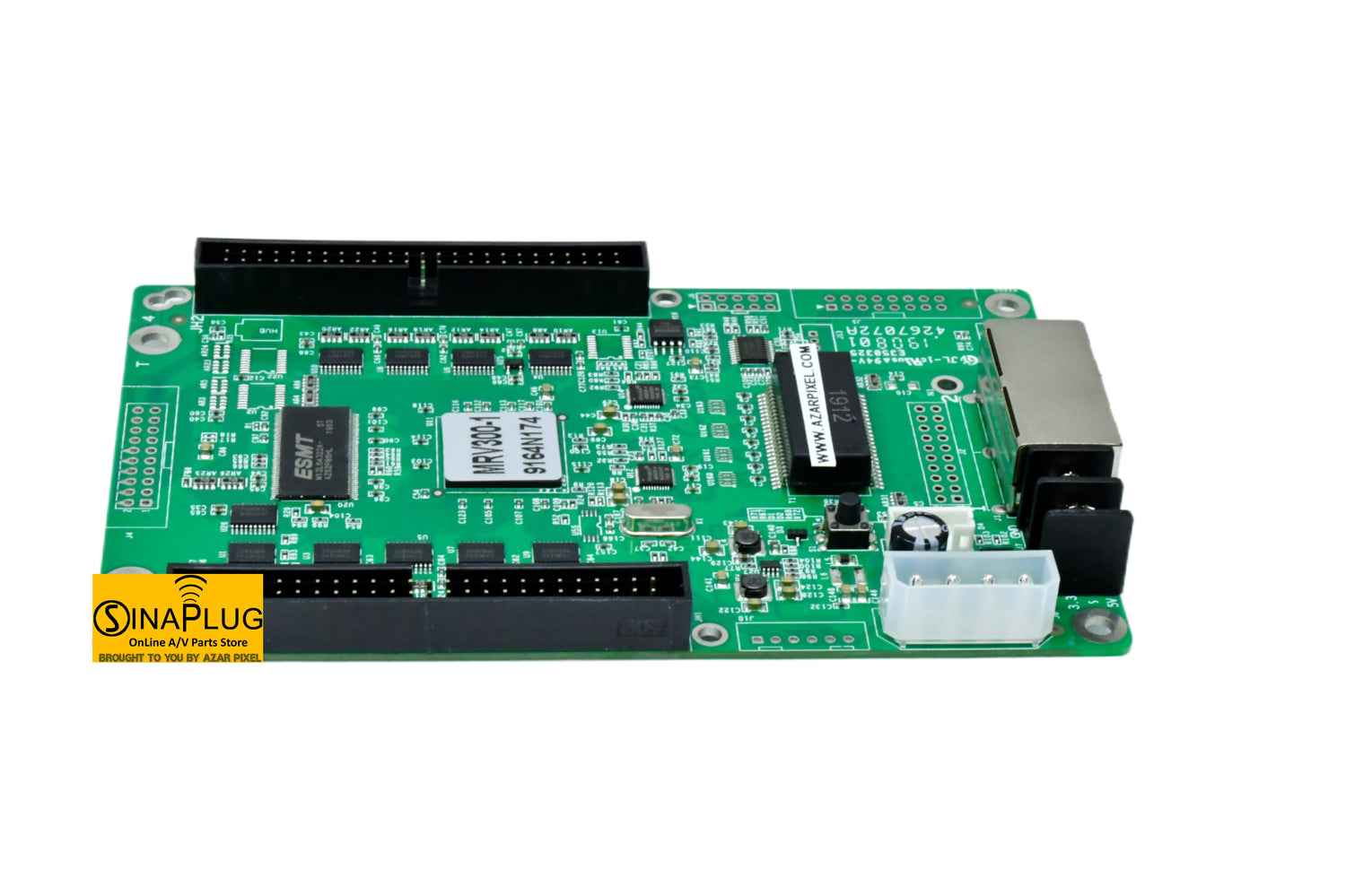

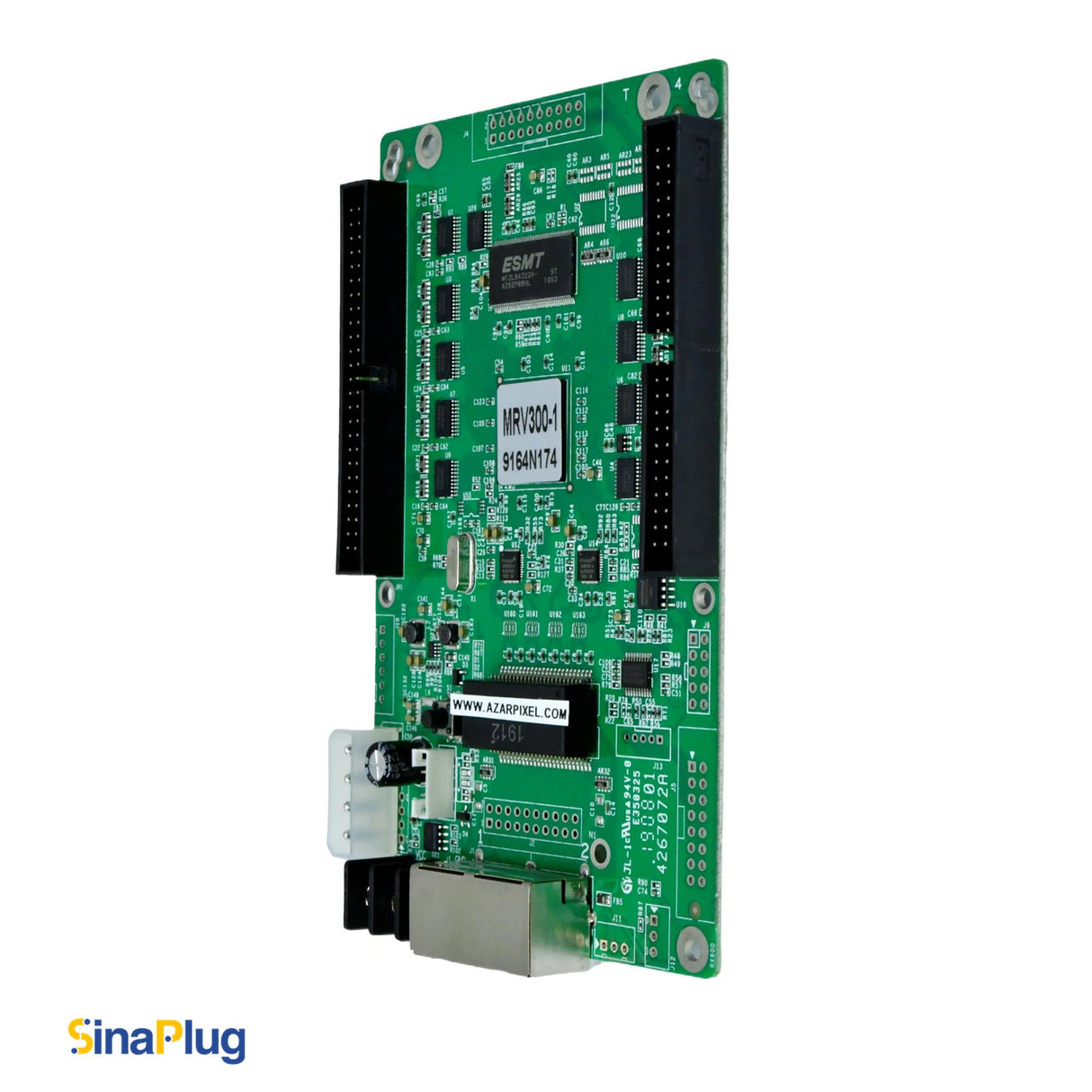

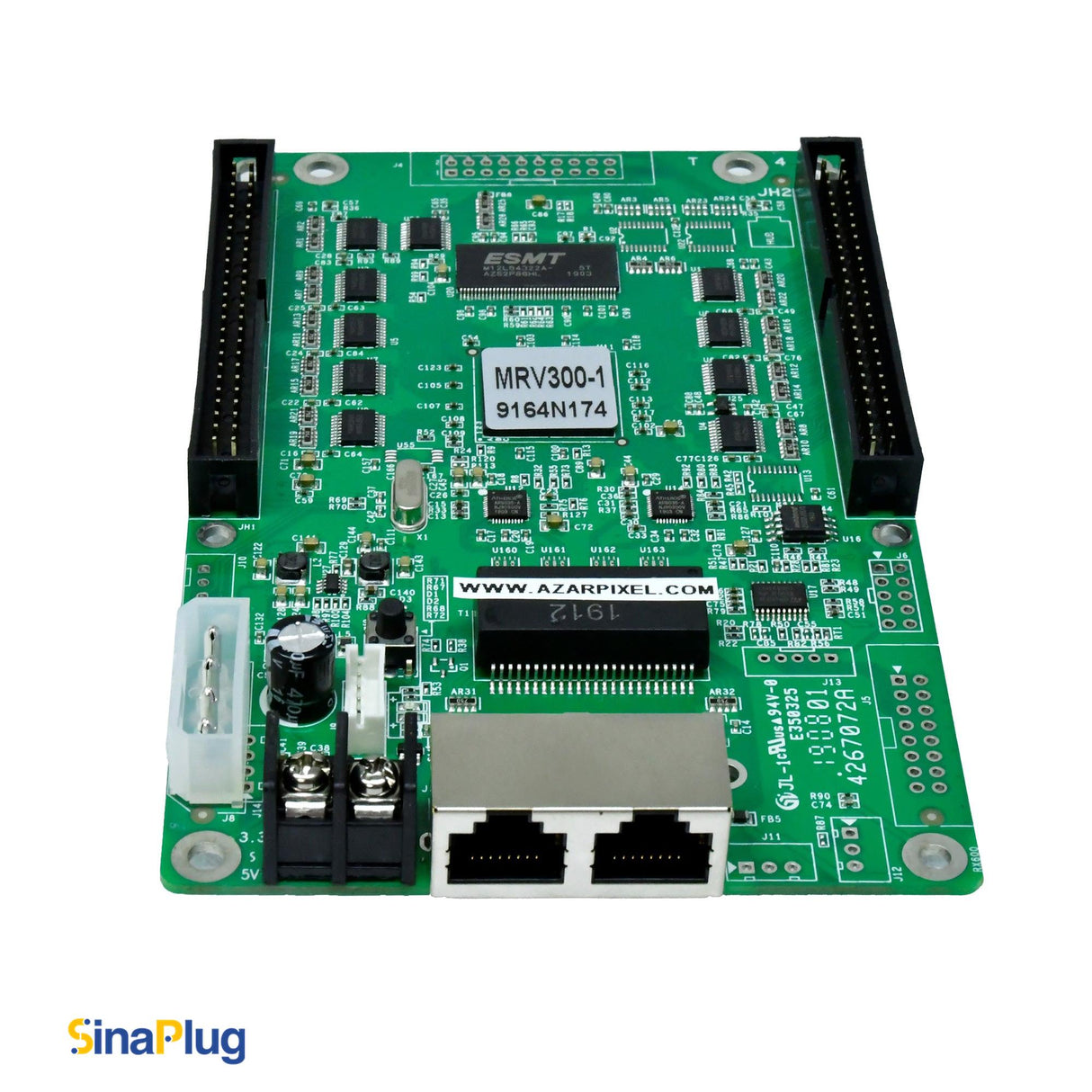

NovaStar MRV300-1 RECEIVING CARD

$35.00

Documents

No files available.

LED Modules, Displays & ProcessorsMRV300 is the standard model of Novastar receiving card.

Features
  • MRV300 has the following features:
  • Single card outputs 16-group of RGBR data
  • Single card outputs 20-group of RGB data
  • Single card outputs 64-group of serial data
  • Single card supports resolution of 256x226
  • Configuration file readback
  • Temperature monitoring
  • Ethernet cable communication status detection
  • Power supply voltage detection
  • pixel-by-pixel brightness and chromaticity calibration. Brightness and chromaticity calibration coefficients for each LED
  • Pre-store picture setting
  • Comply with EU RoHs standard; XI'AN
  • Comply with EU CE-EMC standard.

Dimensions

  • The thickness of the board is about 1.6mm. The overall thickness (board thickness+ thickness of the components on the front and backside) is about 18.5mm.



Specification

Loading Capacity

  • 256*256 PIXELS
Specific Model List
  • To meet the needs of different customers, Nova has provided more specific models of the products, including standard products in stock. Other models need to be customized.
MRV300－1
  • Standard model, male connector on top

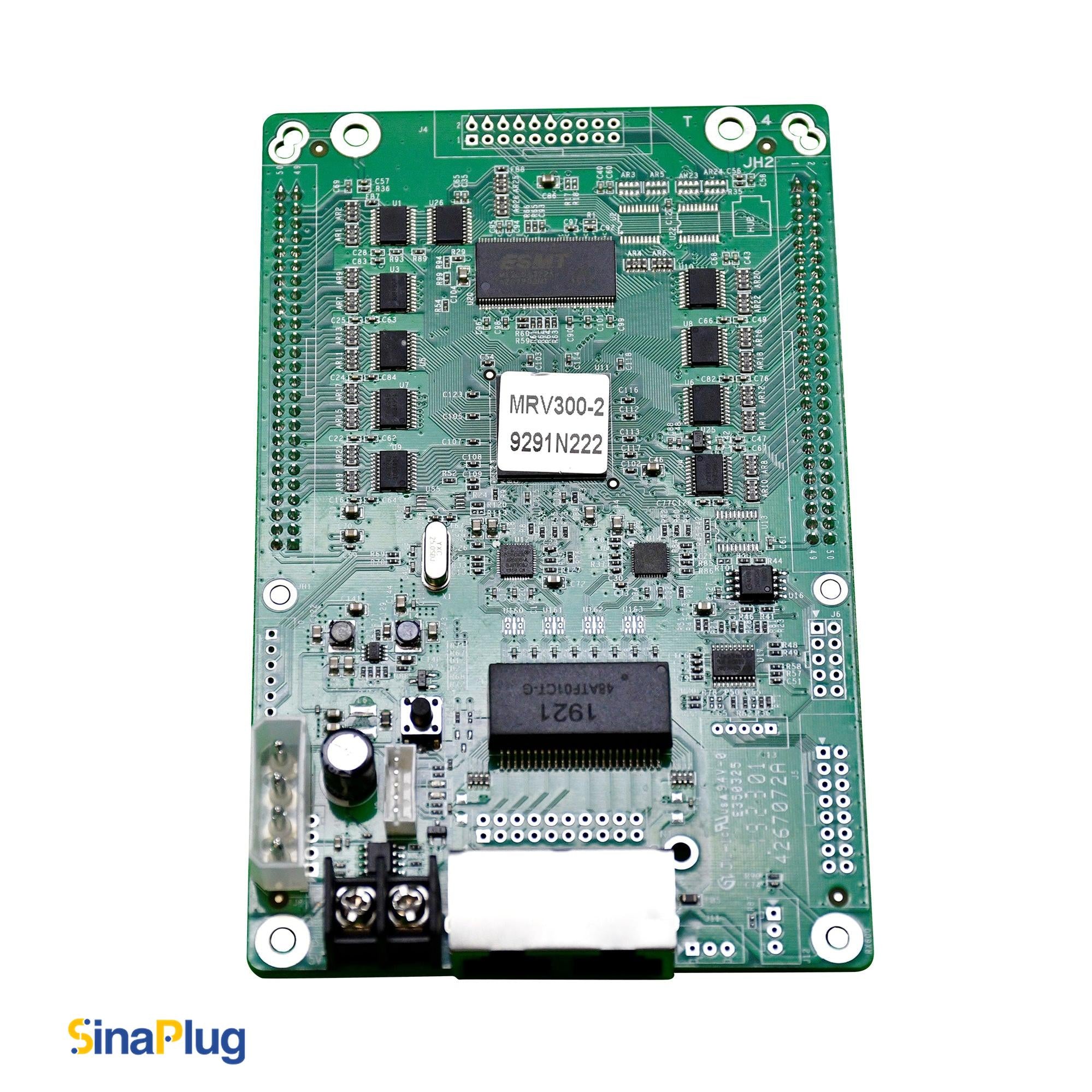

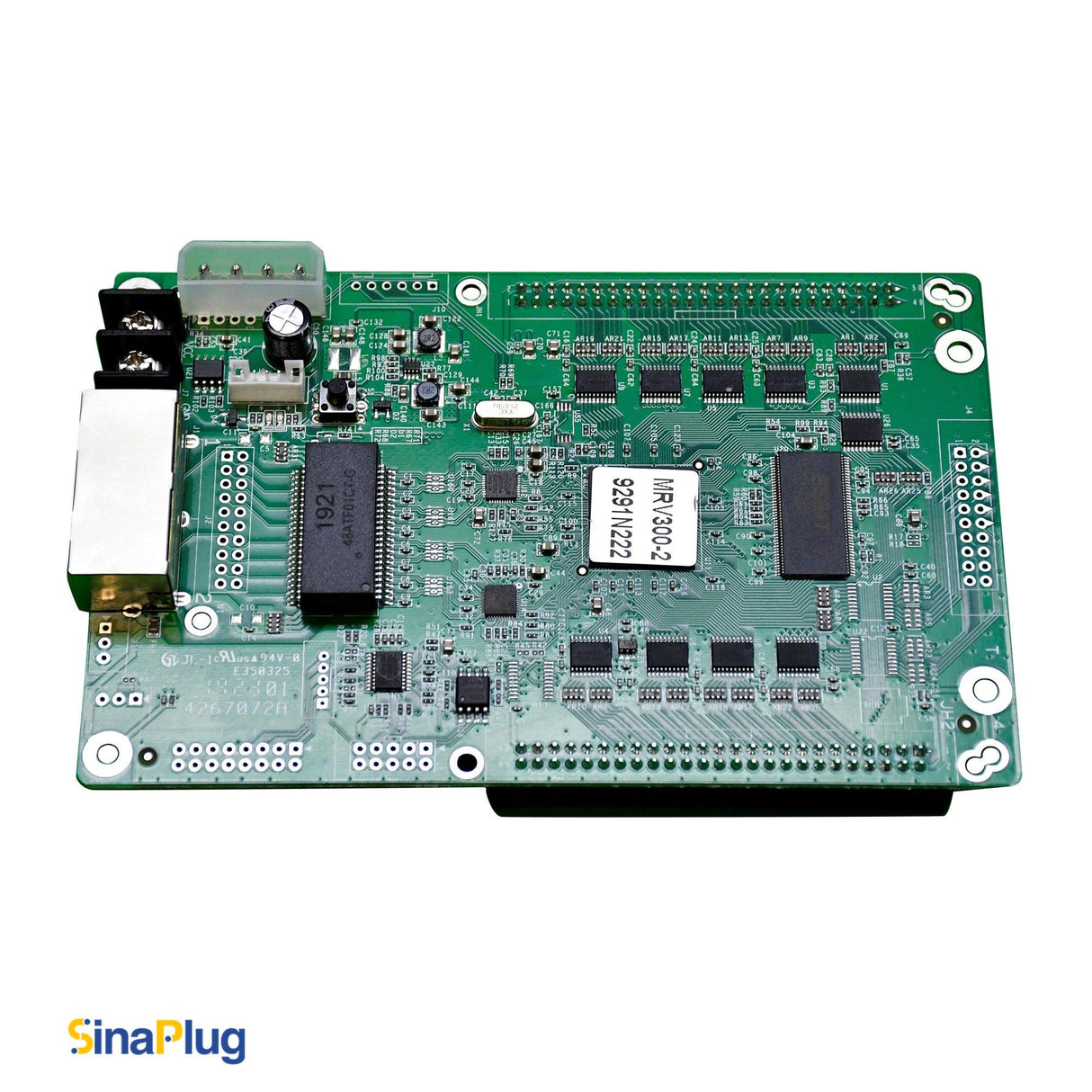

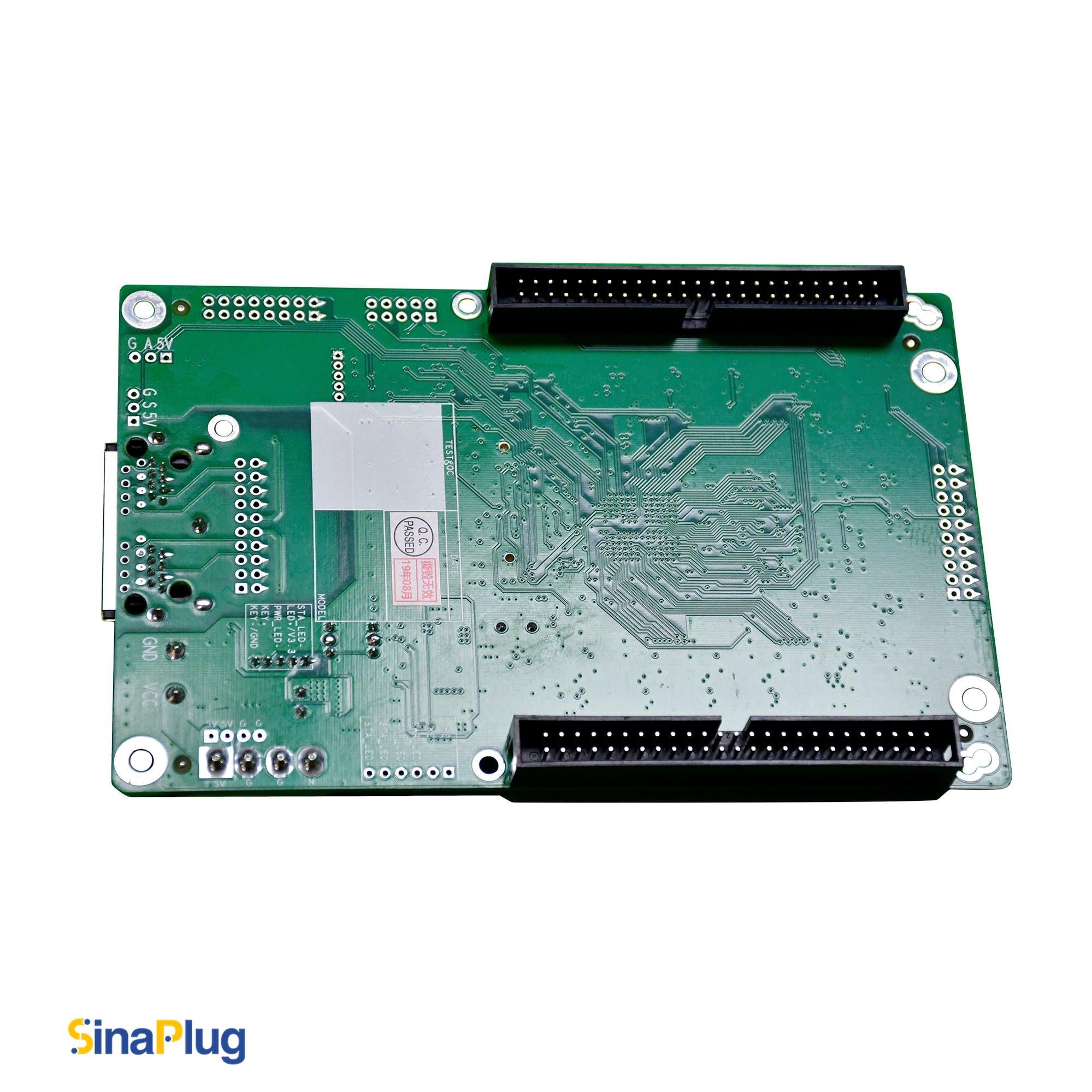

MRV300－2
  • Male connector on bottom
MRV300－3
  • Female connector on top
MRV300－4
  • Female connector on bottom
