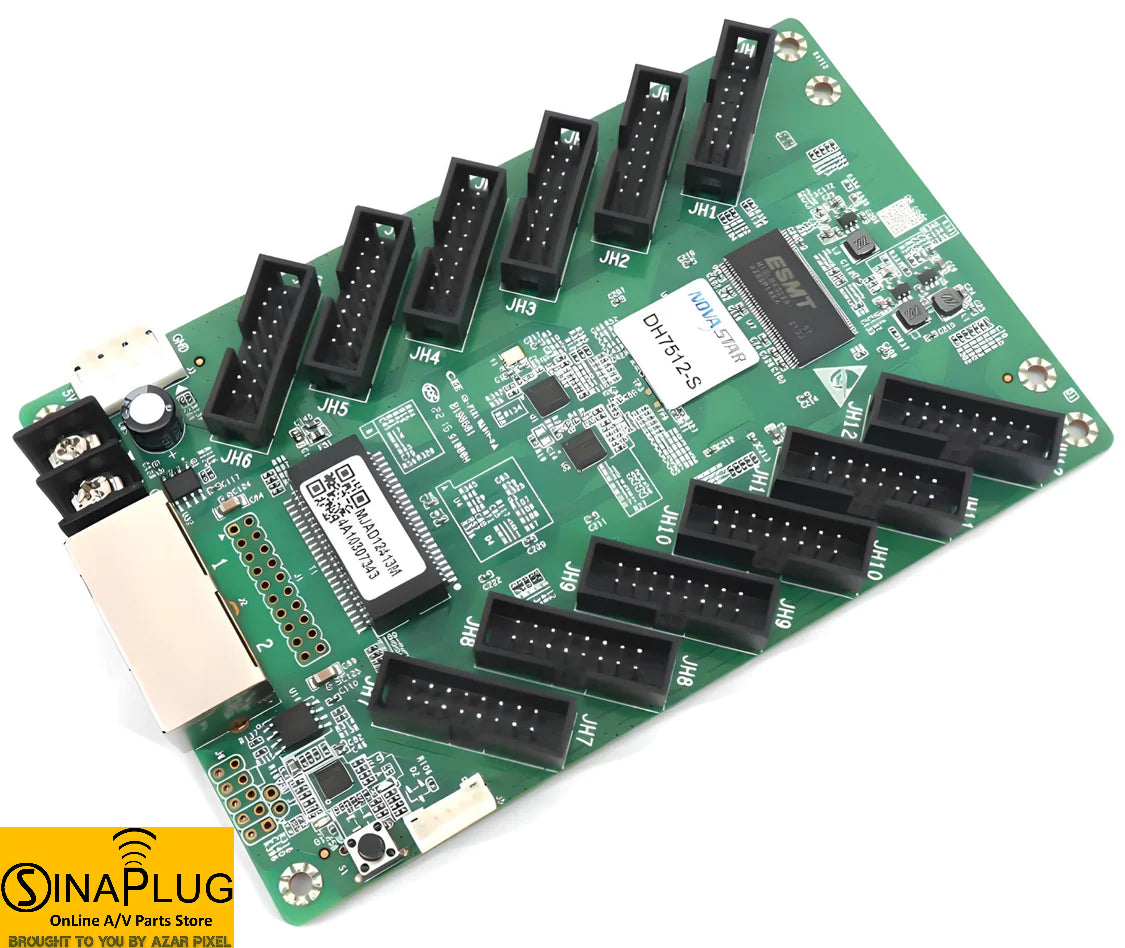

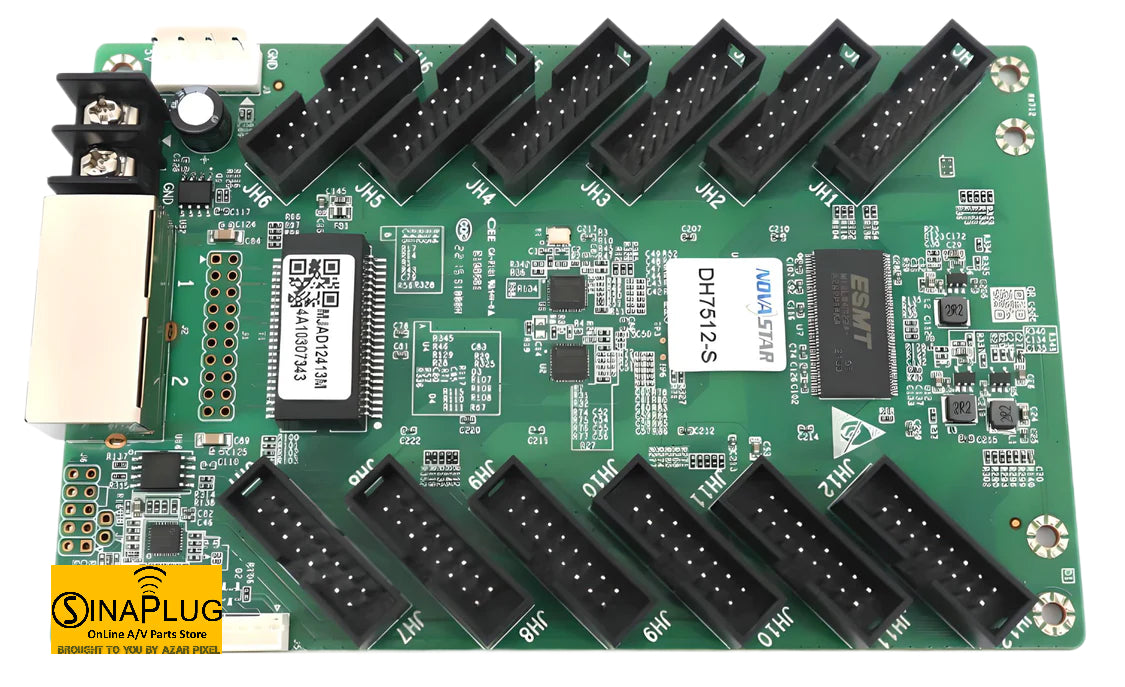

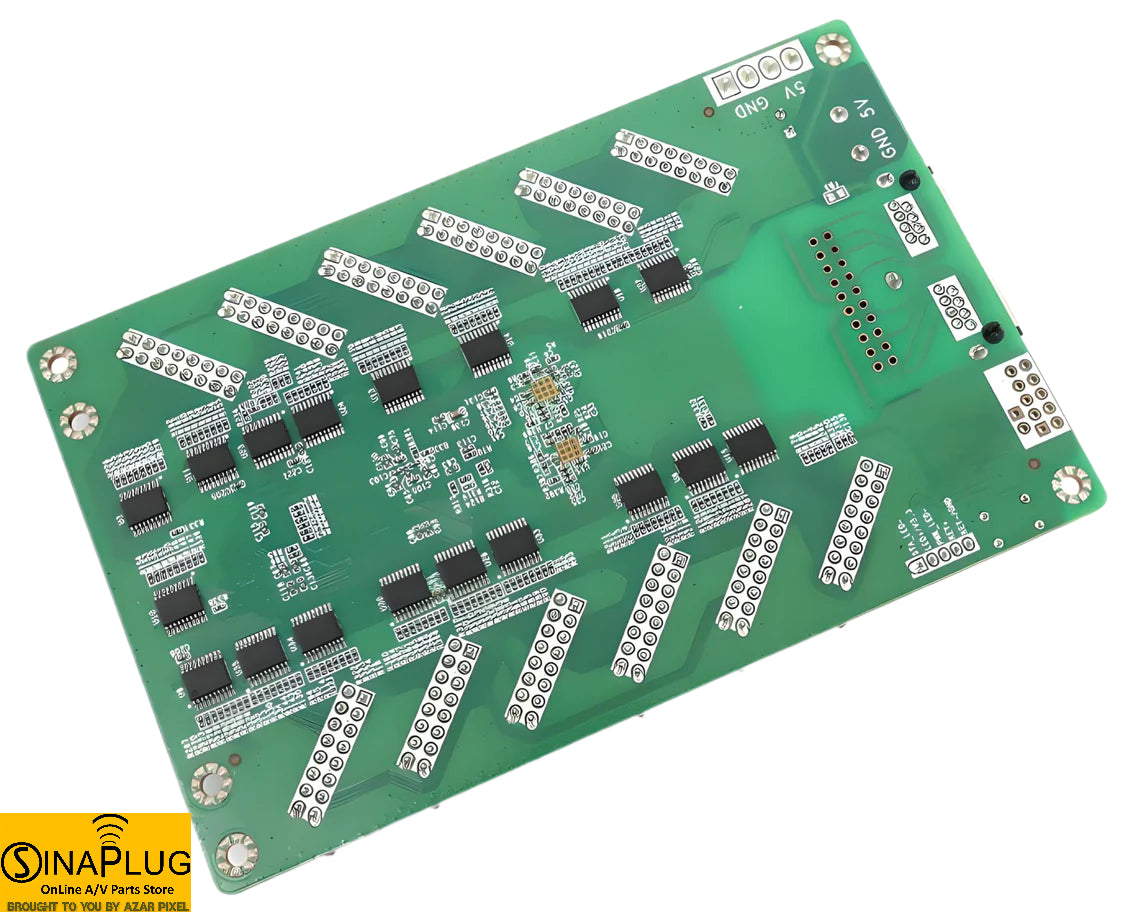

Novastar DH7512-S LED Screen Receiving Card 512x512 Pixels

The Novastar DH7512-S is a high-performance LED receiving card designed to deliver exceptional display quality and user experience. This versatile card serves as a general-purpose receiver for NovaLCT systems, offering advanced features and improved efficiency.

Key Features:

High Pixel Capacity: Capable of handling up to 512x512 pixels, effectively replacing the MRV336 on a single card.

Compatibility: Requires NovaLCT version 5.3.1 or above for optimal performance.

Advanced Display Technologies:

• Color management
• 18Bit+ support
• Point-by-point brightness and chroma correction
• RGB independent Gamma adjustment
• 3D display capabilities

Enhanced Communication: Features 12 standard HUB75E interfaces, supporting up to 24 groups of RGB parallel data.

User-Centric Design: Hardware and software optimized for easy deployment, stable operation, and efficient maintenance.

Benefits:

• Improved Display Quality: Advanced color management and correction features ensure superior visual output.
• Streamlined Operations: Designed with user scenarios in mind, facilitating easier deployment and maintenance.
• Versatility: Suitable for a wide range of LED display applications, offering both performance and cost-effectiveness.

The Novastar DH7512-S represents a significant advancement in LED receiving card technology, combining high performance with user-friendly features to meet the demands of modern display systems.

• 12 Ports, 24 RGB Parallel Data Group, up to 512x512 pixels
• Replace Novastar MRV336
• Color Management
• 18Bit+
• Point-by-point brightness and chromaticity correction
• Quick bright and dark line adjustment
• 3D function
• RGB independent Gamma adjustment
• The screen rotates in multiples of 90°
• Mapping function
• Pre-stored screen settings
• Temperature and voltage monitoring
• Cabinet LCD display
• Error detection
• Firmware program readback
• Configuration parameter readback
• Loop backup
• Dual backup of configuration parameters
• Dual program backup
• Input voltage: DC 3.3v-5.5v,
• Constant current: 0.5A
• Rated power: 2.5W
• Consumption temperature: – 20℃- + 70℃
• Humidity: 10%RH-90%RH, non condensing
• Temperature: – 25 ℃ – + 125 ℃
• Size: 91.5mm x 145.7mm x 18.4mm
• Weight: 93g
