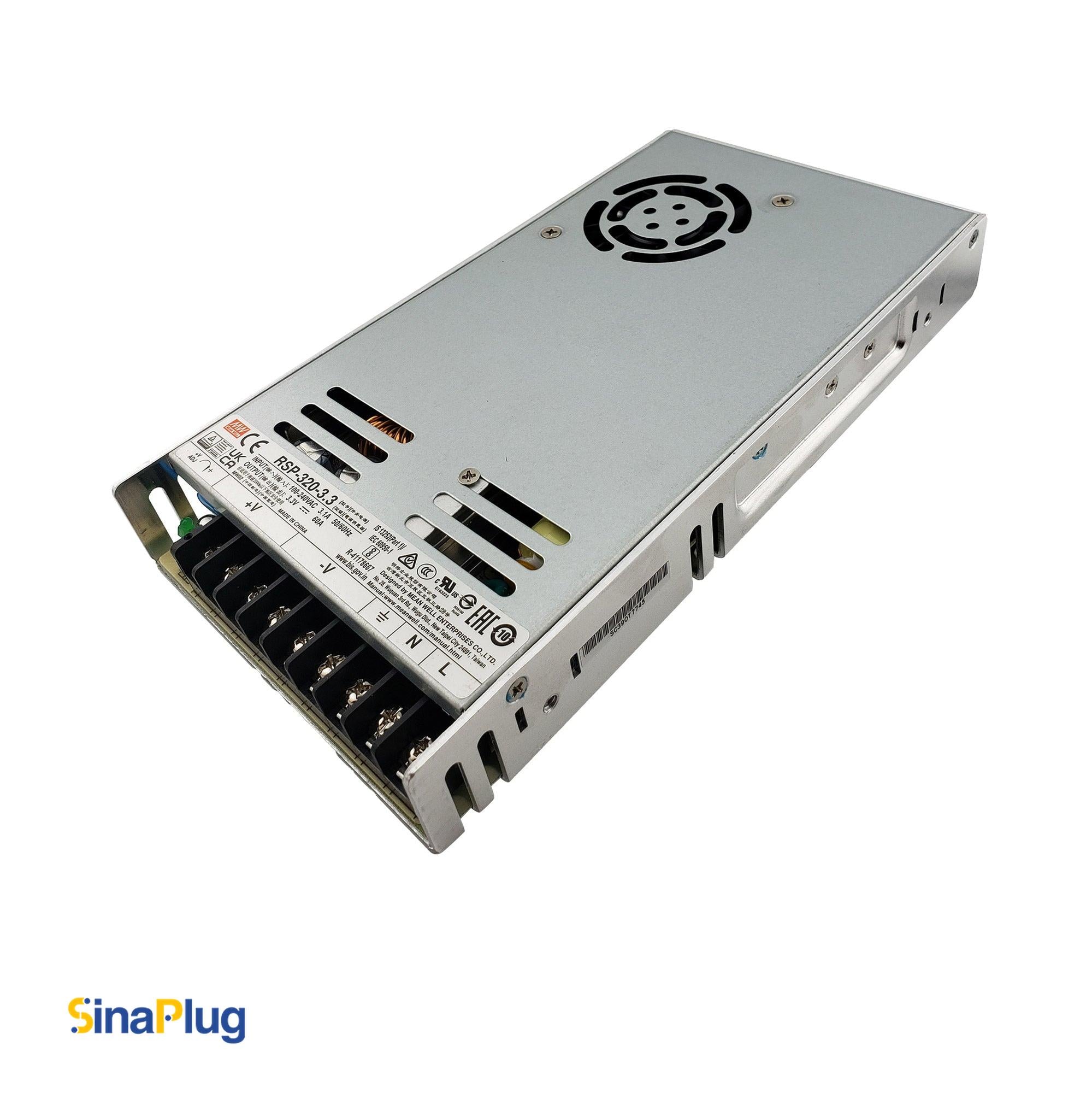

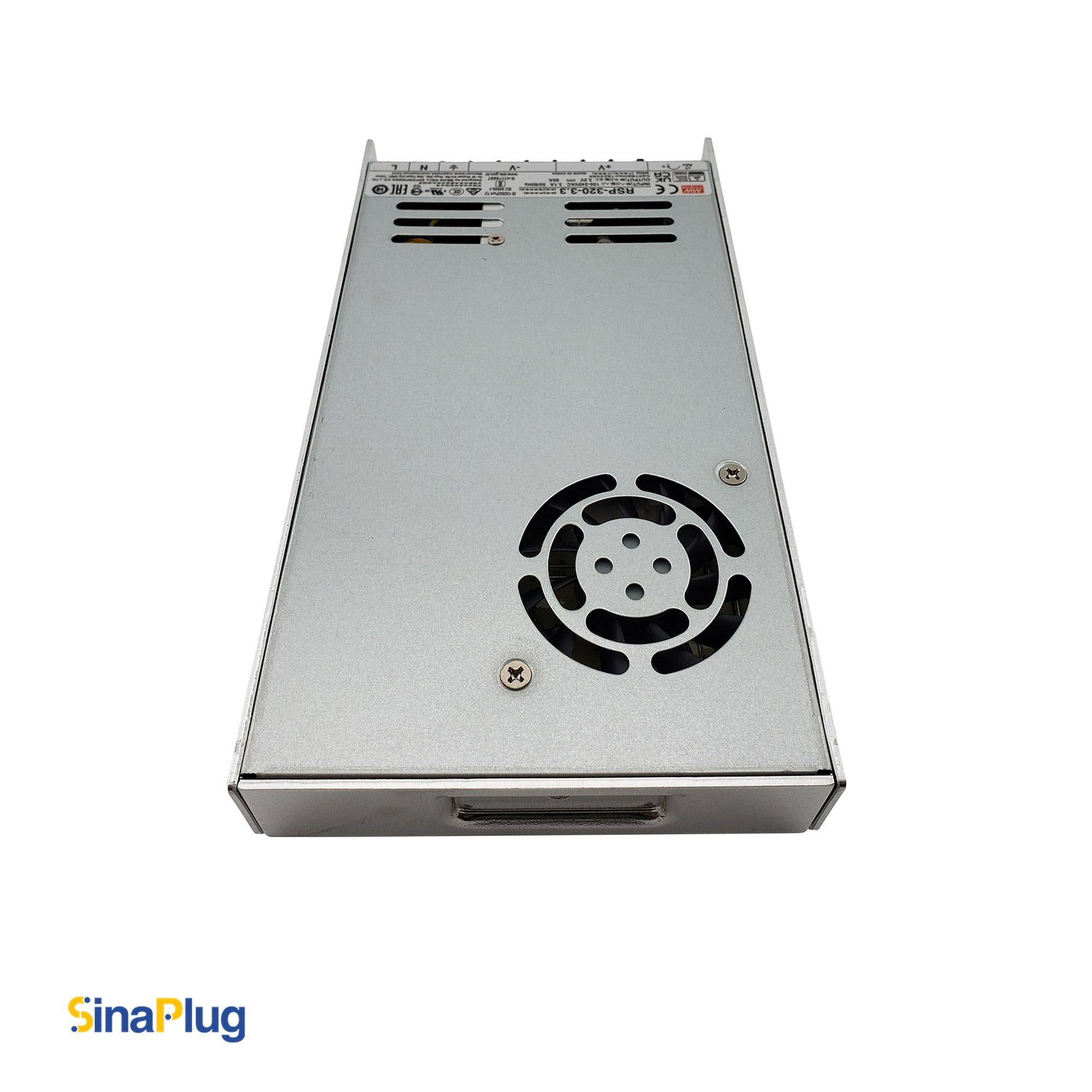

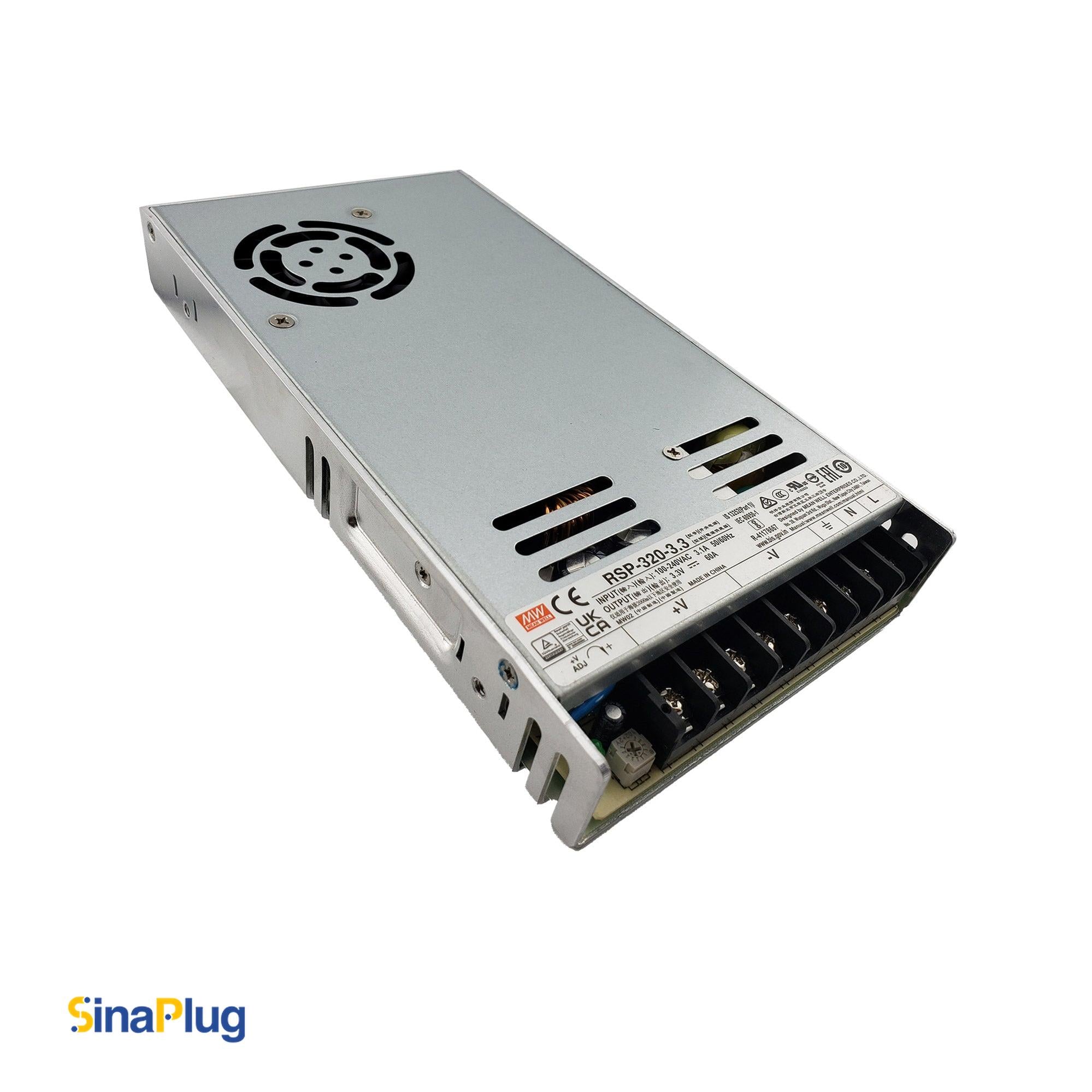

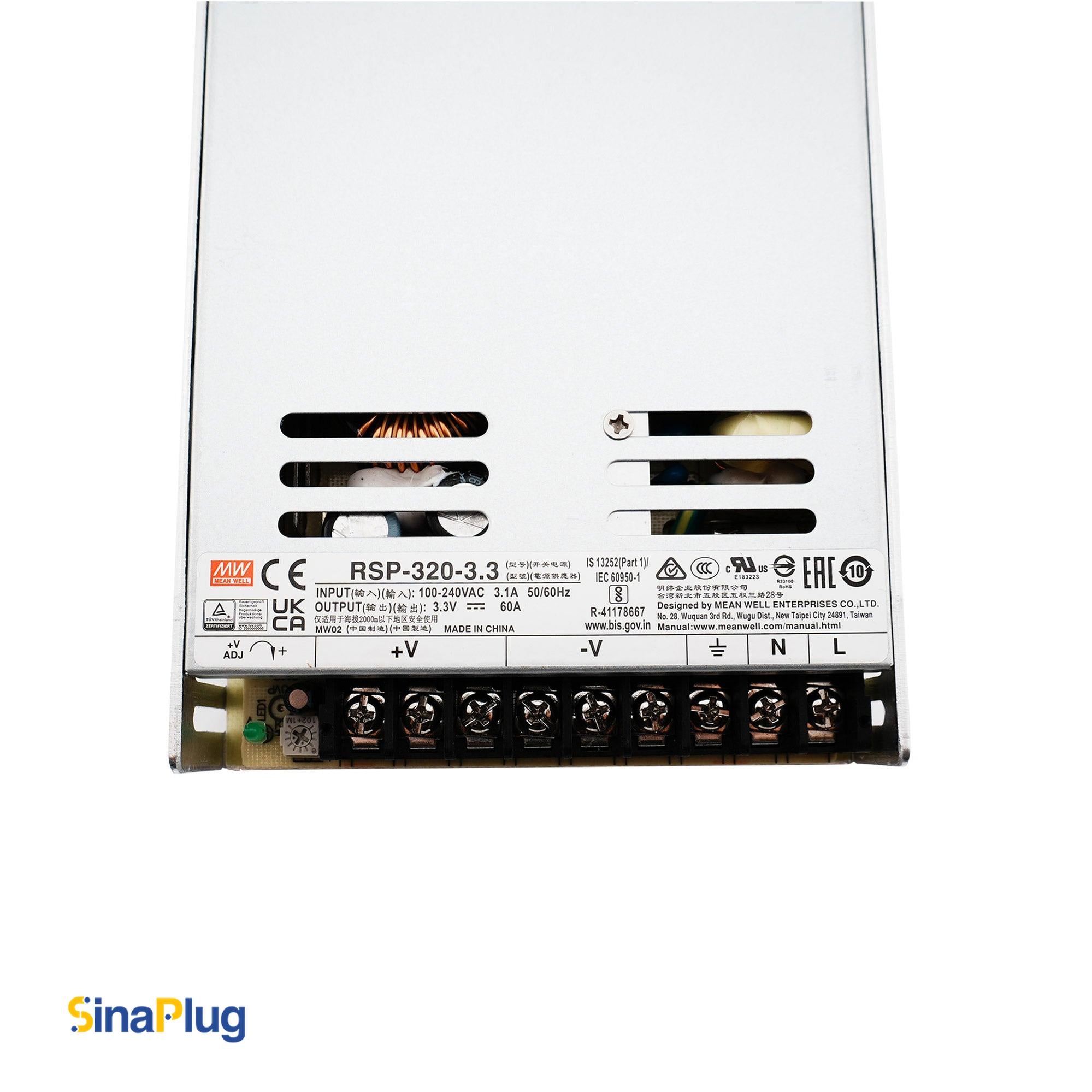

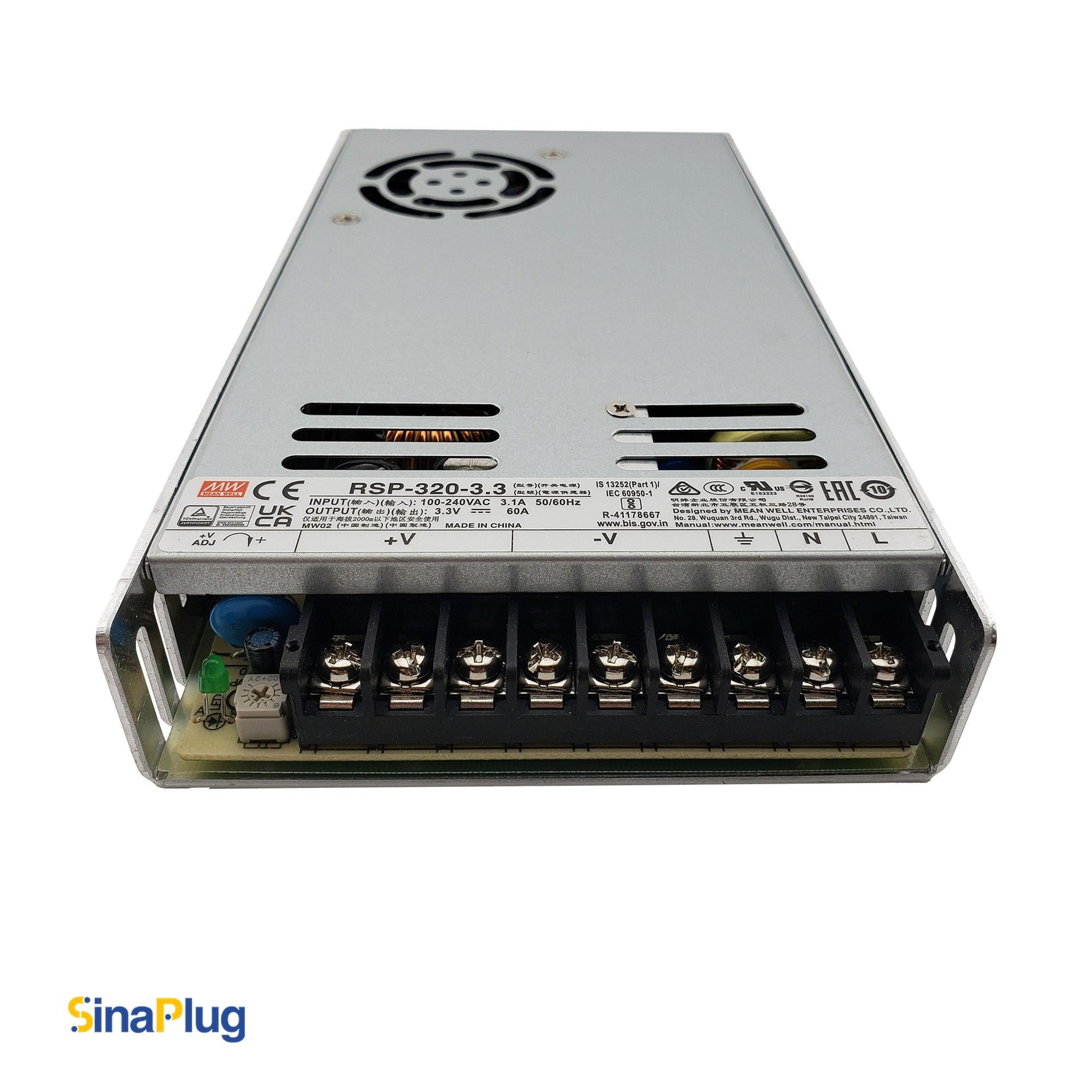

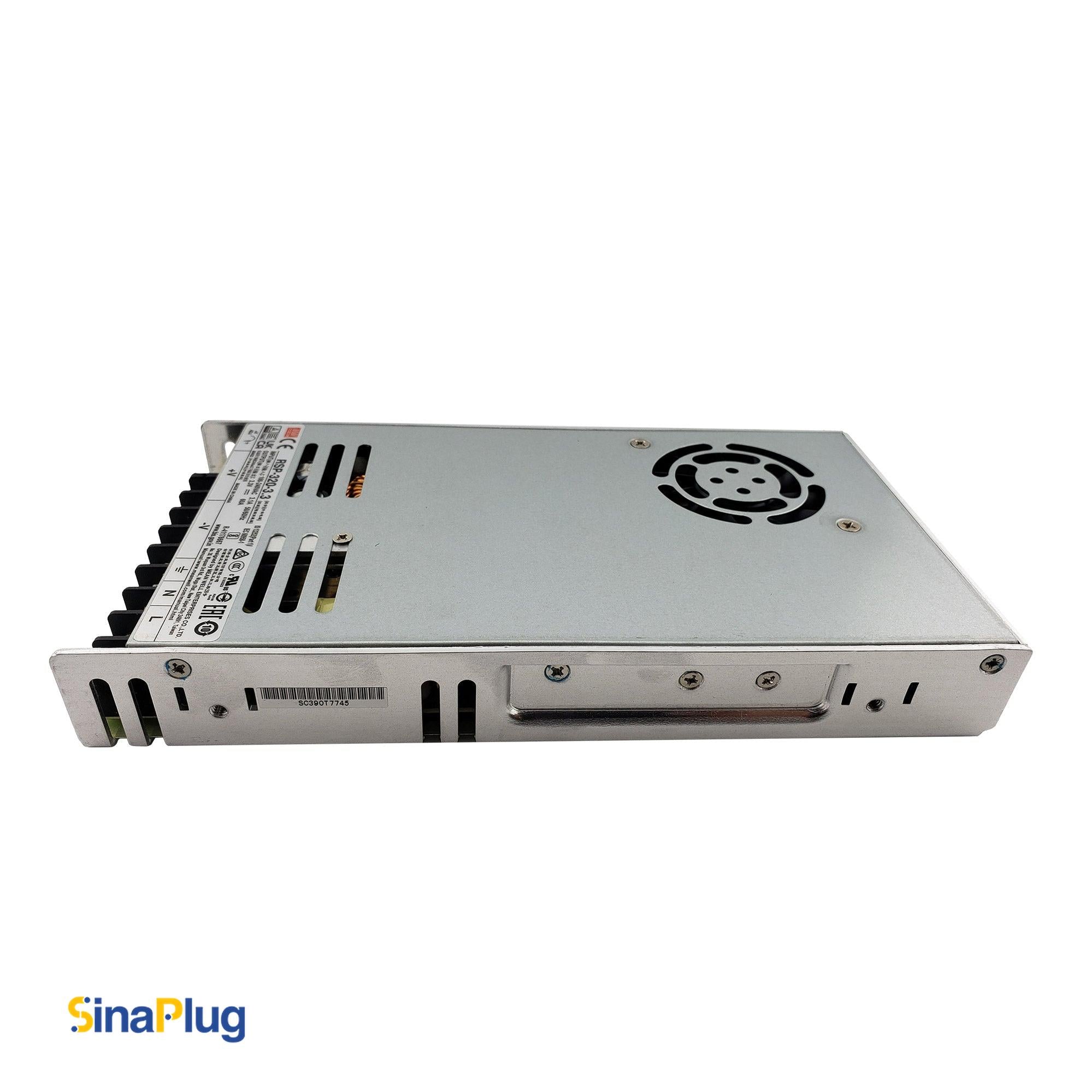

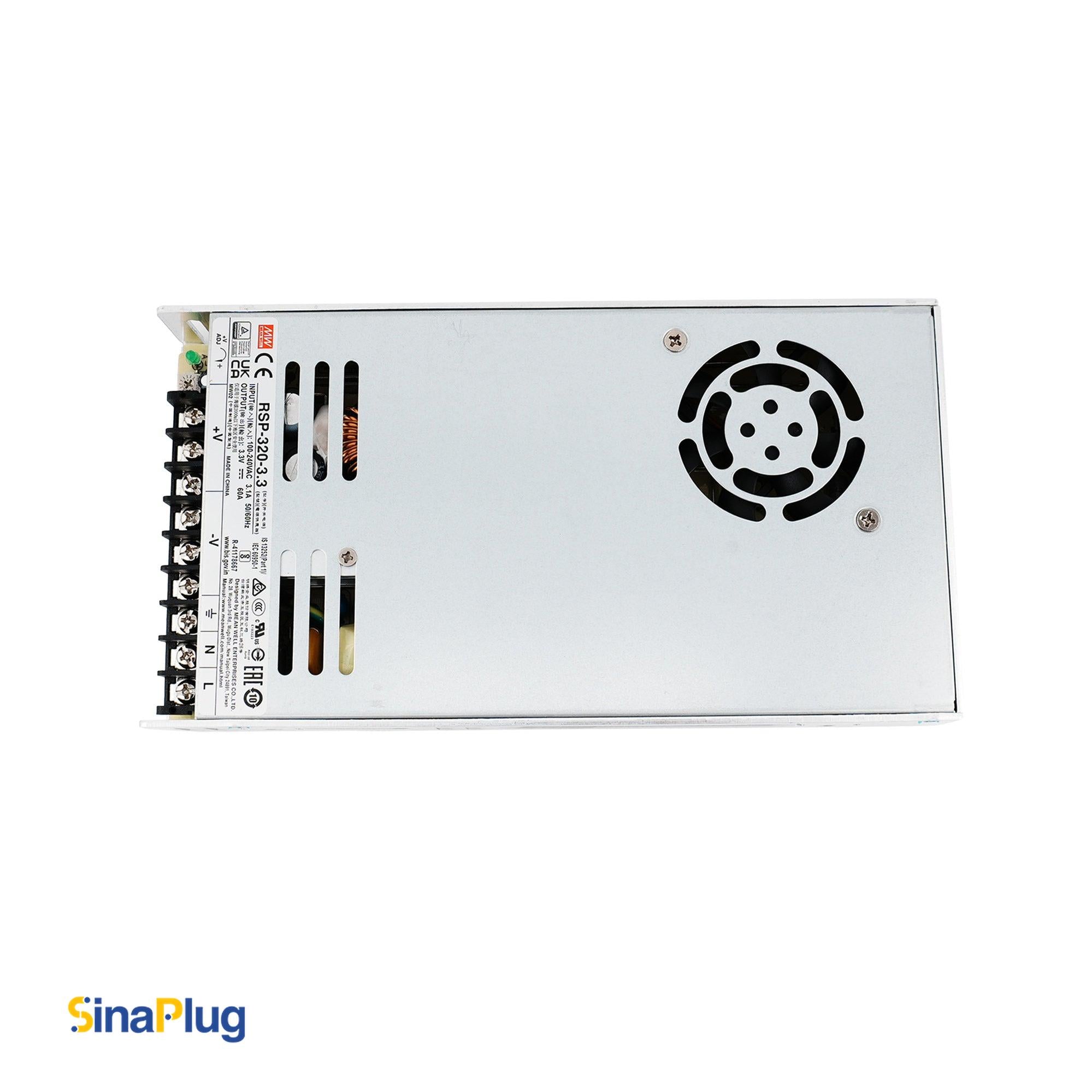

MEAN WELL RSP-320-3.3 Switching Power Supply (Output 3.3Volts, 60Amps)

The MEAN WELL RSP-320-3.3 is a remarkable, enclosed power supply ideal for industrial applications, A/V and LED equipment, and Radio Frequency applications that require constant and reliable performance, owing to its ±1.5% load regulation.

This AC/DC, compact RSP-320-3.3 converts wide-range 100-240 VAC inputs, to three consistent output channels at 3.3V with an adjustable 2.97-3.8V range, delivering up to 60A. It provides a rated 198W output power and contains a PFC function that improves overall efficiency (up to 79.5%) for optimal operation.

The key advantages of Meanwell, a leading brand in AC/DC power supplies, are their high reliability and stable operation, compact and space-saving design, long lifespan, and vibration resistance, ensuring consistent performance in tough environments, all at a competitive price

In addition to the advanced protections such as overload and over temperature protections (with automatic recovery), overvoltage and short circuit protections, The RSP-320-3.3's automated speed control built-in fan ensures long-term operation performance in demanding conditions ranging from -30°C to +70°C.

The RSP-320 series is certified by RoHS Directive 2011/65/EU amended by 2015/863 Compliant, UL62368-1, IEC60950-1, EN IEC61000-3-2, EN62368, GB17625, EN55032, and EN55035, permitting it to meet worldwide power standards.

Key Features of RSP-320-3.3

• Type of Power Supply: AC to DC
• Packaging: Enclosed
• Input Voltage Range: 100 – 240VAC
• Adjustable Output Voltage: Yes (2.97 - 3.8V)
• Output Voltage: 3.3V
• Output Rated Current: 60A
• Output Rated Power: 198W
• Protections: Over Temperature, Over Voltage, Over Current Protection, Short Circuit Protection
• Dimensions (L*W*H): 215mm * 115mm * 30m
