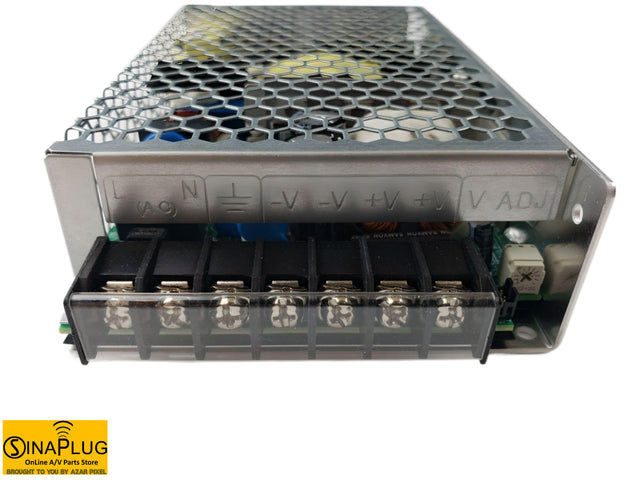

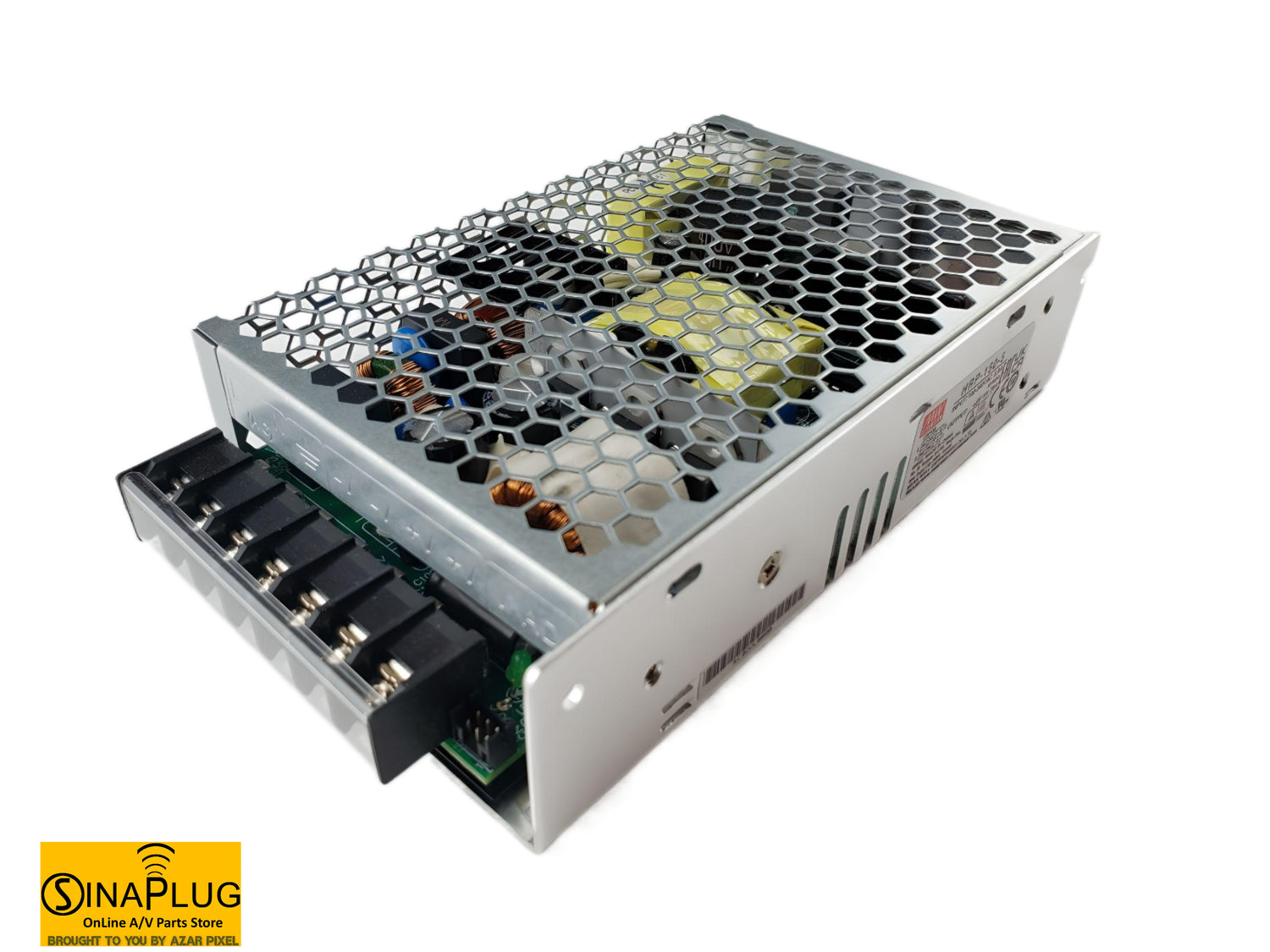

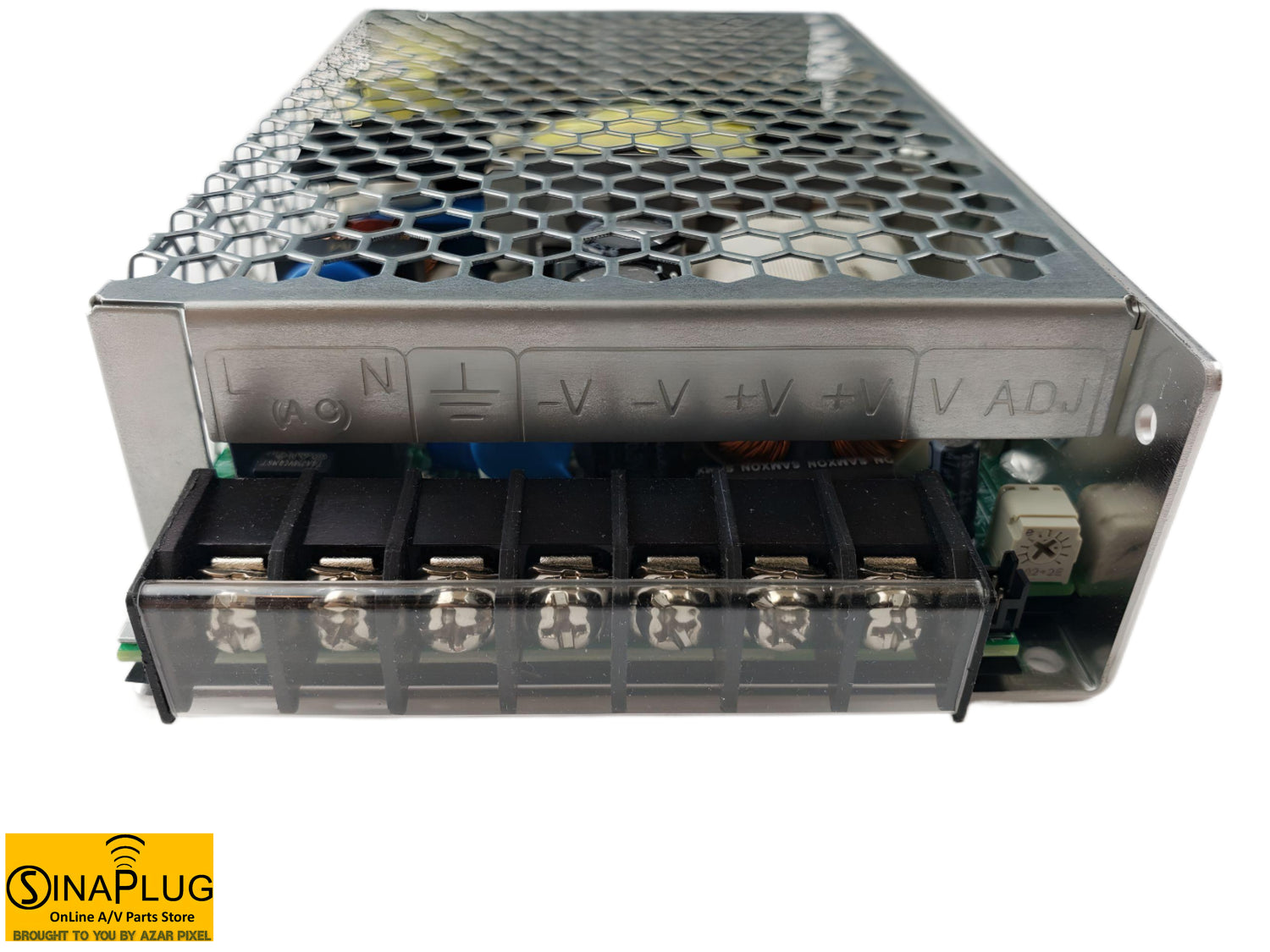

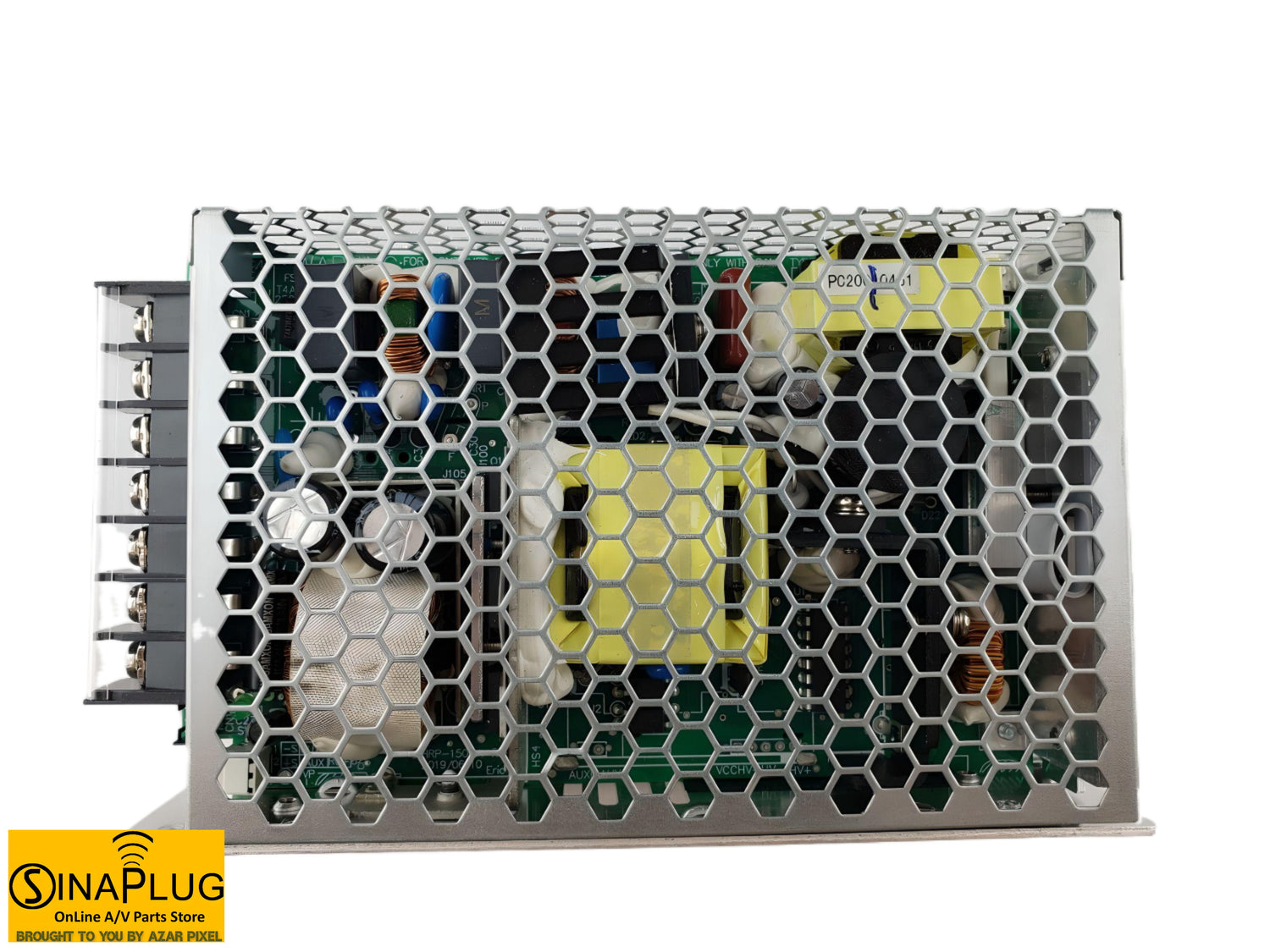

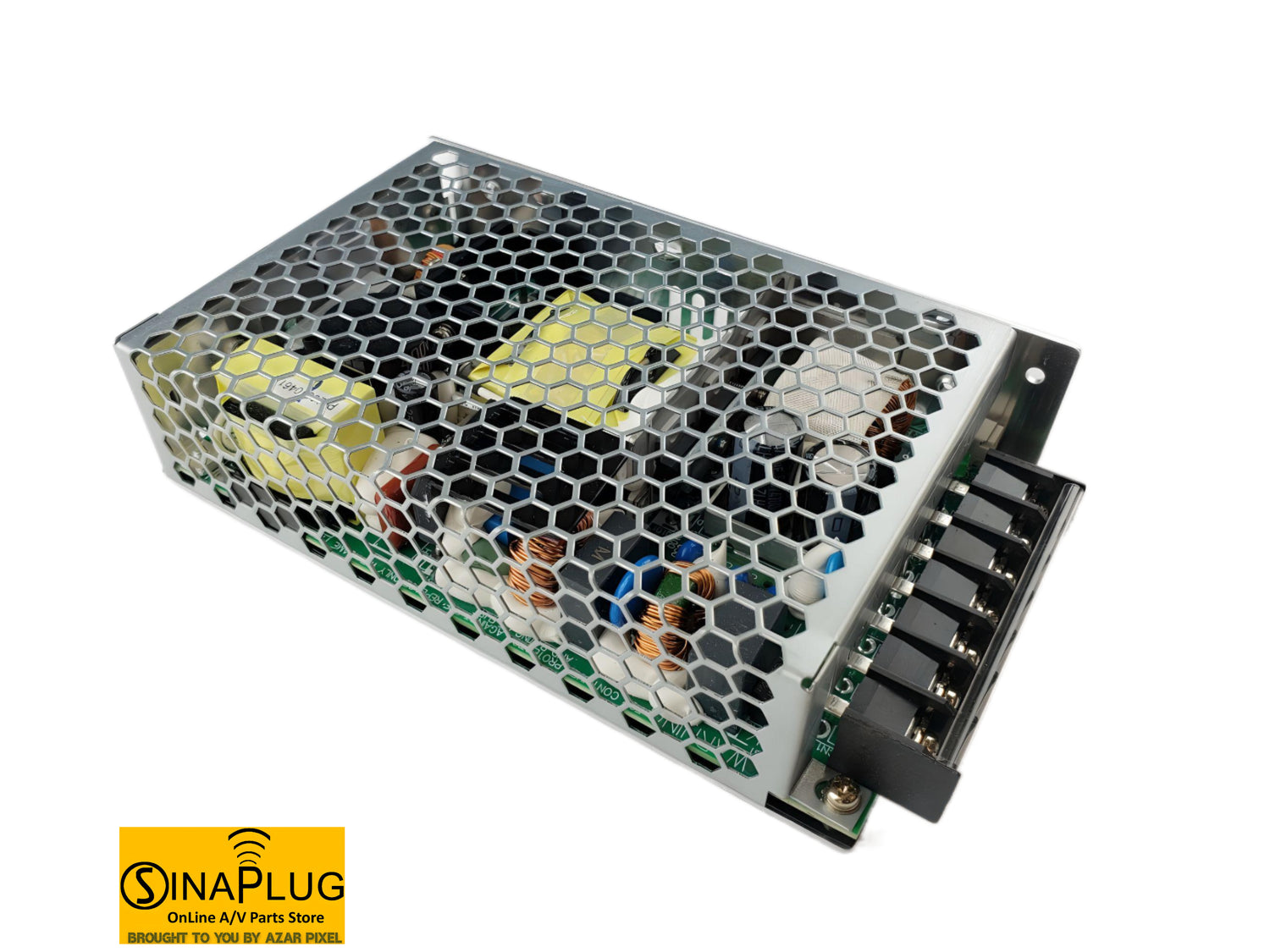

MEAN WELL HRP-150-5 Switching Power Supply (Output 5Volts, 26Amps)

The MEAN WELL HRP-150-5 converts wide-range 100-240 VAC inputs, to consistent output channels at 5V 26A, with an adjustable 4.3-5.8V range. It delivers a rated 130W output power with PFC control that improves the overall efficiency (up to 85%) and reduces the impact on the electrical grid.

The HRP-150-5 AC/DC power supply is highly efficient and enclosed, making it excellent for industrial control systems and LED equipment that demand constant processes. it features power factor correction and ±1% load regulation.

The small-sized HRP-150 series ensures long-term operation in demanding situations due to its enclosed construction, which allows the device to perform effectively in various ambient temperatures ranging from -40°C to +70°C with metallic mesh case and from -40°C to +60°C with cover on.

Meanwell's AC/DC power supplies are a leading brand regarding their high reliability and stable operation due to their complete protection functions, long lifespan, small and space-saving design, and 5G anti-vibration capability (range of 10-500Hz), which ensures compatible performance in expected conditions, all at a reasonable price.

In addition to the advanced protections such as overload (up to 135% rated output power) and over temperature protections (with auto recovery), over-voltage and short circuit protections, it is certified by RoHS Directive 2011/65/EU amended by 2015/863 Compliant, EN55032, EN61000-3-2, EN61000-4-2, EN55035, EN61000-6-2, and UL62368-1 permitting it to meet international energy standards.

Key Features of HRP-150-5

• Type of Power Supply: AC to DC
• Packaging: Enclosed
• Input Voltage Range: 100 – 240VAC
• Adjustable Output Voltage: Yes (4.3 - 5.8V)
• Output Voltage: 5V
• Output Rated Current: 26A
• Output Rated Power: 130W
• Protections: Over Temperature, Over Voltage, Over Current Protection, Short Circuit Protection
• Dimensions (L*W*H): 159mm * 97mm * 38mm
