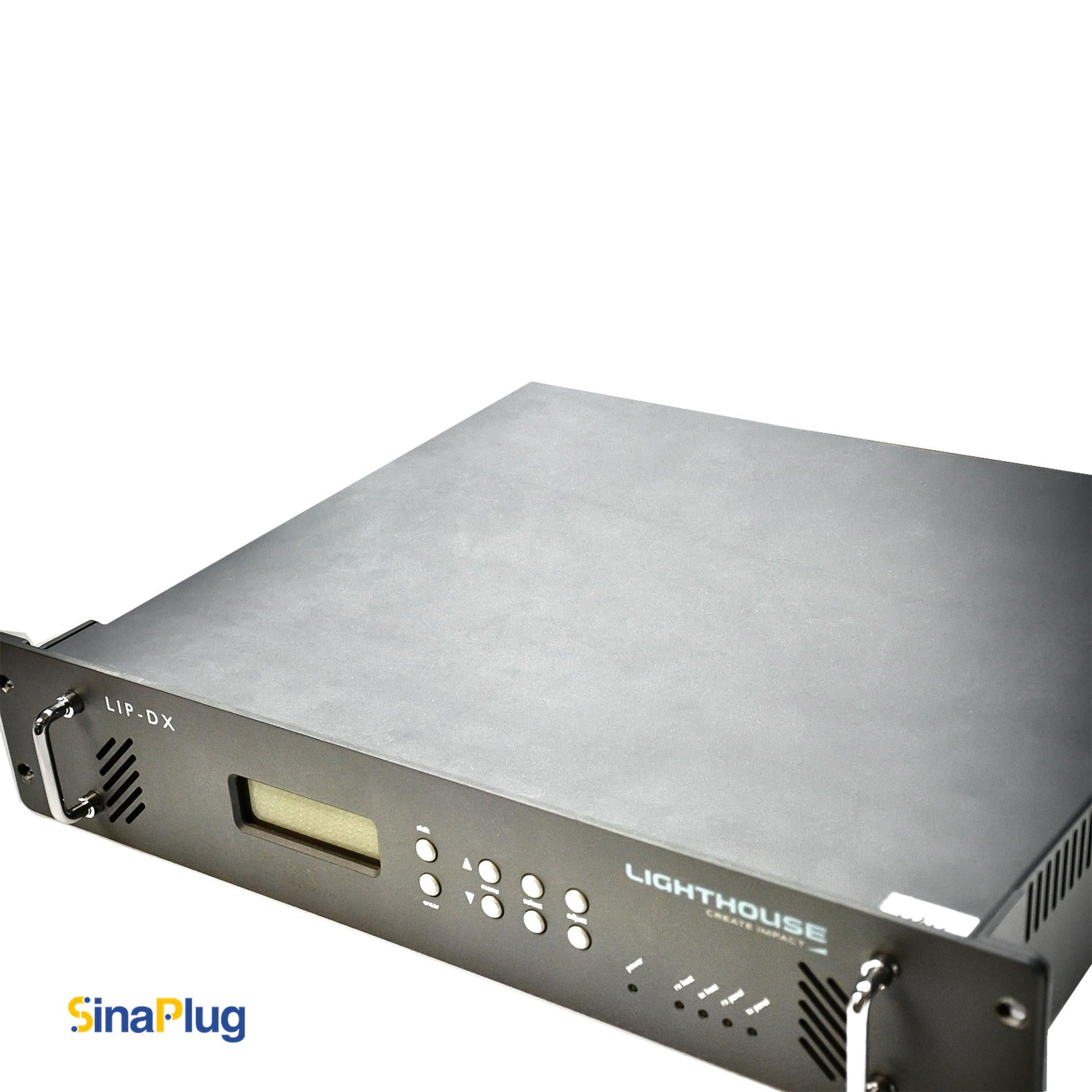

LIP-DX :Lighthouse Interface Processor System control equipment

FEATURES

Input standards :

- Computer:

VGA (640x480), 60Hz

SVGA (800x600), 60Hz

XGA (1024x768), 60Hz

Output standards :

LH-SDI

RS232 (COM only)

Analogue VGA, SVGA, XGA

system support :

Lighthouse M4 / M3 / M1 LED Video Screen (Max. size: 1024x768)

Control interface :

 - RS232 Interface to PC Remote Control software

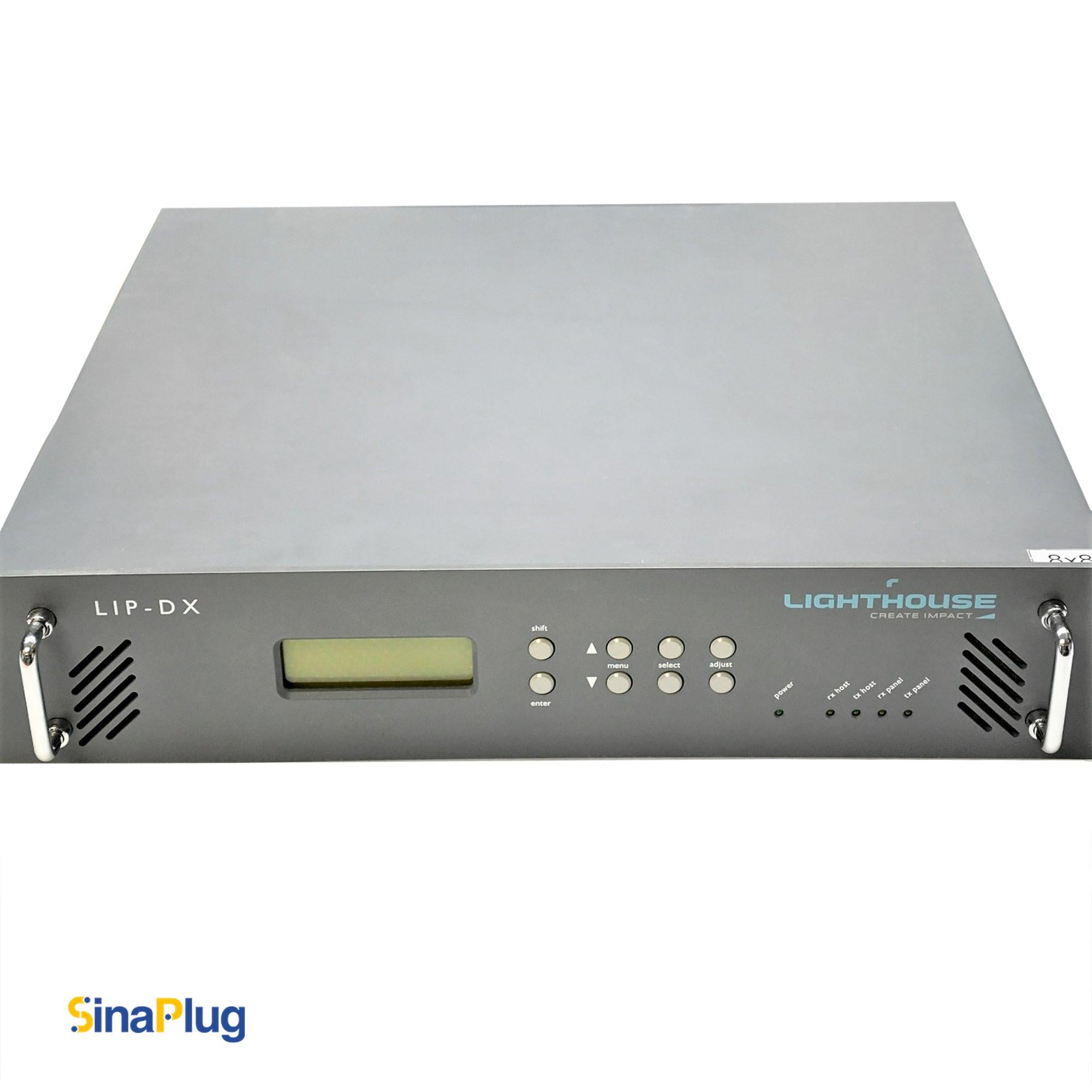

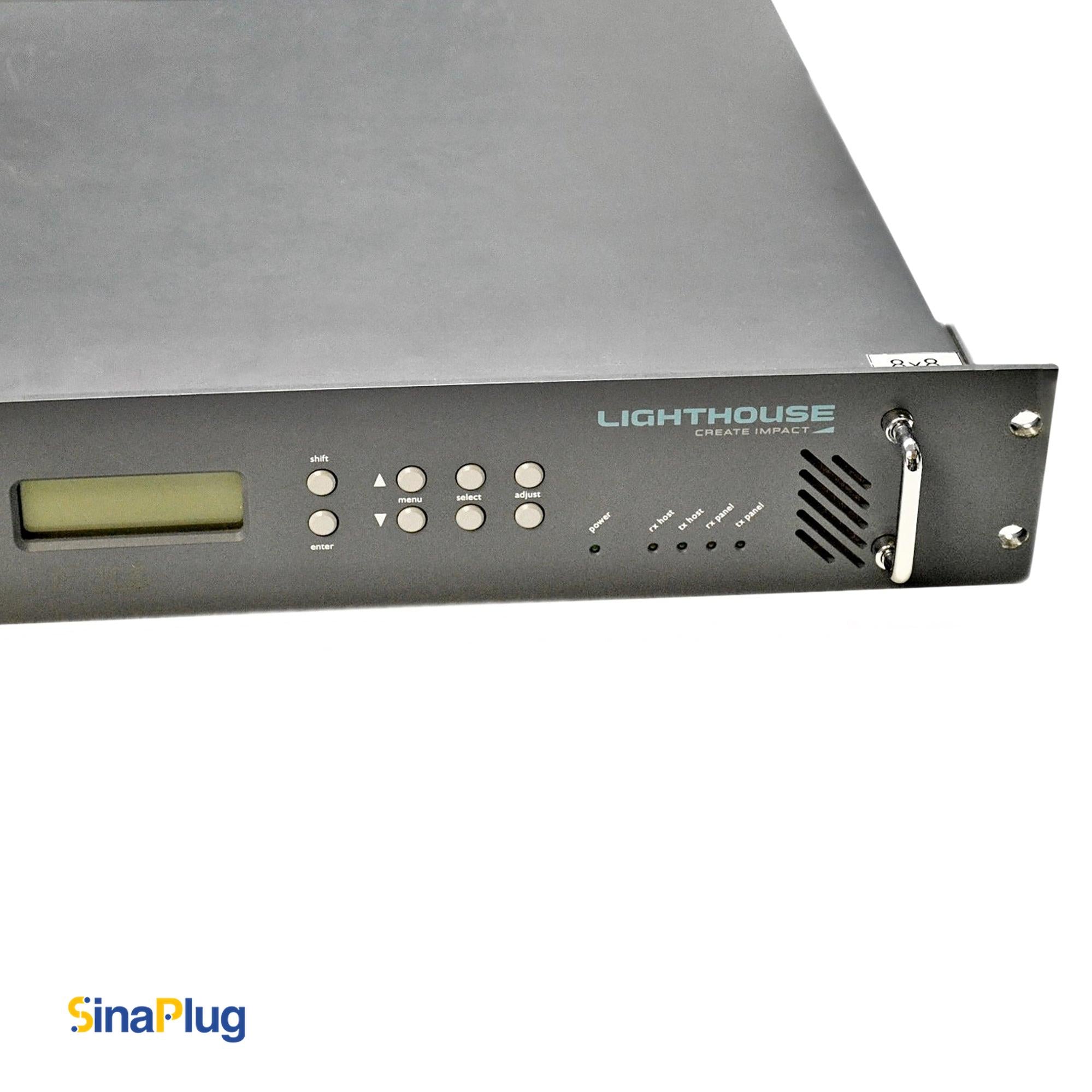

User Interface:

- LCD Display

- Keypad

- LED indicators

- Address switch

- Power switch

physical characteristics:

Dimensions:

Height (mm):  90 (2U)

Width (mm): 482.6

Depth (mm): 406

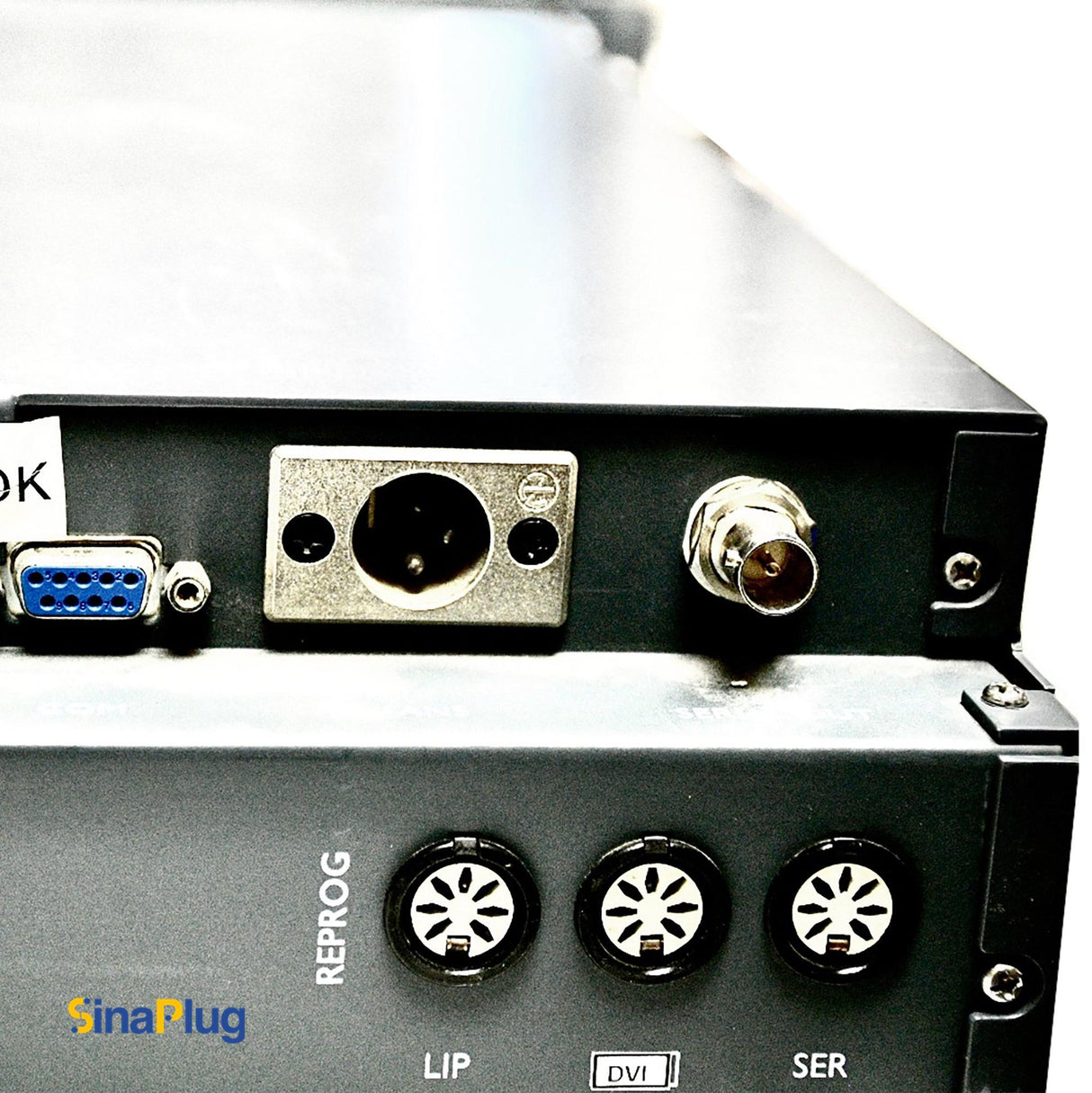

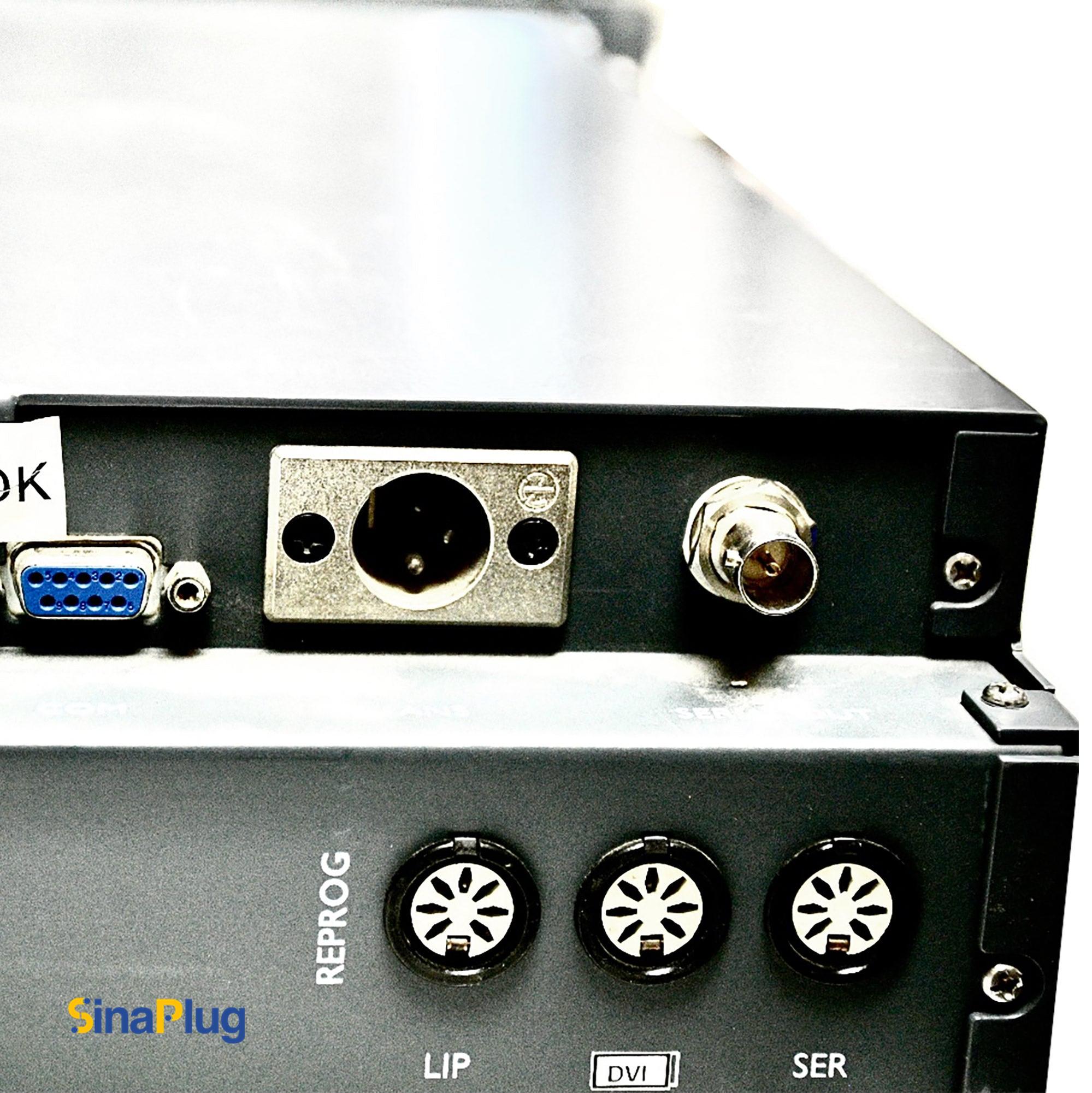

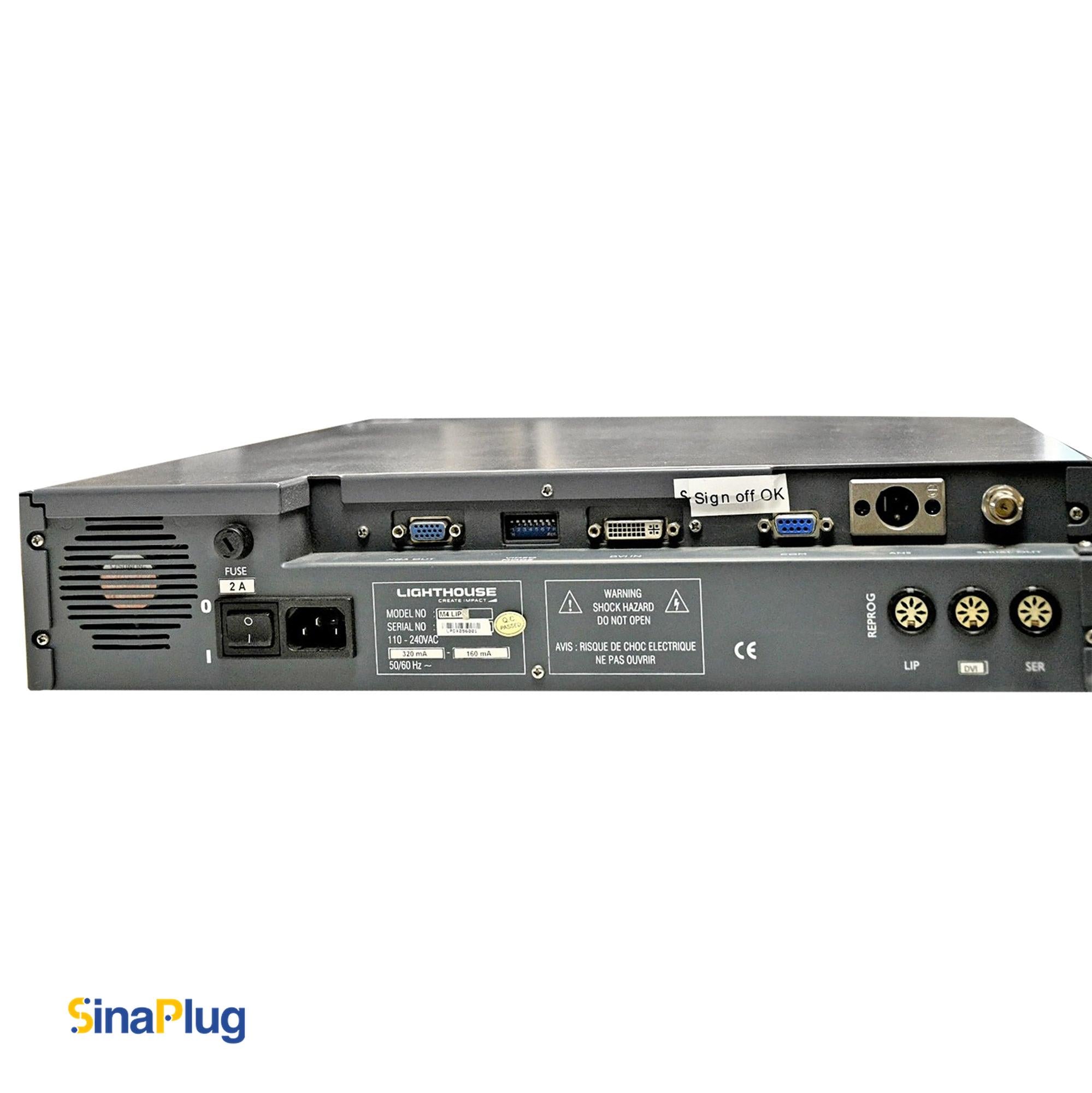

Connector Type:

Input:

- Computer: 15-pin VGA female connector (for analogue video)

- COM: 9-pin D-sub female connector

- Answer: 3-pin XLR male connector

- LIP re-program: 7-pin DIN connector

- ADC re-program: 7-pin DIN connector

- SER re-program: 7-pin DIN connector

Output:

- 75-Ohm BNC connector

- Computer: 15-pin VGA female connector

-Packing capacity : 1-in-1

Environmental :

Temperature :

Operating (ºC):   0 ~ 40

Storage / Shipping (ºC): -20 ~ +50

Humidity :

Operating  (%) : 30 ~ 70

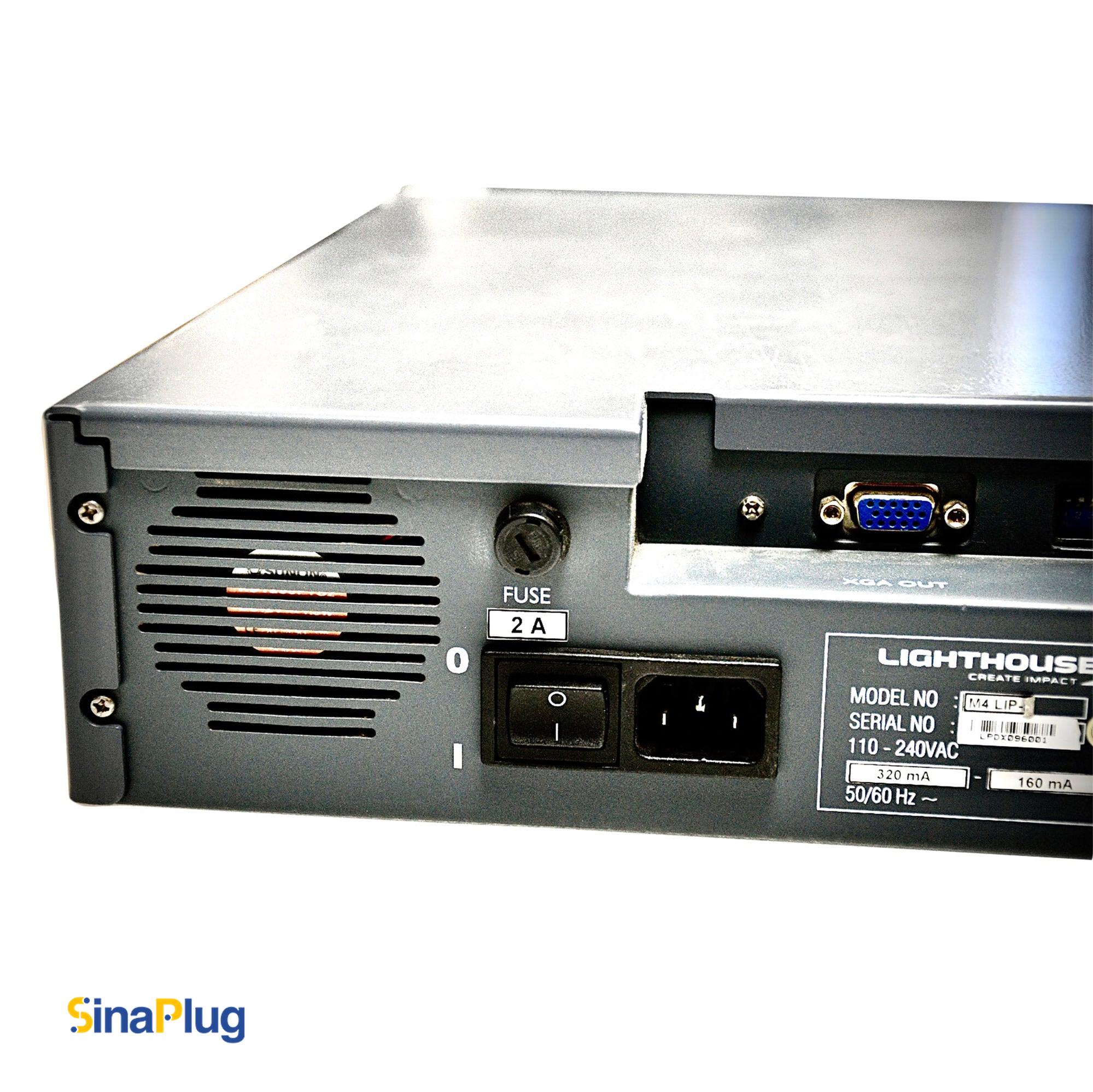

Electrical

AC Input:

Voltage (Volt) 110 ~ 220

Frequency (Hz) 50 ~ 60

warranty : 1 year

• Item condition: used
