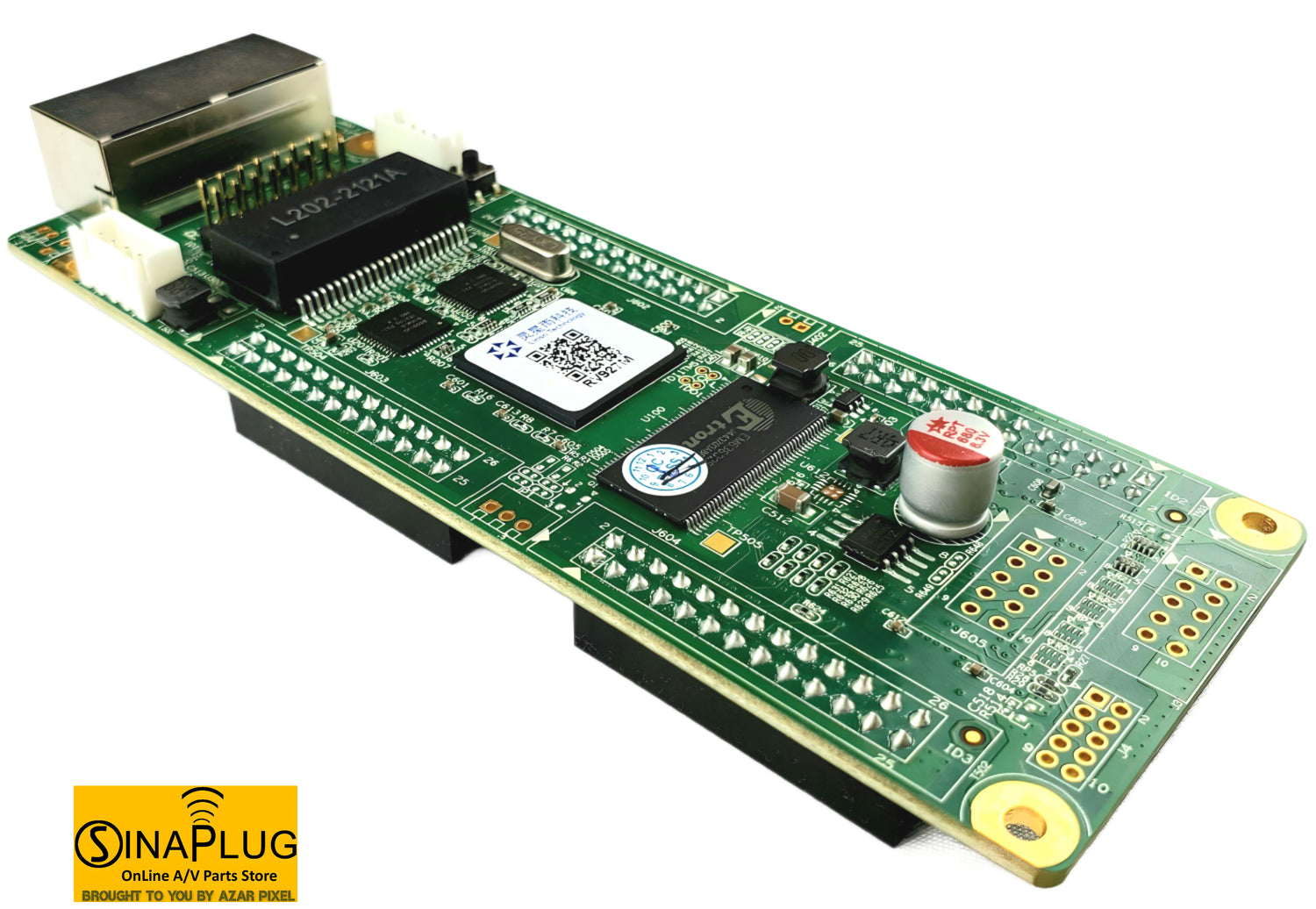

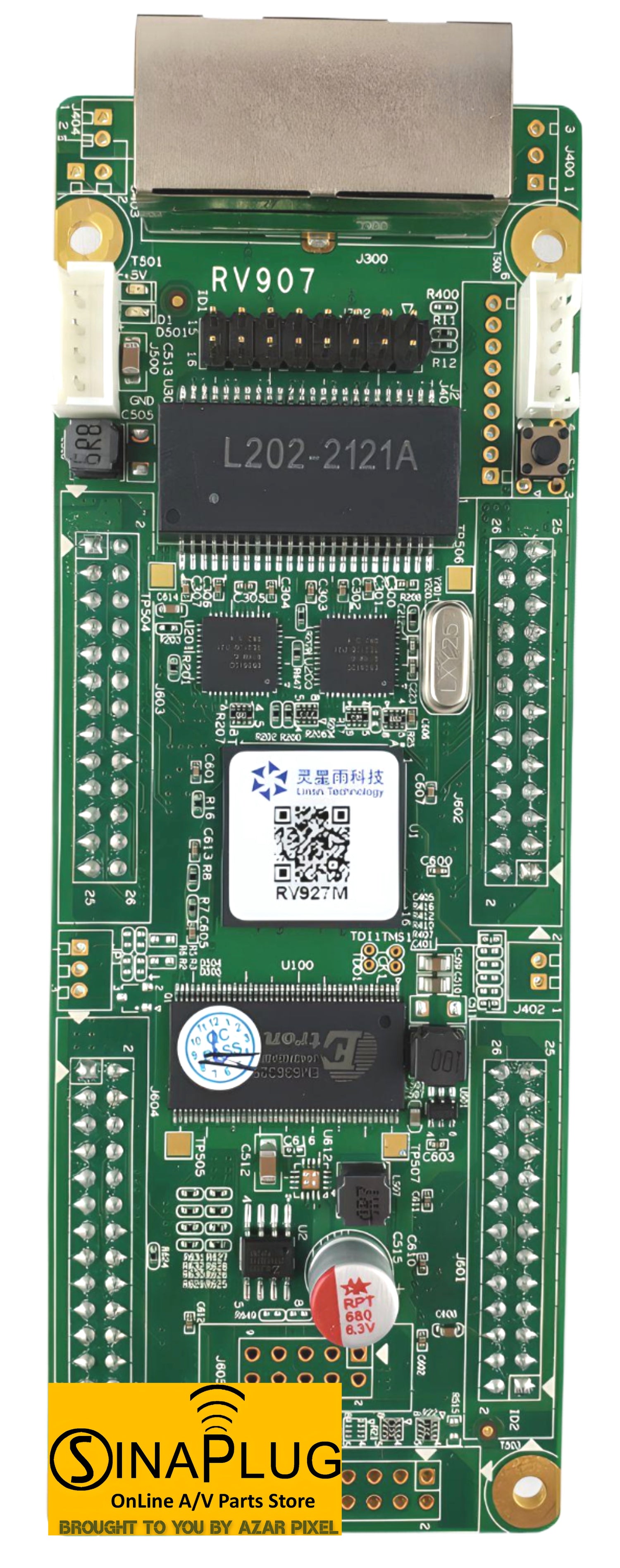

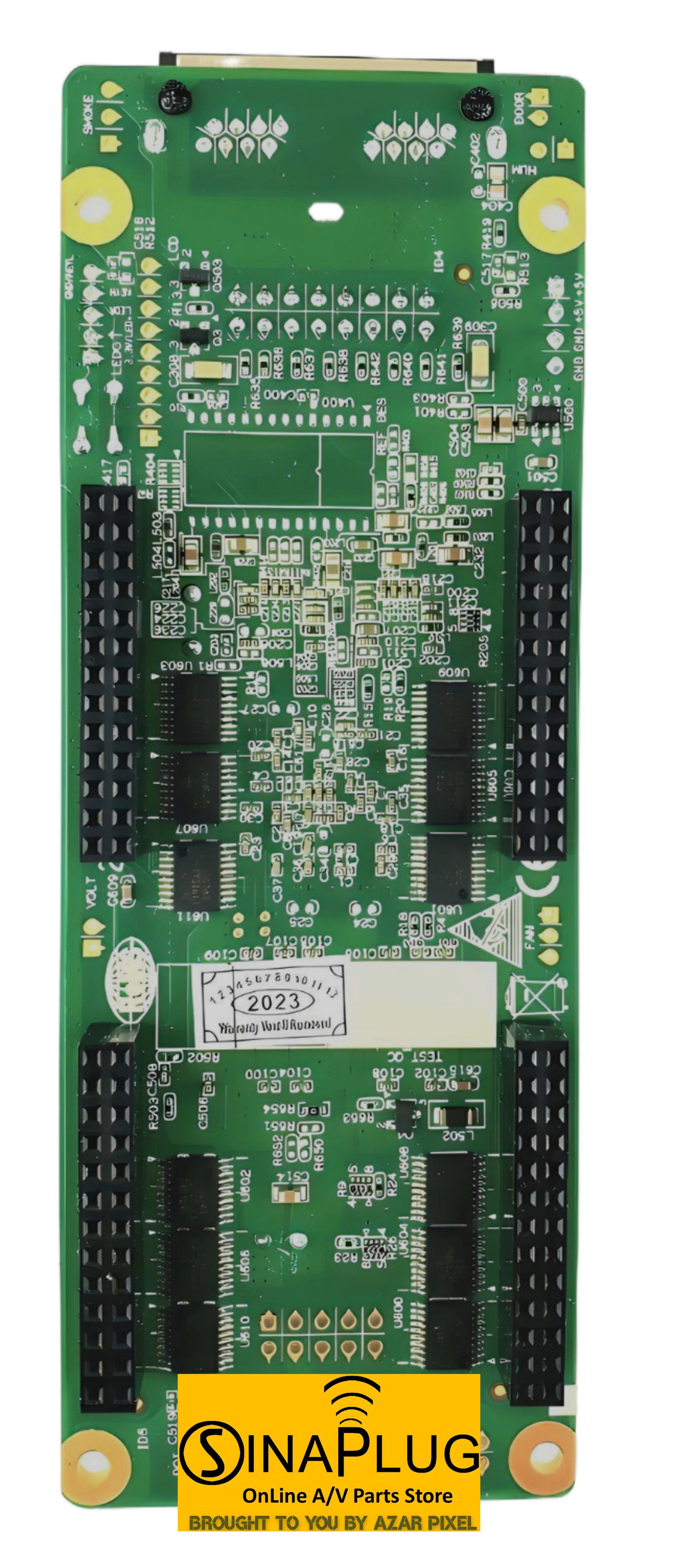

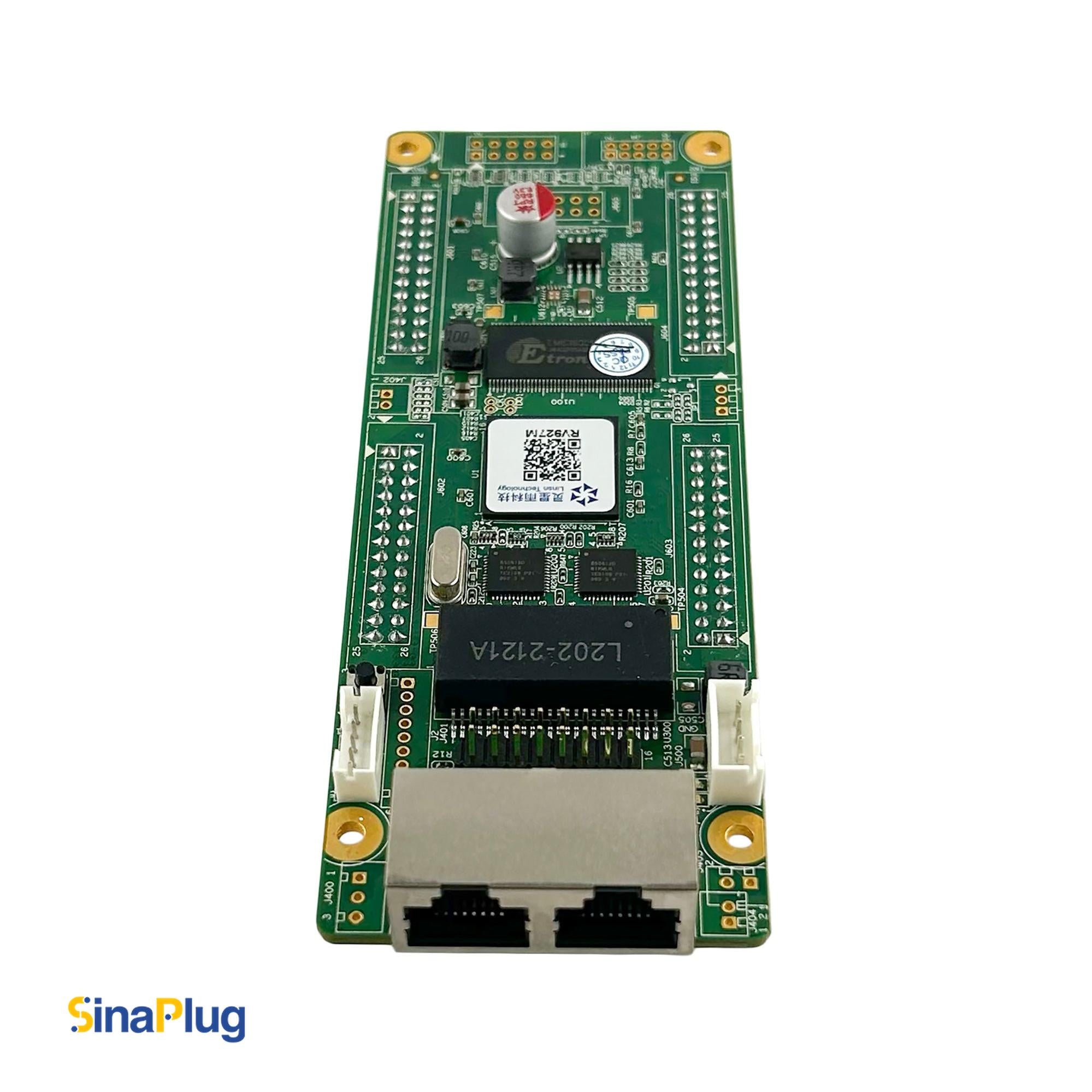

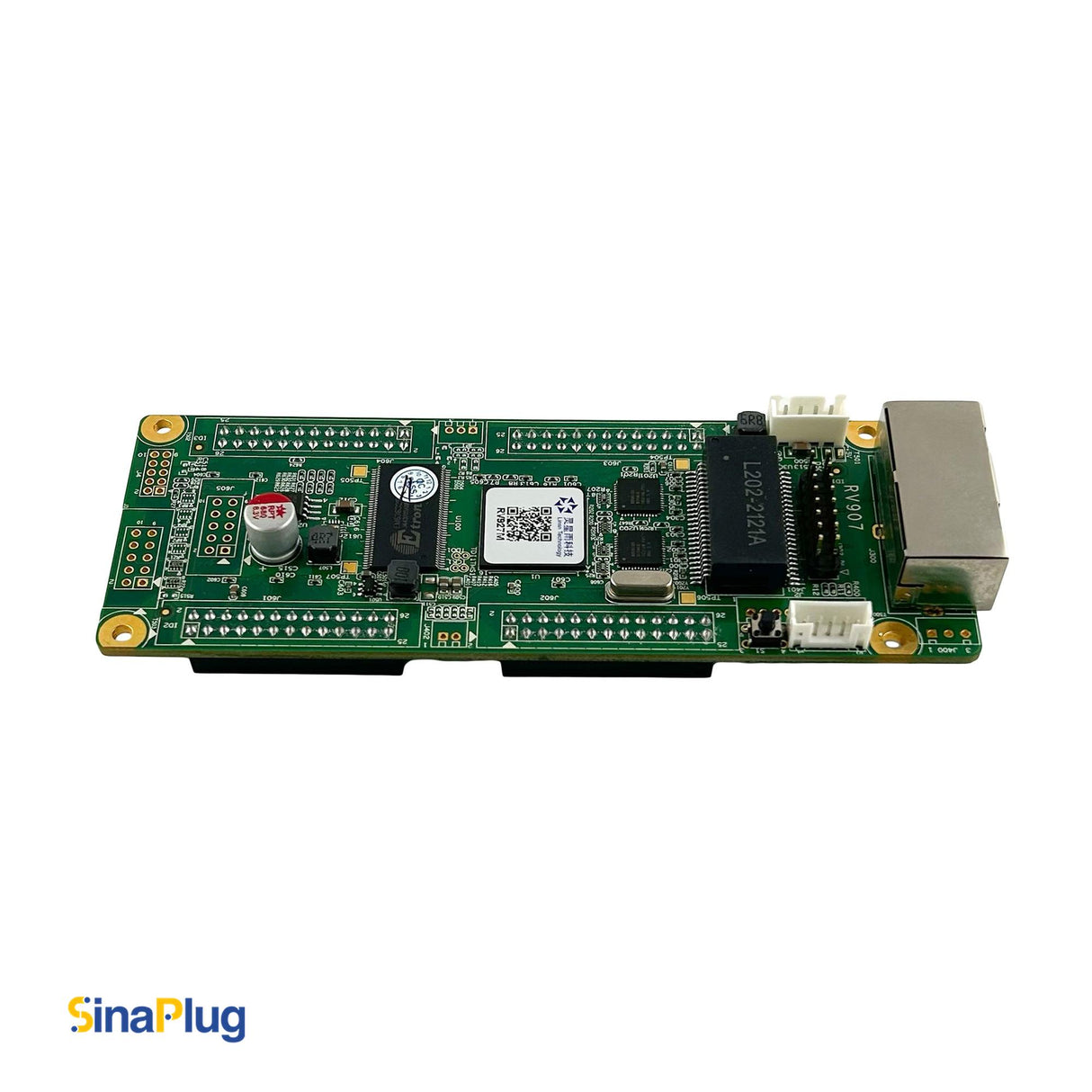

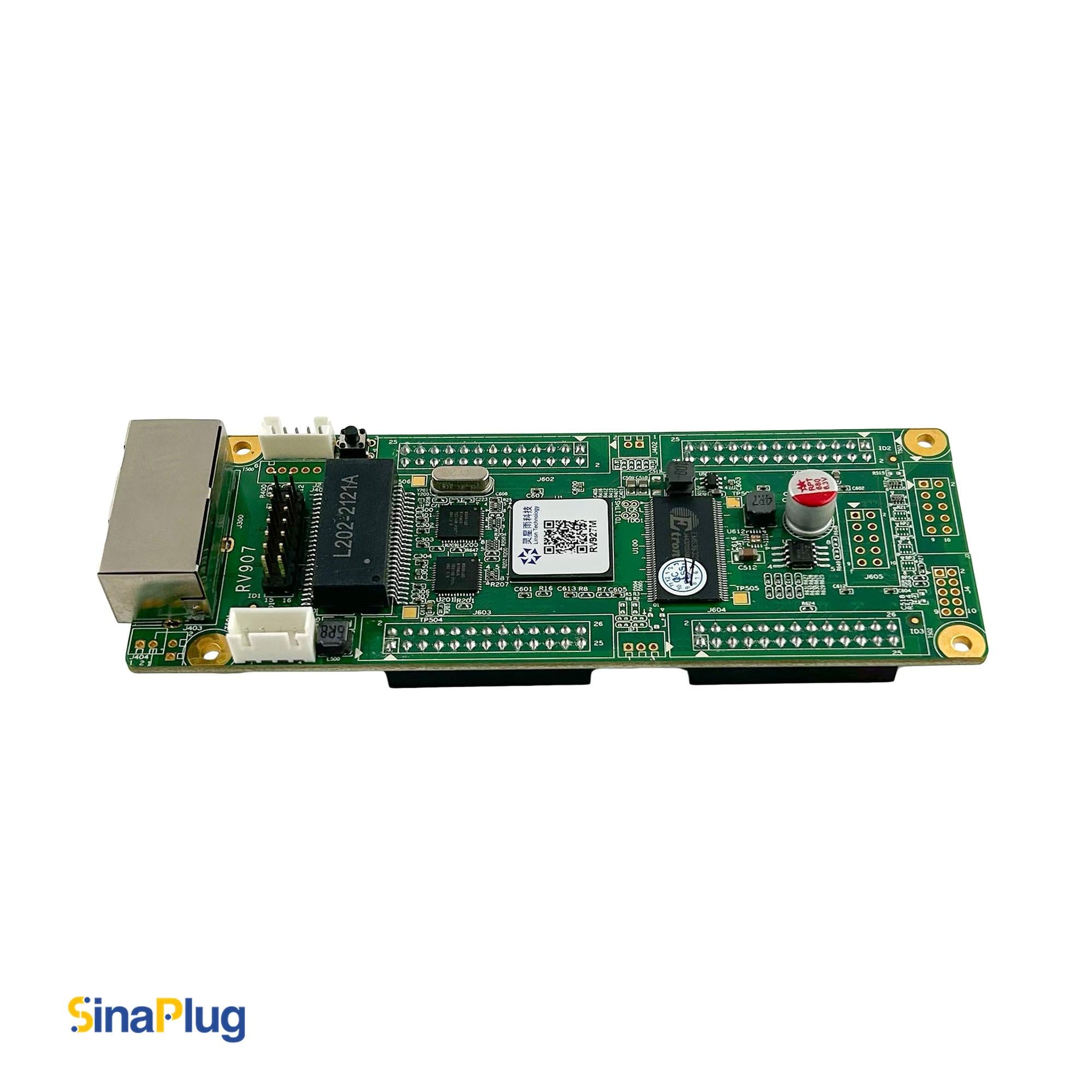

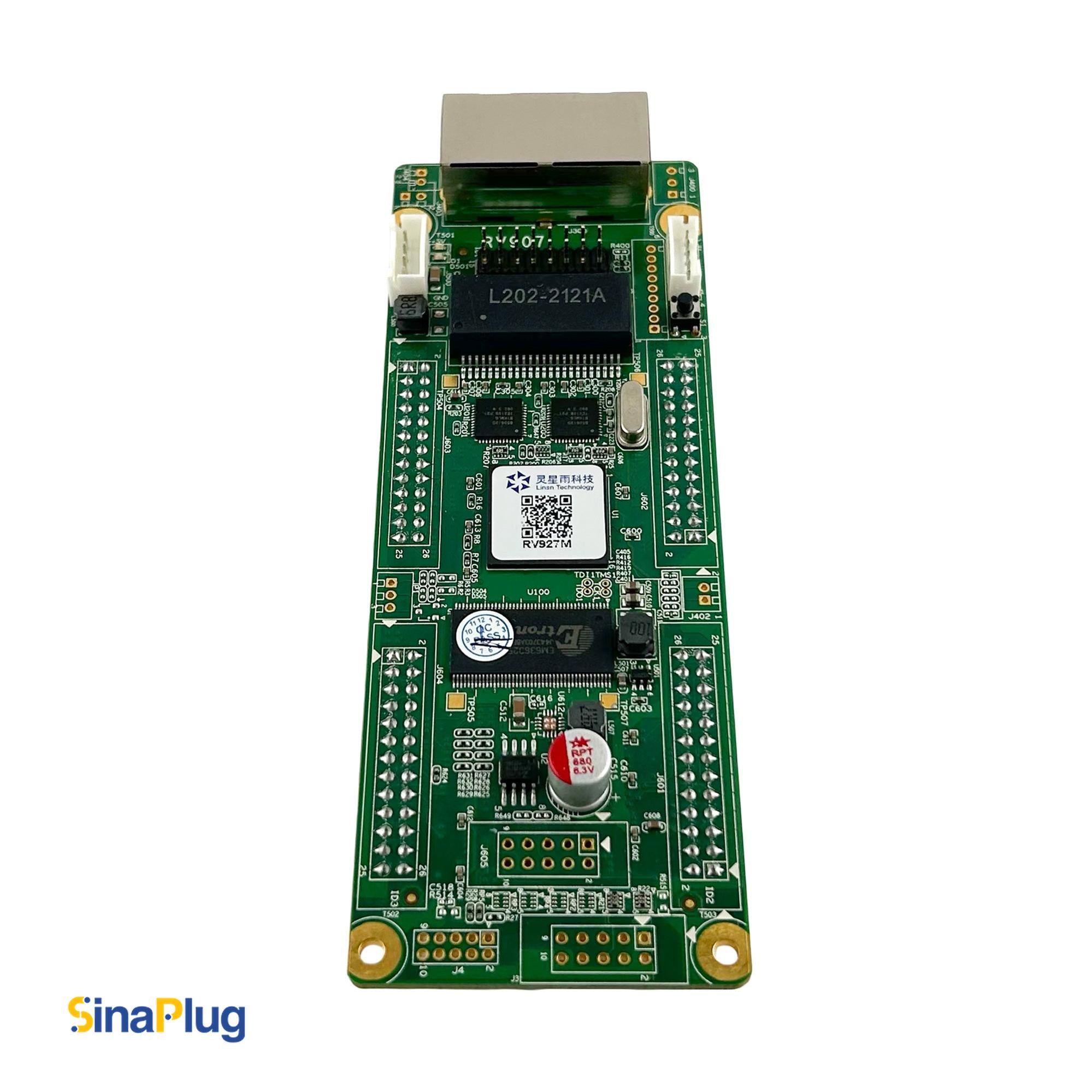

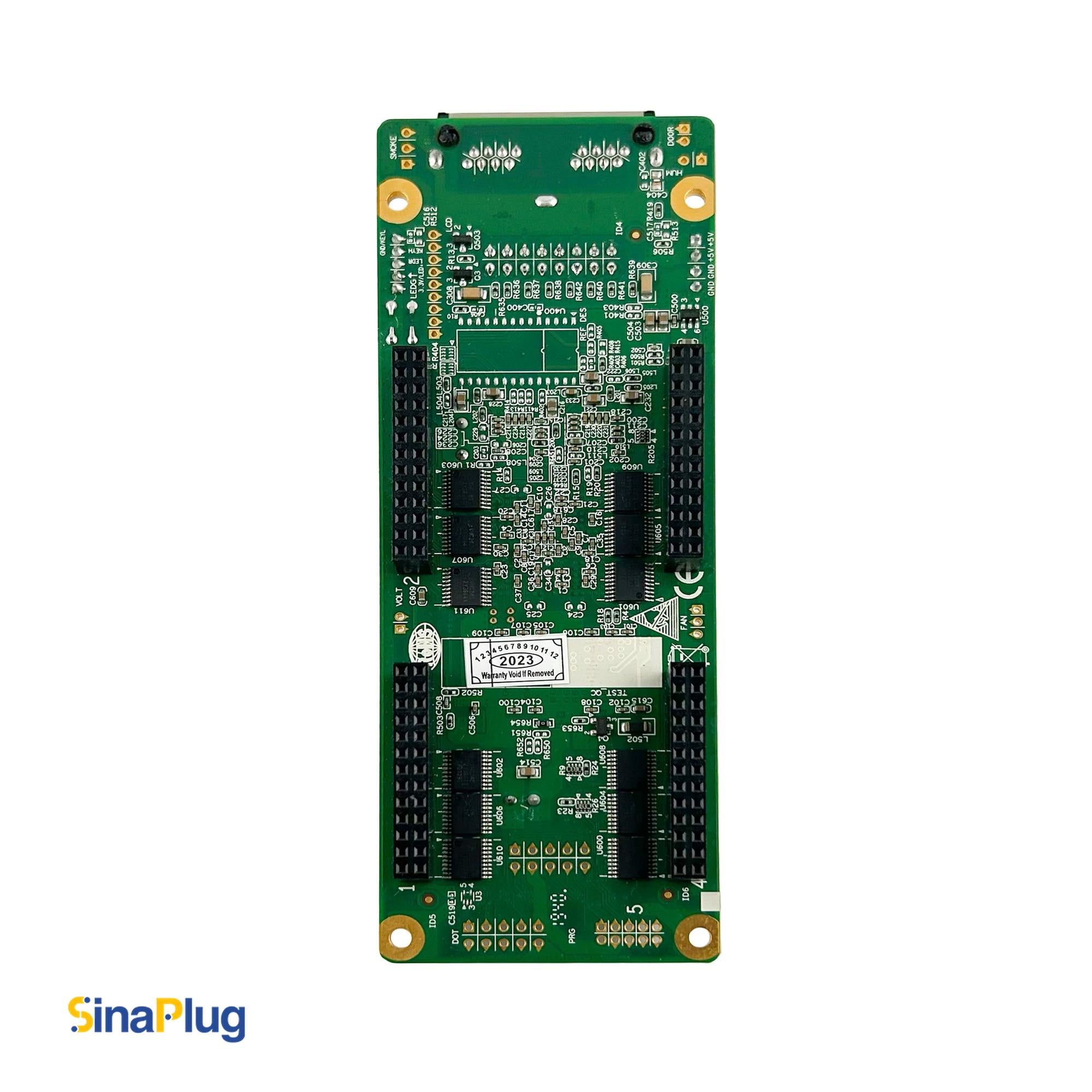

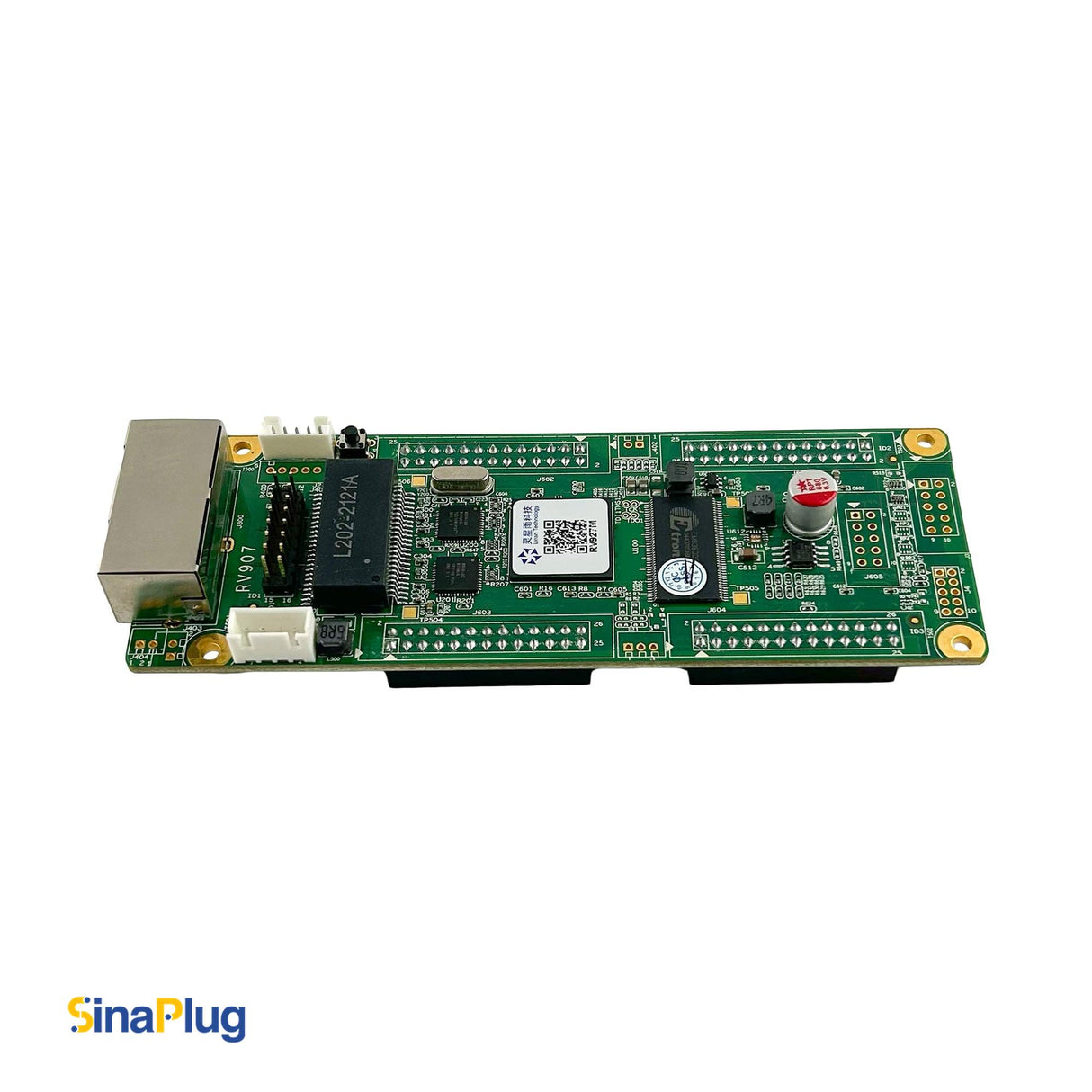

LINSN RV907 Receiving Card

LINSN RV907M receiving card is designed specifically for lease screen. Not only compatible with generation

RV807/817/827/837 completely, but also take care the needs of led lighting and led curtain. RV907H/927H/937H with the following features:

1. Compatible with RV801, has all the features of RV801

2. Small size (479mm X 1365mm), mounting holes are same with RV802

3. Four output interfaces can directly drive module (save hub card)

4. Each of the 4 interfaces has up to 6 groups parallel data; total 24 groups of parallel data interface to achieve higher refresh rate

5. Provide a 90 degree 26-Pin interface, convenient PCB docking design

6. Provide 16 groups serial-data for led lighting and led curtain

7. Each interface has VCC pin to get power supply for control system from led module. No need to get extra power supply for control system.

8. support 12-bit HDMI colors input (required the 9th generation sending card)

9. using18-bit signal processor, maximum support 18-bit (260,000) gray (each of red, green and blue)

10. Single card maximum supports 1024X256 pixels, and 1024 grades single pixel chromaticity correction

11. Supports single-card color space conversion

12. Support program replication

13. Supports pixel fault detection (requires a dedicated chip support)

14. Support network cable BER test

15. Support flat cable fault detection

16. Support the cabinet-door monitoring (open/close)

17. Two lines fan-speed monitoring

18. Three lines Voltage monitoring: one for the system, two for cabinet power

19. Temperature monitoring

20. Humidity monitoring (humidity sensor sold separately)

21. Smoke monitoring (smoke module sold separately)

22. In line with EU standards CE-EMC
