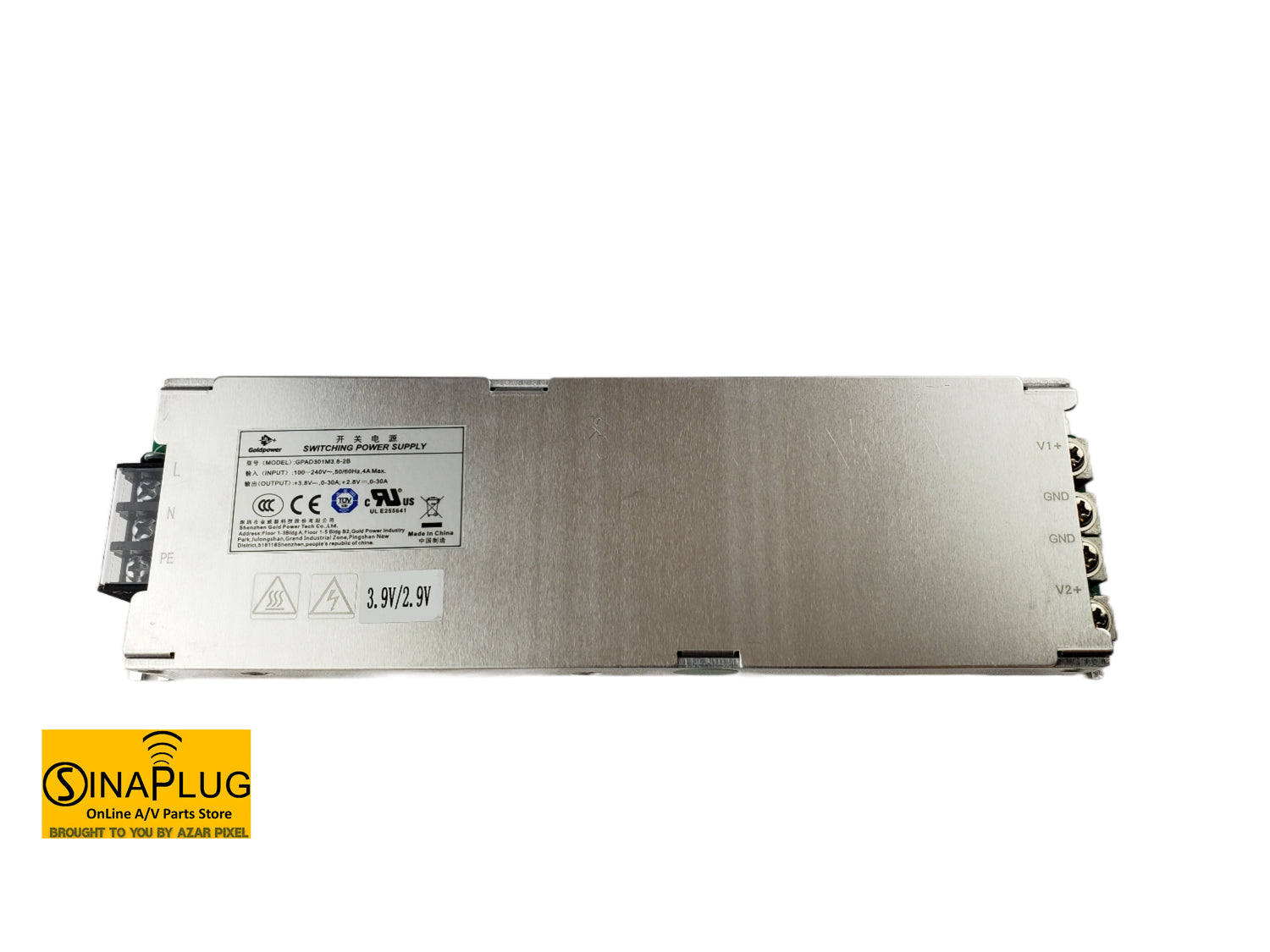

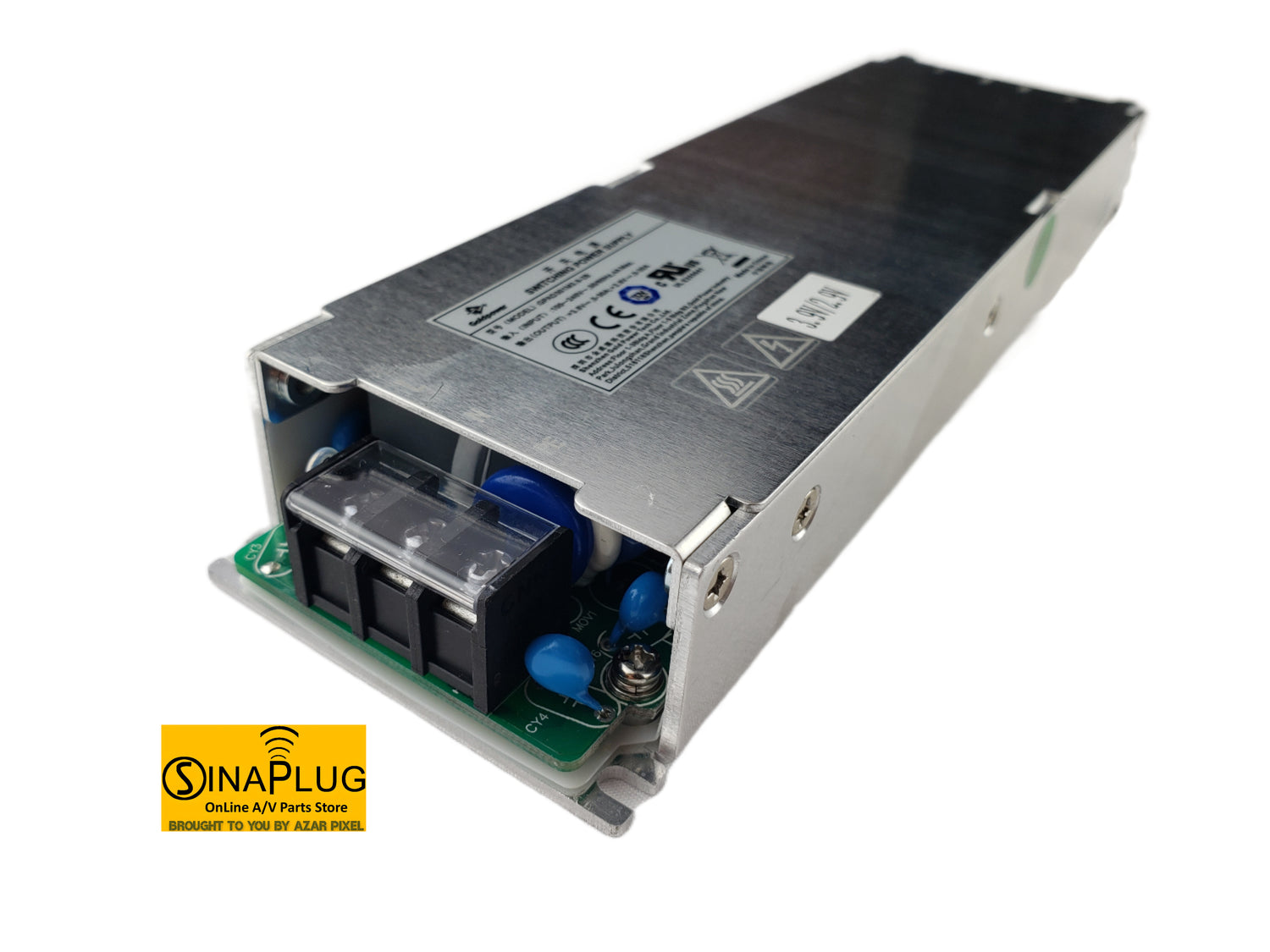

GOLDPOWER GPAD301M3.8-2B Switching Power Supply (3.8V, 30A / 2.8V, 30A)

The Gold Power GPAD301M3.8-2B (also known as: GPAD301M3.8 2B and 301M 3.8-2B) is a remarkable, enclosed power supply excellent for industrial, A/V, and LED equipment that requires stable and reliable operation.

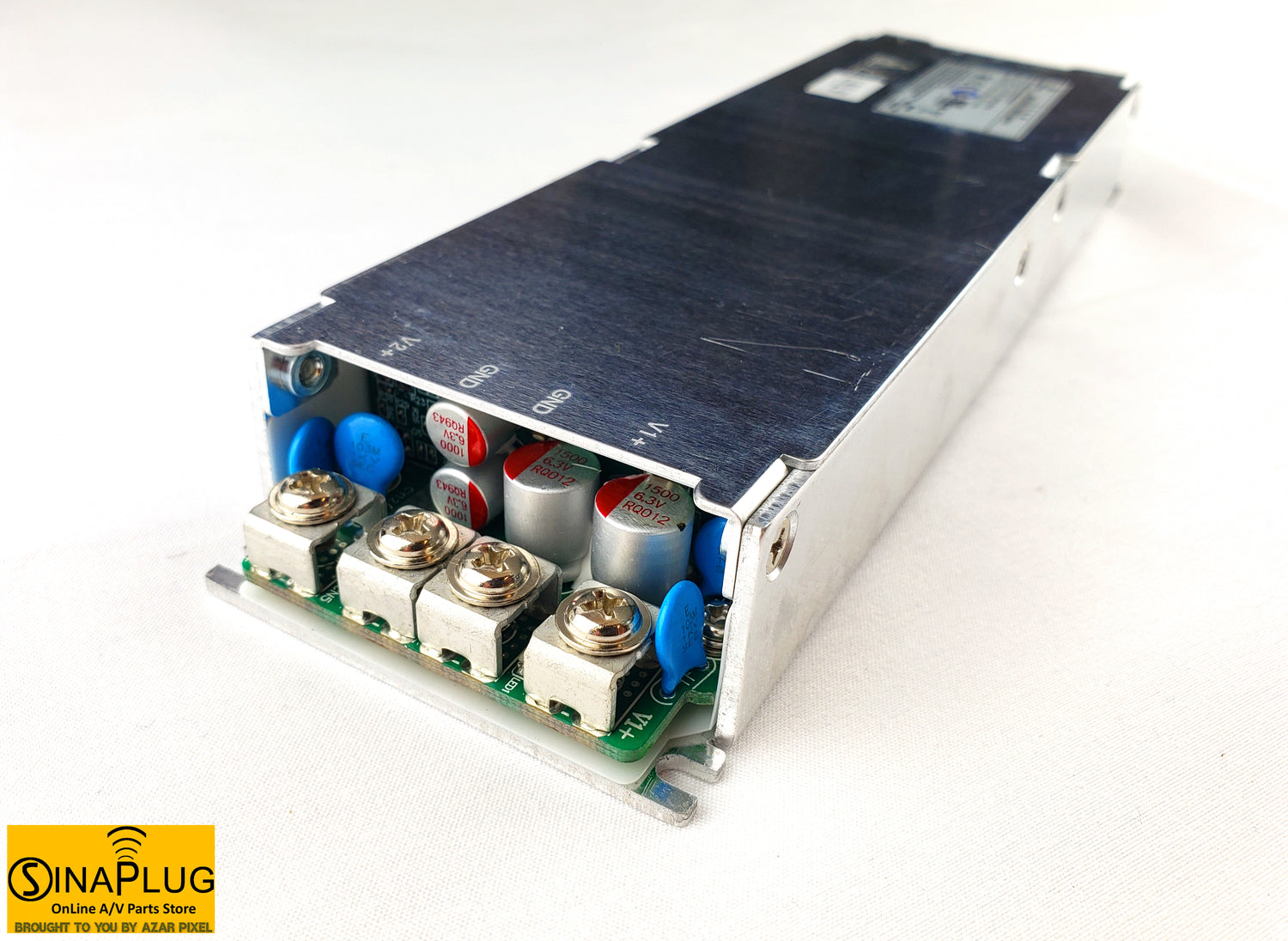

The low-profile, dual-output Gold Power GPAD301M3.8-2B power supply provides a 3.8V output at V1+ channel and a 2.8V at V2+ channel and delivers and handles a total current of 60A across its outputs (up to 30A with 3.9V and up to 30A with 2.8V) from a full-range 100-240VAC input. It provides a rated 200W output power with a 0.95 Power Factor that enhances efficiency for optimal performance.

The 87% efficiency of the GPAD301M3.8-2B ensures minimal heat production, outstanding 200K hours MTBF, and long-term operation in demanding situations. It can operate using natural air convection, without a cooling fan, across a wide range of ambient temperatures from -40°C to +70°C.

In addition to all the advanced protections such as overload and short circuit protections (with automatic recovery), over-voltage, under voltage, and over temperature protections, it is certified by IEC 61000-4- GB 4943, GB/T17625.1, and EN 55022 allowing it to meet the worldwide energy requirement.

Key Features of GPAD301M3.8-2B

• Type of Power Supply: AC to DC
• Packaging: Enclosed
• Input Voltage Range: 100 – 240VAC
• Adjustable Output Voltage: No
• Output Voltage: 3.8V / 2.8V
• Output Rated Current: 30A / 30A
• Output Rated Power: 200W
• Protections: Over Temperature Protection, Under voltage protection, Over Voltage Protection, Over Current Protection, Short Circuit Protection
• Dimensions (L*W*H): 210mm * 60mm * 28mm
