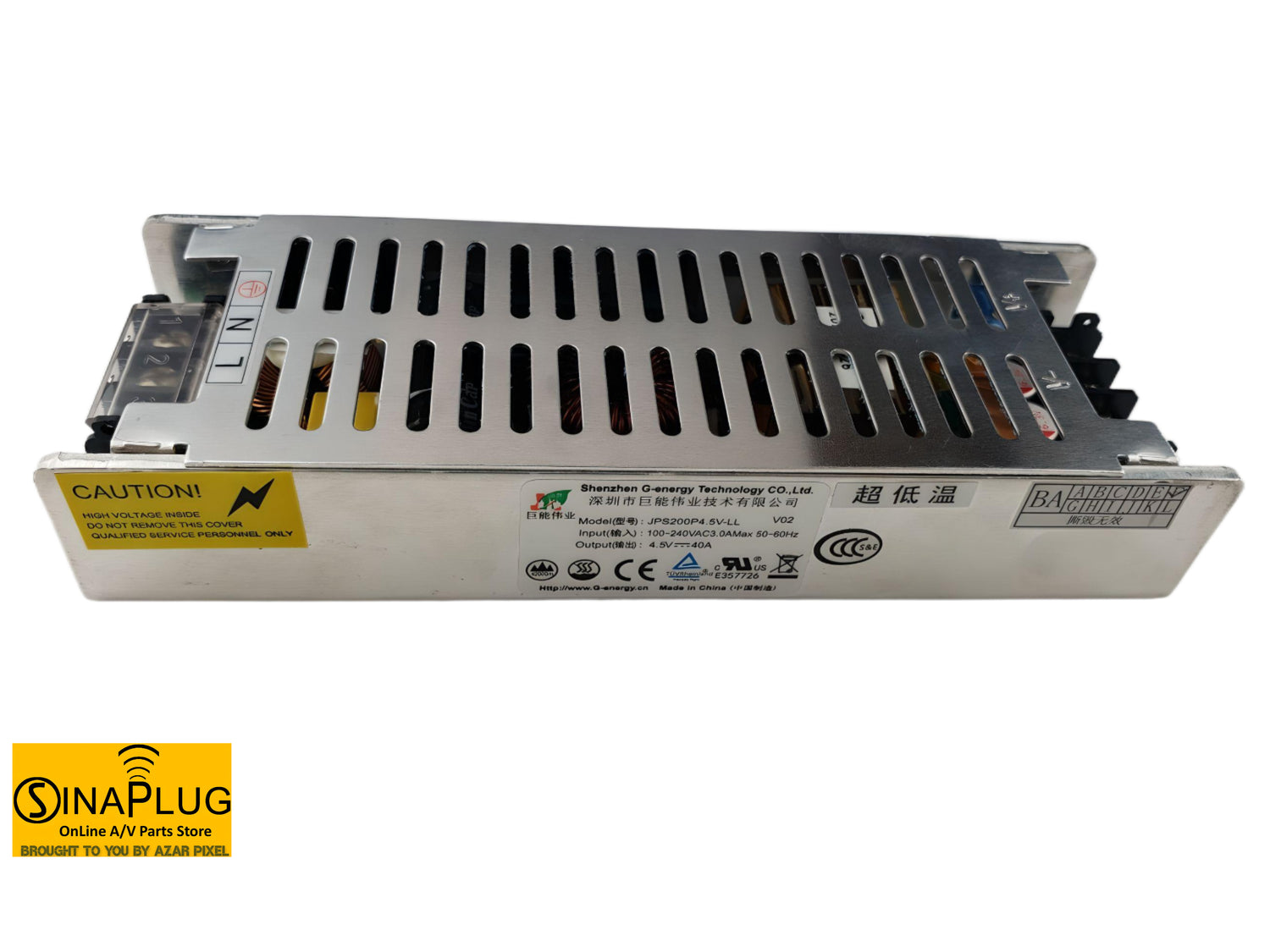

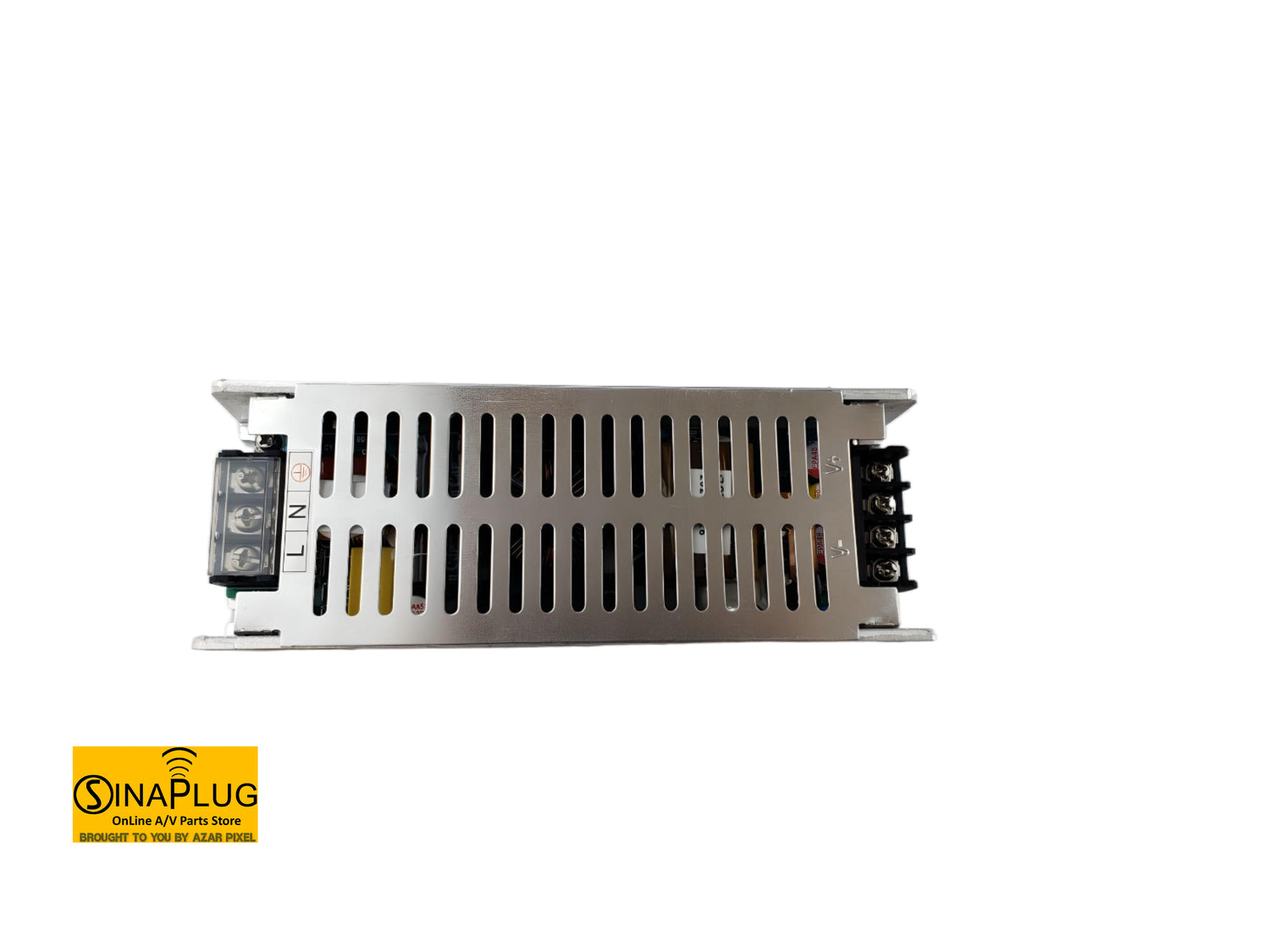

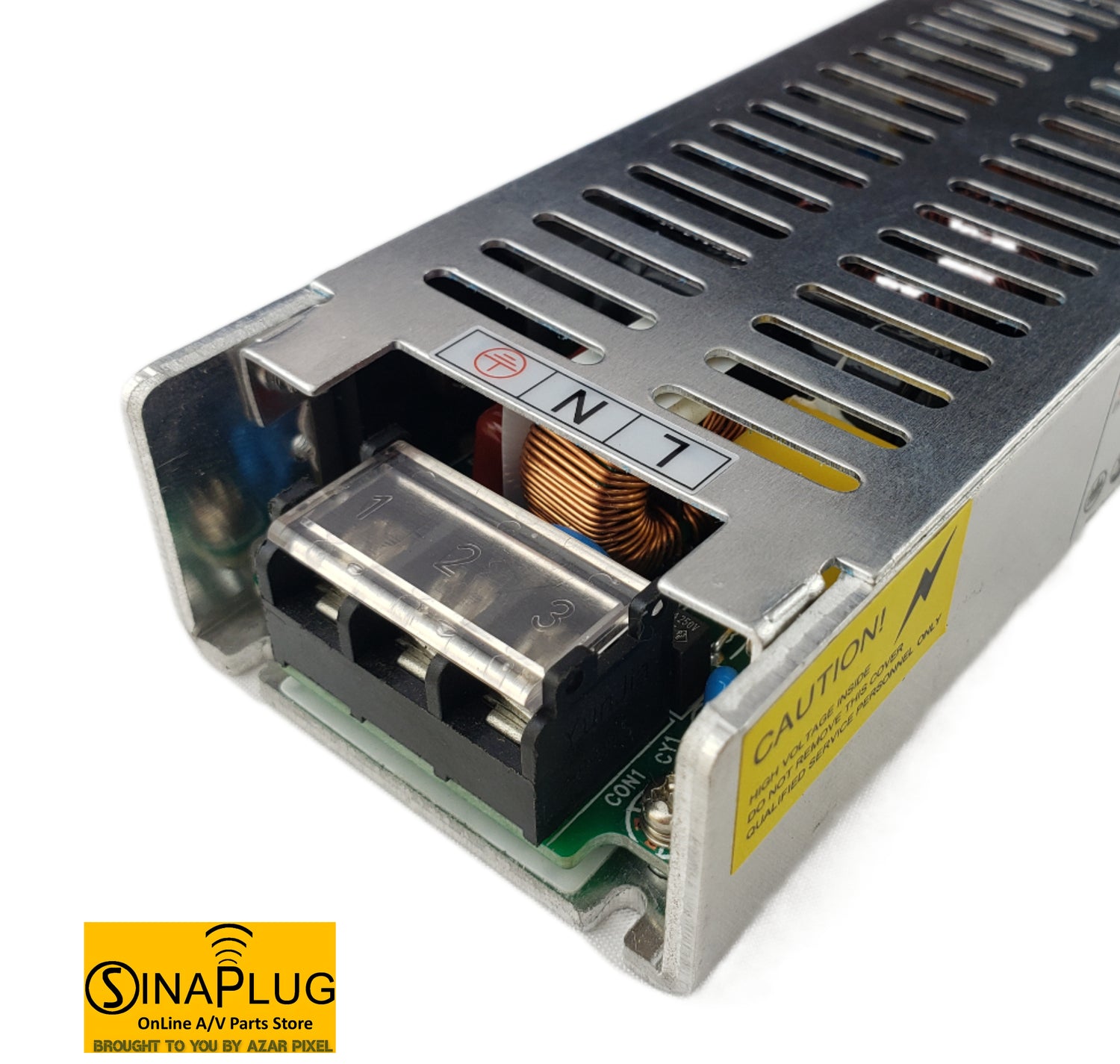

G-ENERGY JPS200P4.5-LL Switching Power Supply (4.5V, 40A)

The G-energy JPS200P4.5V-LL from JPS200P4.5V series (like JPS200P4.5V-F and JPS200P4.5V-D) is a remarkable, enclosed power supply perfect for A/V and LED equipment, and industrial applications demanding a stable dependable performance.

This AC/DC, compact JPS200P4.5V-LL converts wide-range 100-240 VAC inputs, to consistent output channels at 4.5V, delivering up to 40A. It provides a rated 180W output power with 86% efficiency for optimal operation.

This compact JPS Series power supply ensures long-term operation in demanding situations by natural air convection and performs smoothly in adverse ambient temperatures ranging from -30°C to +70°C.

In addition to the completed protections such as overload, short circuit (self-recovery), and under-voltage protections, it is certified by GB4943, EN60950, and GB8899 allows the equipment to meet the worldwide energy requirement

Key Features of JPS200P4.5V-LL

• Type of Power Supply: AC to DC
• Packaging: Enclosed
• Input Voltage Range: 100 – 240VAC
• Adjustable Output Voltage: No
• Output Voltage: 4.5V
• Output Rated Current: 40A
• Output Rated Power: 180W
• Protections: Under Voltage Protection, Over Current Protection, Short Circuit Protection
• Dimensions (L*W*H): 167mm * 60mm * 30mm
