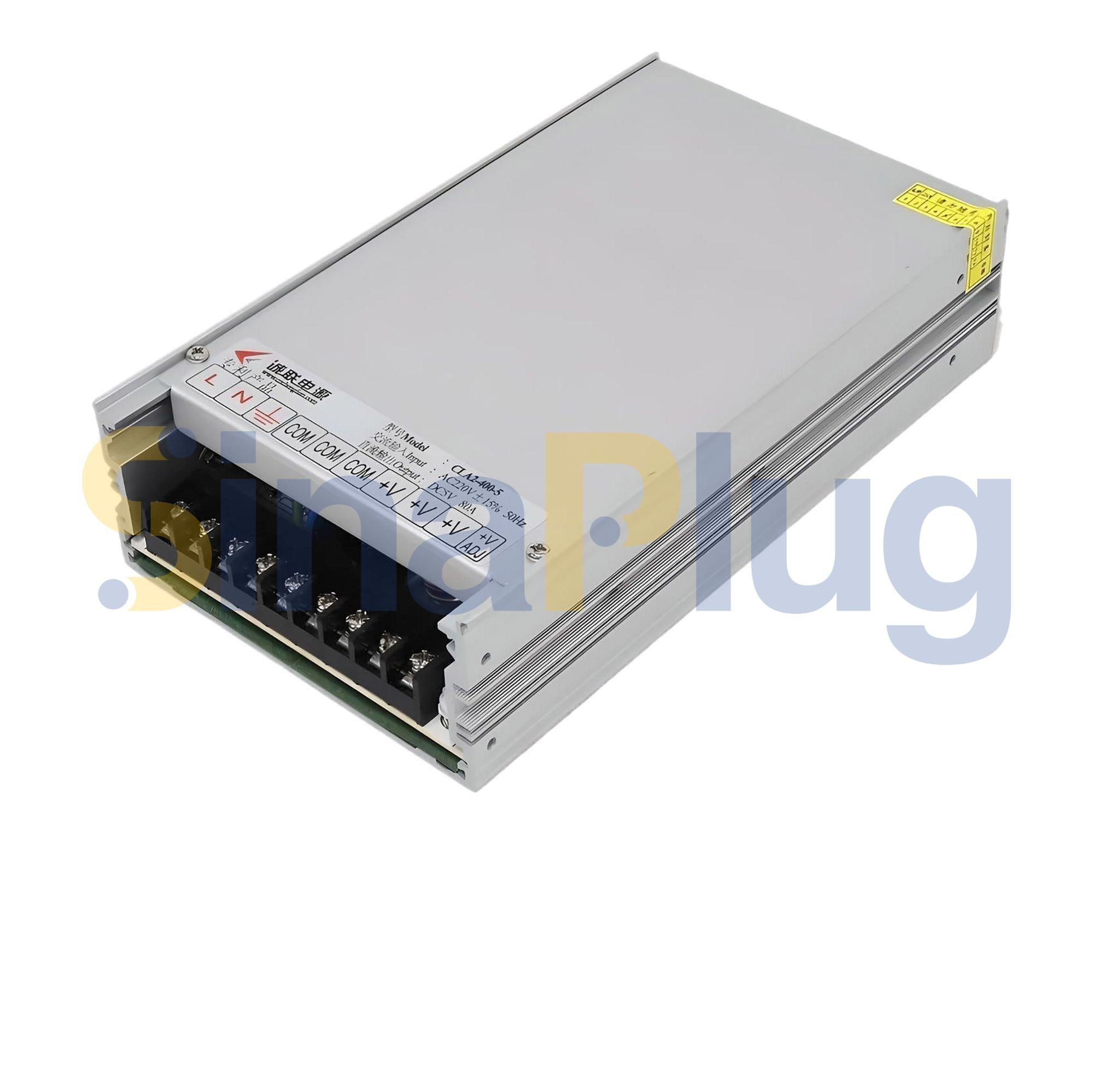

Chenglian CL-A2-400-5 Switching Power Supply (5V, 80A)

The Chenglian CL-A2-400-5 (also known as CLA2-400-5 and A2-400-5 5V80A from CL-A2-400 series) is an economical, enclosed single output power supply designed for industrial applications, billboard, and LED equipment that requires reliable performance.

This AC/DC, compact power supply provides a 5V with an adjustable 4.75-5.25V range in three output channels, delivering up to 80A, and provides a rated 400W output power from 187-253 VAC inputs.

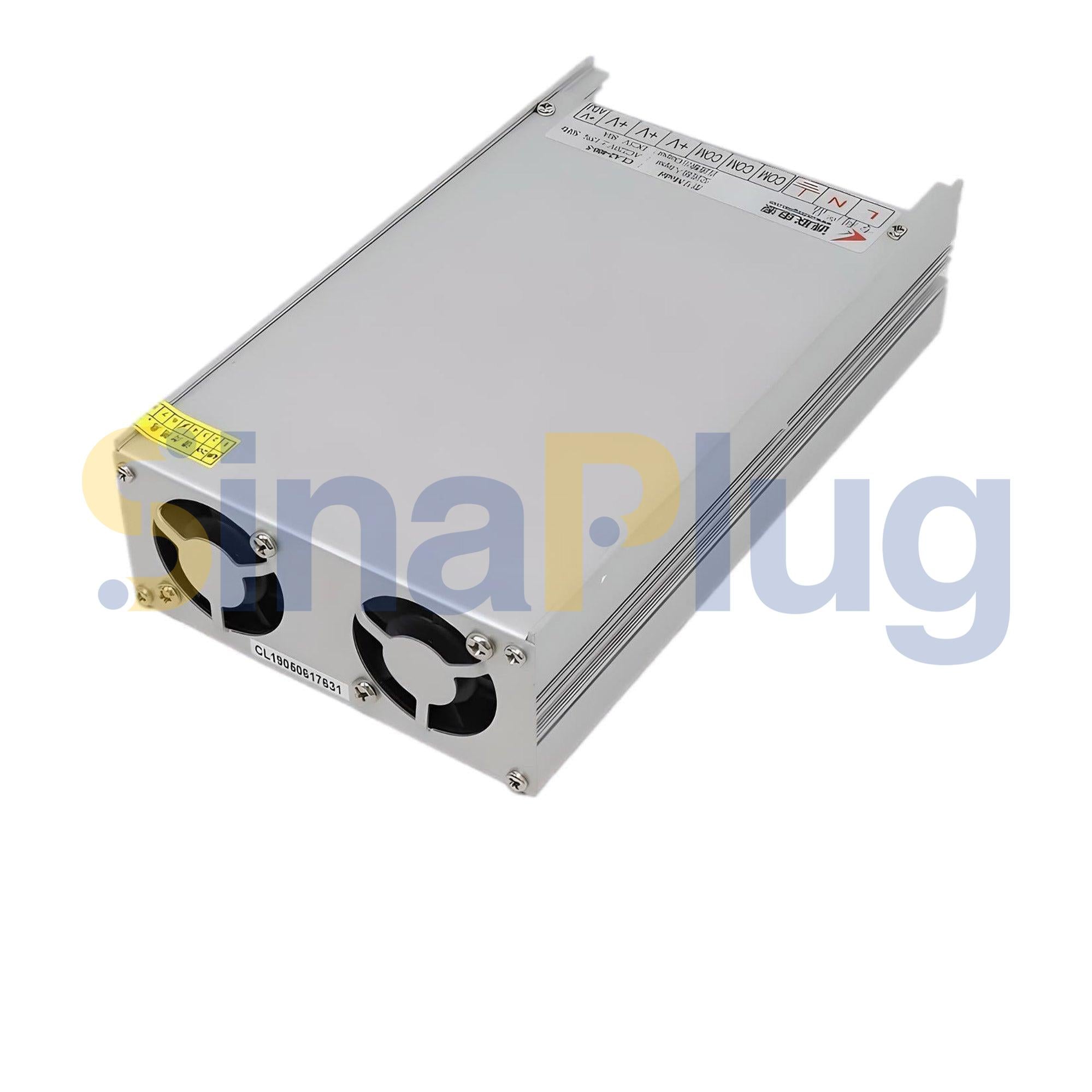

The low-profile CL-A2-400-5's integrated fan guarantees a remarkable 100K hours MTBF and long-term operation performance under harsh temperatures, which range from -20°C to +70°C. In addition to overload and short circuit protections, it is certified by EN55024, EN61000-4-6, GB4943, and UL1012, allowing it to conform to international energy standards.

Key Features of CL-A2-400-5

• Type of Power Supply: AC to DC
• Packaging: Enclosed
• Input Voltage Range: 187-253 VAC
• Adjustable Output Voltage: Yes (4.75 – 5.25)
• Output Voltage: 5V
• Output Rated Current: 80A
• Output Rated Power: 400W
• Protections: Over Current Protection, Short Circuit Protection
• Dimensions (L*W*H): 202mm * 114mm * 49.5mm
