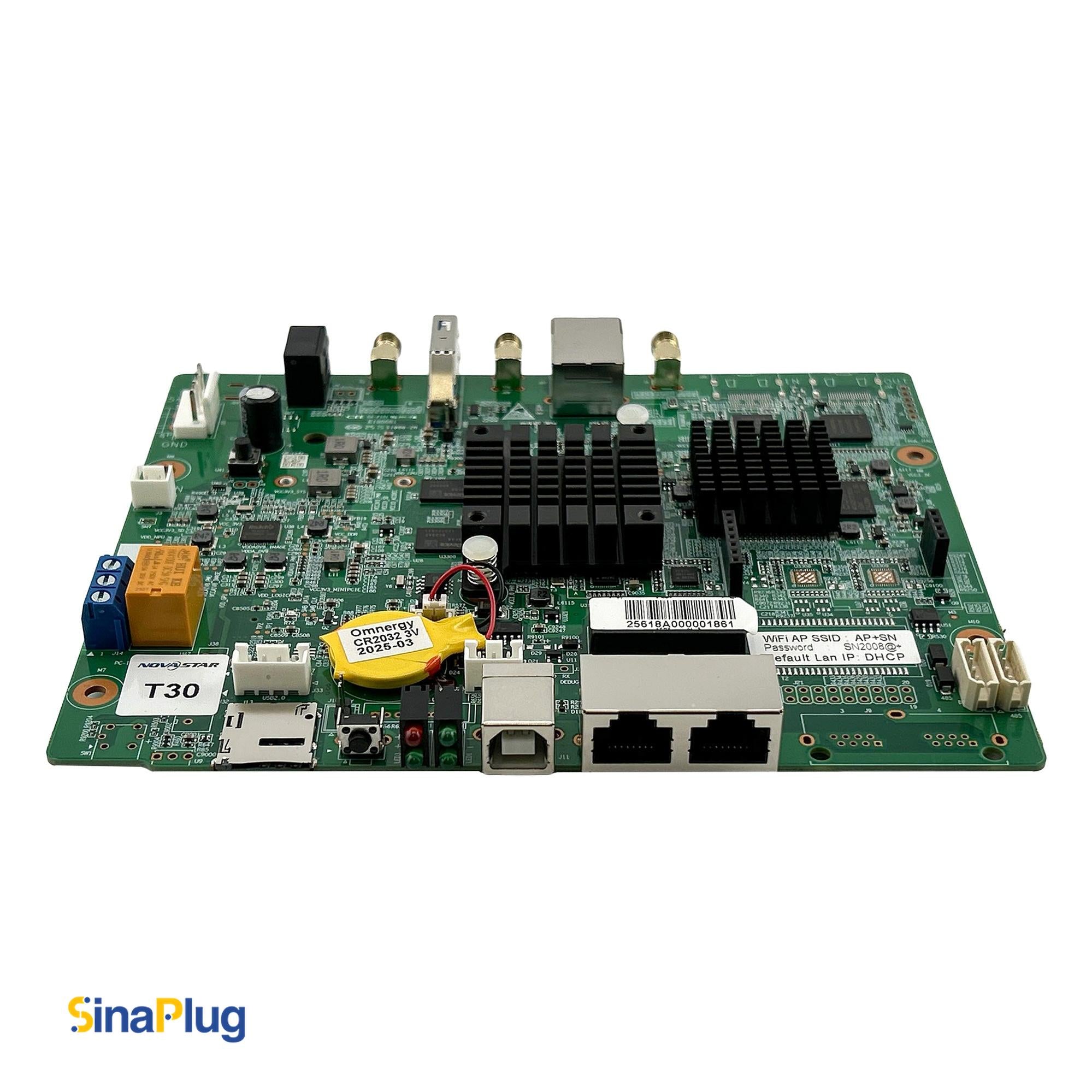

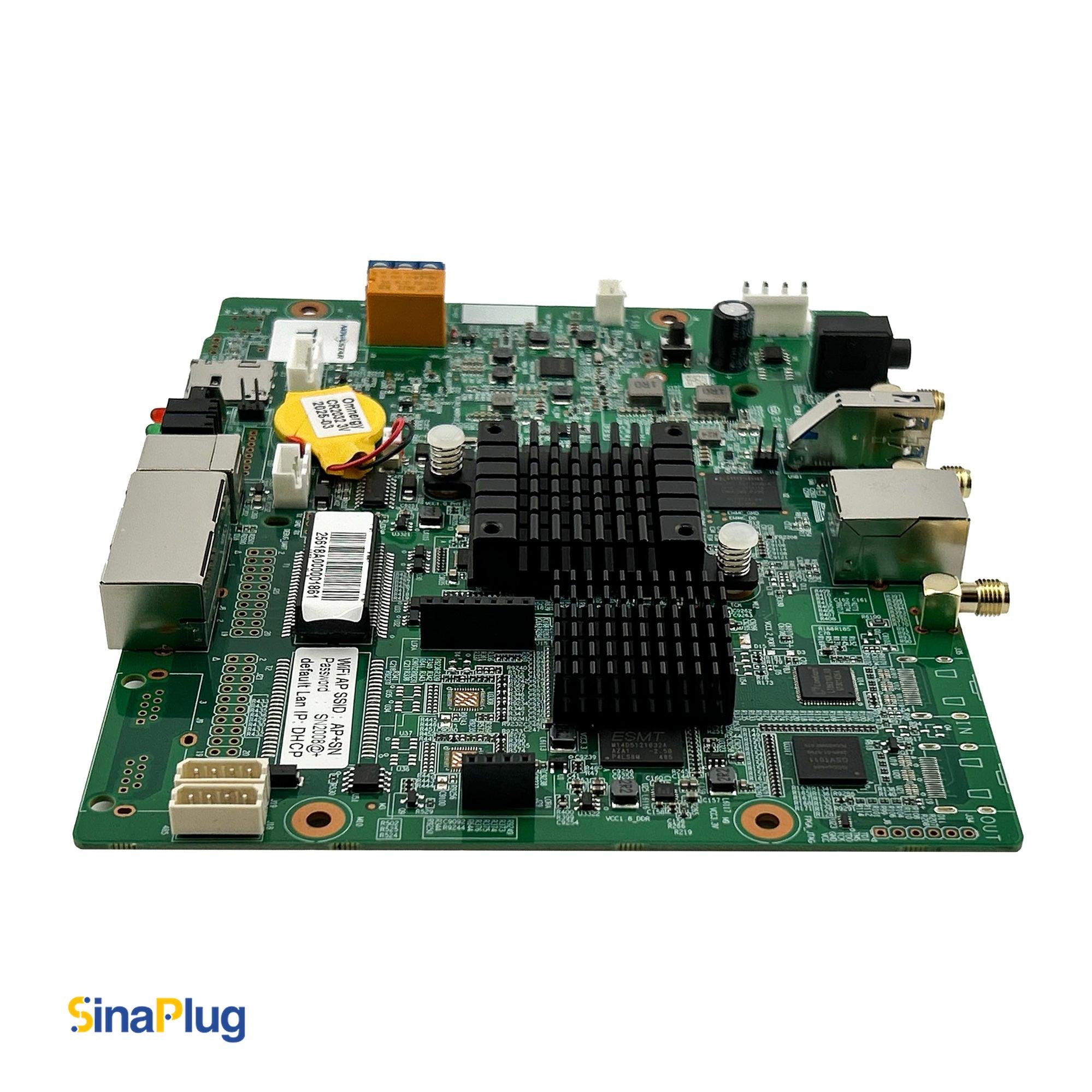

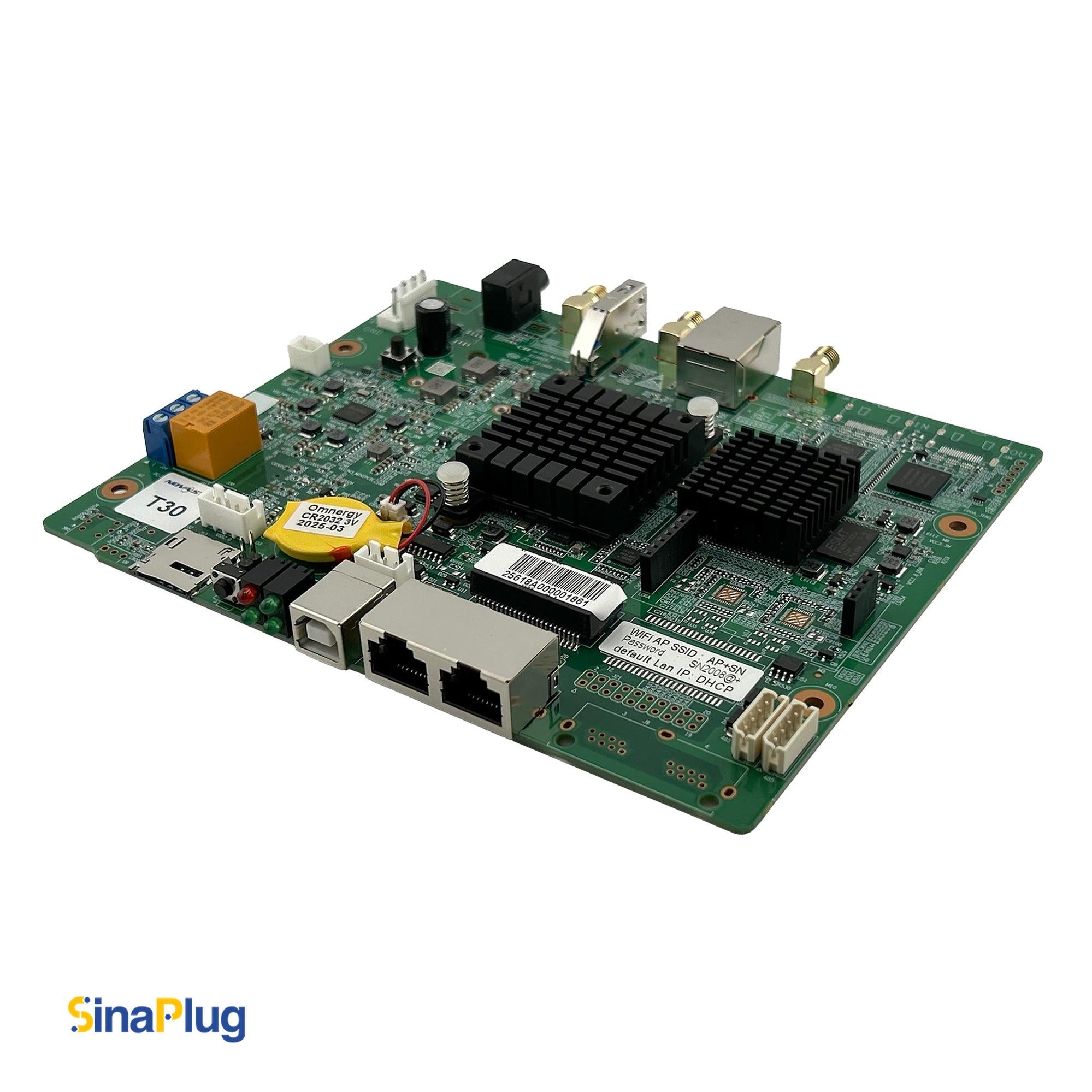

NovaStar Taurus TB30 Multimedia Player

The Taurus TB30, a new-generation cloud network multimedia player (upgrade version of TB3), is launched by NovaStar for full-color LED displays and digital signage. Known for their strong performance and exceptional reliability, NovaStar players are ideal for continuous 24/7 operation

Performance

The Taurus TB30 ensures smooth and impactful visuals with its powerful combination of a 1.8 GHz quad-core ARM A55 processor, 1 GB of RAM, and a 650,000 pixel loading capacity. This enables flawless playback of up to 1x 4K, 2x 1080p, 4x 720p, 4x 480p, or 6x 360p and 4K/FHD/HD/H.265 video decoding.

Control

The Taurus TB30 offers an All-round control plans that allows users to conveniently control the player from any location at any time using remote PCs and user terminals connected to the Internet, such as smartphones and tablets. Additionally, it supports scheduled commands, LAN and Internet-based scheduling, and synchronous playback across multiple screens via GPS (with optional 4G/5G module), RF (with optional RF module) or NTP time synchronization.

Storage

In addition to 32GB of internal storage for media and applications, the device supports expanded storage and content import via an USB 3.0 port, which also enable firmware upgrades. Cloud storage integration further enhances content management.

Connection

The Taurus TB30 seamlessly integrates into various digital signage networks thanks to its comprehensive connectivity options. For LAN and internet connectivity, it offers flexible configurations including RJ45 Ethernet, Wi-Fi (AP, STA, and AP+STA modes), and optional 4G/5G cellular connectivity for expanded remote deployment capabilities.

Operation

NovaStar multimedia players are ideal for users who prefer an Android-based platform for their signage needs. Supporting a wide range of management software, including ViPlex Express, NovaCloud, VNNOX, ViPlex Handy, and NovaLCT, the NovaStar platform ensures a smooth user experience across various applications.

Ensuring reliable operation in diverse environments, the TB30 is certified to UL, IC, CE, EAC RoHS, FCC, EAC DoC, CB, UKCA, FAC, and NBTC standards and performs flawlessly in extreme temperatures ranging from -20°C to +60°C. It operates with a 100-240VAC input and consumes a maximum of 18W.

Management and Publishing

The Taurus TB30 simplifies display management with both local and cloud-based options for program editing and publishing, all powered by ViPlex Express software.

Sensing

The TB30's sensor ports continuously monitor the environmental temperature, humidity, and brightness. This real-time monitoring enables dynamic display modifications, resulting in more effective presentation experiences and increased energy economy.

I/O Ports

The TB30 features two Gigabit Ethernet ports (primary/backup pairs) for reliable, high-performance transmission, it also includes multiple USB Type-A and Type-B ports, a 3.5mm stereo audio interface, and two optional 4G and Wi-Fi antenna connectors for easy integration into various signage setups

Applications

The TB30's significant features makes it a perfect fit for commercial LED displays and Digital signage that require stable and reliable performance, like fixed displays, lamp-post displays, retail store displays, advertisement players, mirror displays.

Key Features of Taurus TB30

• Output:

Loading capacity up to 650,000 pixels (max width of 4096 pixels

max height of 4096 pixels)

2x Gigabit Ethernet LED out ports (one primary/ one backup)

1x Stereo audio connector with 48 kHz internal sample rate and variable external sample rates

• Input:

2x sensor connectors (brightness or temperature and humidity)

1x USB 3.0 (Type A) port (USB playback and firmware upgrades)

• Control:

1x USB (Type B) port (control computer connection and screen control)

1x Gigabit Ethernet port (control computer, LAN or network connection)

• Performance:

quad-core ARM A55 processor @1.8 GHz

Hardware H.265/4K/HD/FHD video decoding

1 GB RAM,

32 GB internal storage

Flawless playback up to 1x 4K, 2x 1080p, 4x 720p, 4x 480p, or 6x 360p videos

• Decoding:

Supports following file formats:

Image: JPG/JPEG/BMP/GIF/PNG/WEBP

Video: DAT/MPG/VOB/TS/AVI/ MKV/MP4/MOV/3GP/FLV/WEBM/WMV/ASF

• Functionality:

All-round control plans for content publishing and screen control from several devices

Multiple connection solutions (wired and wireless)

Both Wi-Fi AP and Wi-Fi STA modes are applicable at the same time (Wi-Fi AP/ Wi-Fi STA/ Wi-Fi AP+STA)

Synchronous playback across multiple screens with NTP, GPS, and RF time synchronization methods (The specified modules must be installed)

Support for optional 4G/5G modules

Support for optional RF modules

Ethernet LED out redundancy

• Dimensions (L*W*H): 274.3mm * 139mm * 40mm
