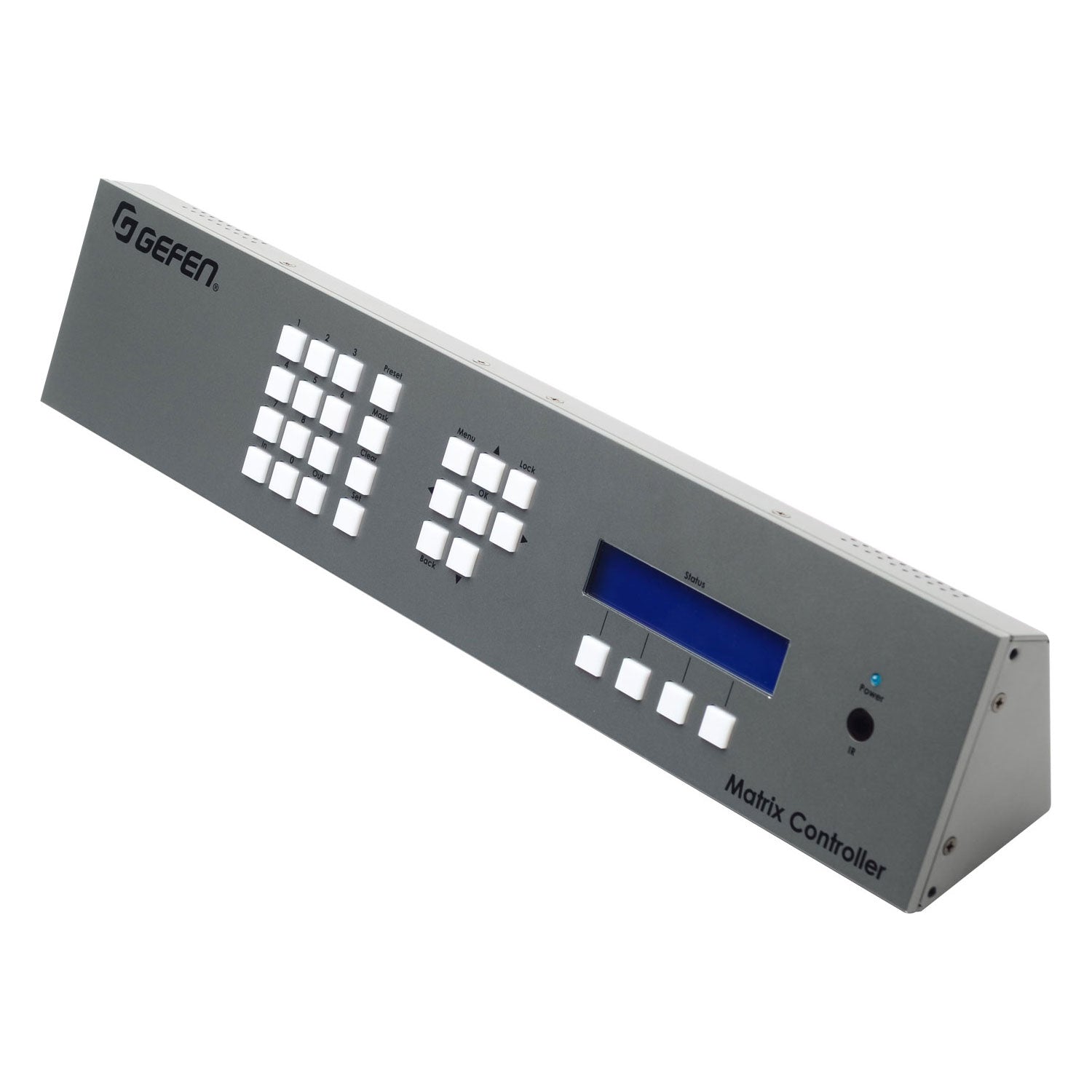

Gefen EXT-CU-LAN MATRIX CONTROLLER

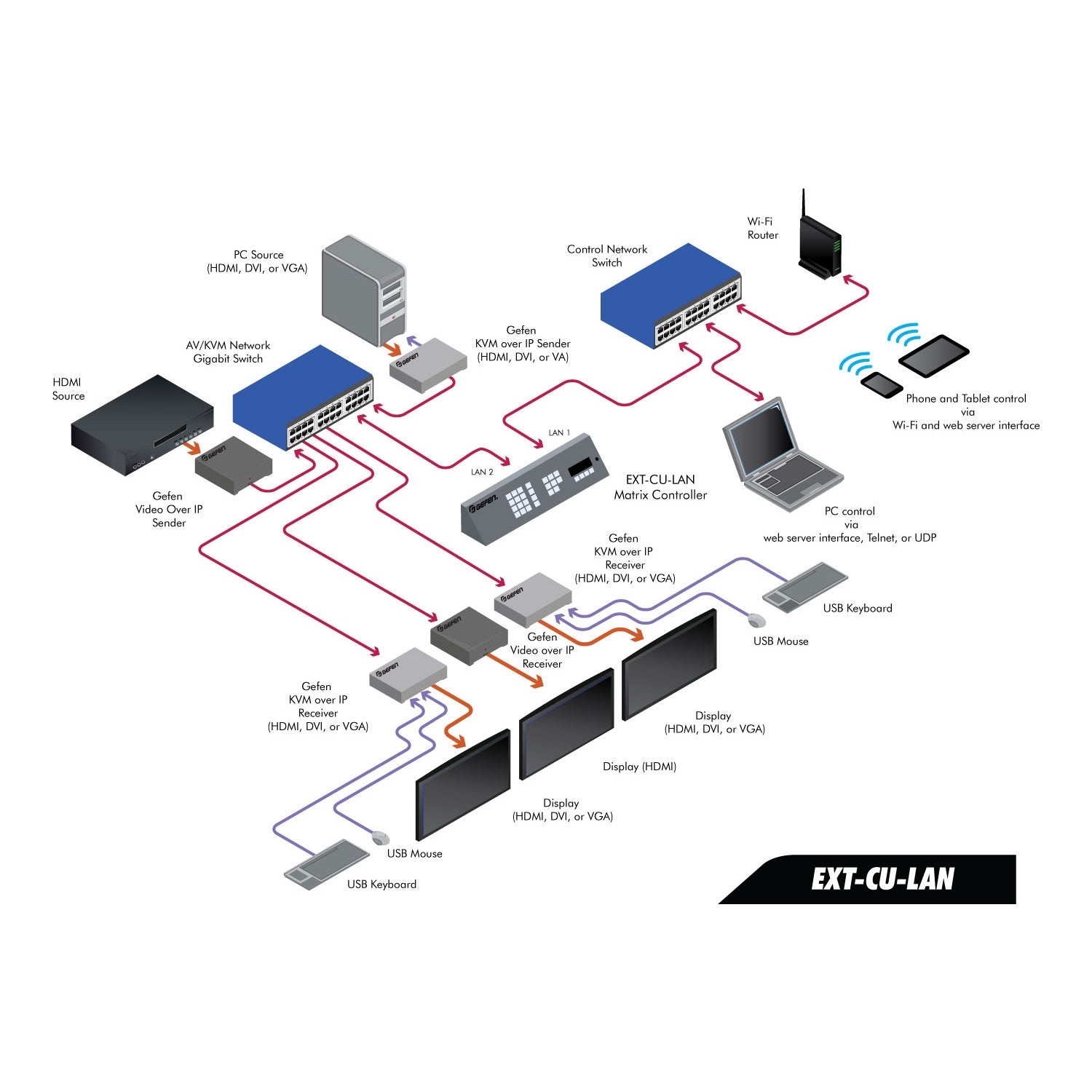

The Gefen EXT-CU-LAN Matrix Controller is a hardware platform designed to manage and control the Gefen family of Video and KVM over IP products in a virtual matrix environment. Its comprehensive and user-friendly interface can be accessed by any web-enabled device, including phones, tablets, and PCs. End-users can control matrix routing and access presets, no matter the size and complexity of the system. It also manages access to the AV network, providing two independent levels of security for administrators and end-users. With applications ranging from broadcast, rental/staging, control rooms, security, digital signage, campus/education, to multi-room AV, the EXT-CU-LAN provides a complete and cost-effective solution for managing video and audio in classrooms, conference rooms, command centers, and as the backbone of any high performance system that needs to interface with multiple sources and displays, AV formats, and resolutions in a dynamic environment.

Specifications

Display: 2 lines, 20 characters per line, Liquid Crystal Display, backlit

Push-buttons: (28) tact-type

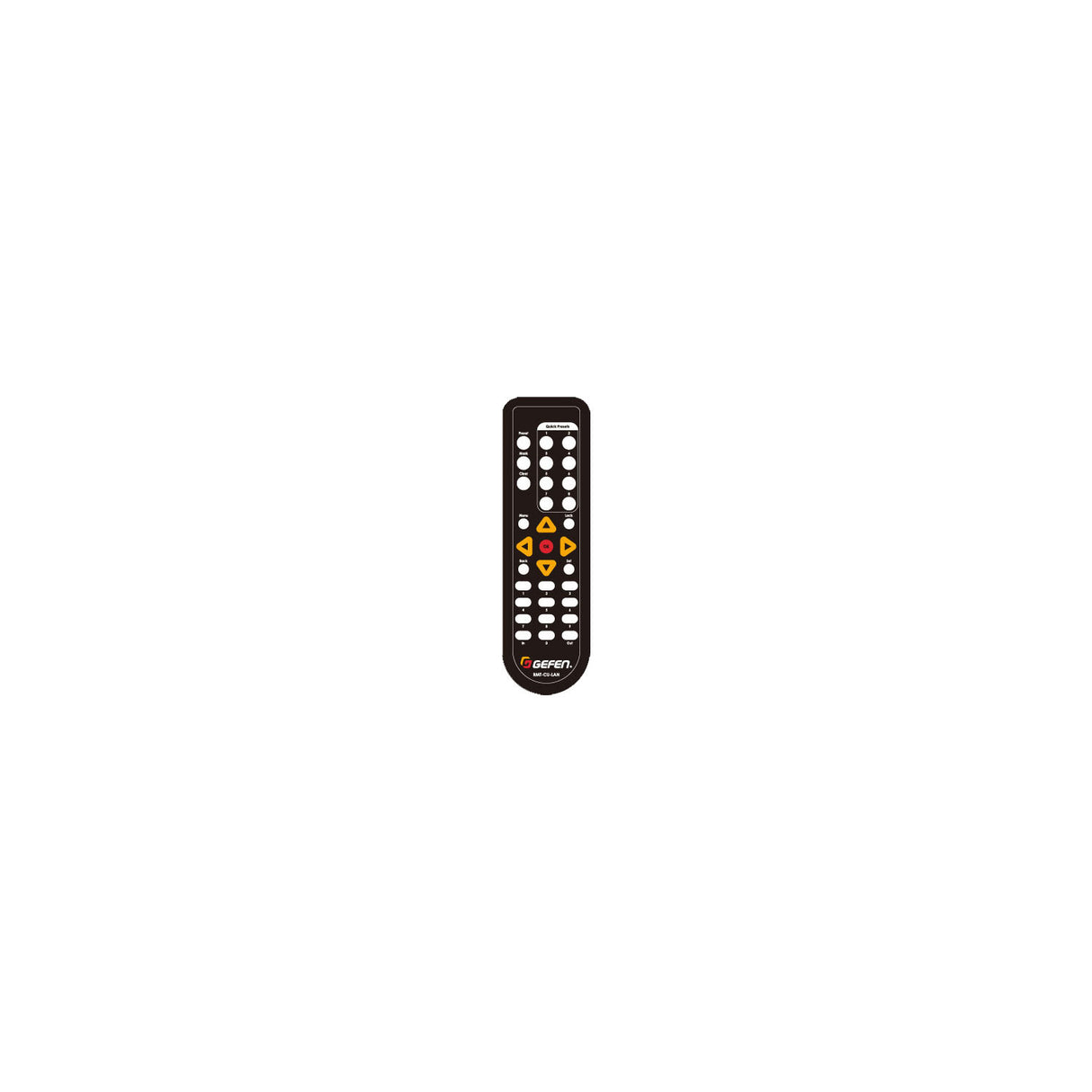

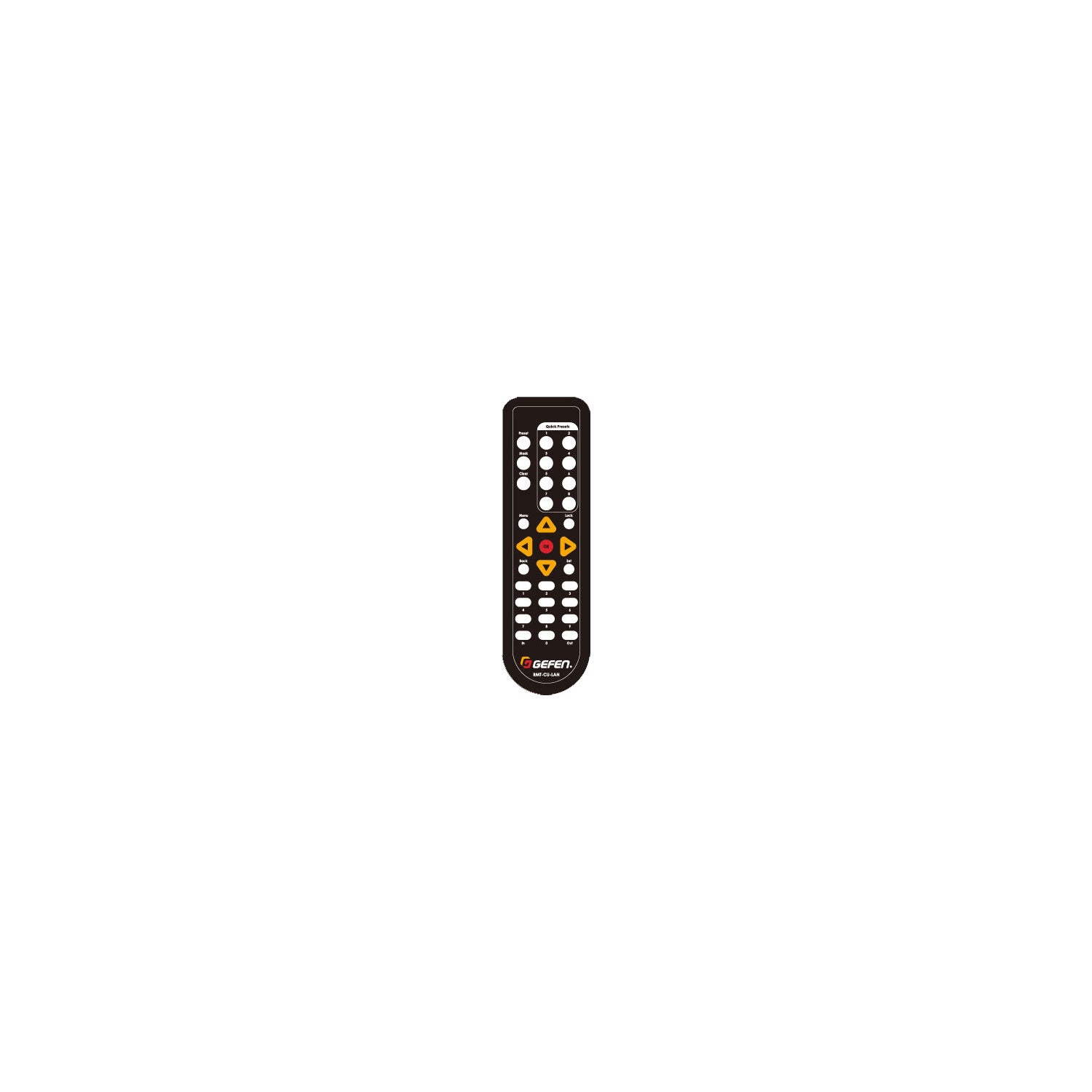

IR Sensor: (1) on front panel

LAN 1 IP Port: (1) RJ-45 jack, POE-enabled

LAN 2 IP Port: (1) RJ-45 jack

Power Indicator: (1) LED, blue

Power Supply: 5V DC, locking connector

Power Consumption: 4.3W maximum

Operating Temperature: +32 to +122 °F (0 to +50 °C)

Operating Humidity: 5% to 90% RH, non-condensing

Storage Temperature: -4 to +185 °F (-20 to +85 °C)

Storage Humidity: 0% to 95% RH, non-condensing

MTBF: 50000 hours

Dimensions without rack ears (excluding buttons & connectors, W x H x D):

17" x 3.5" x 2.7" (432mm x 88mm x 68mm)

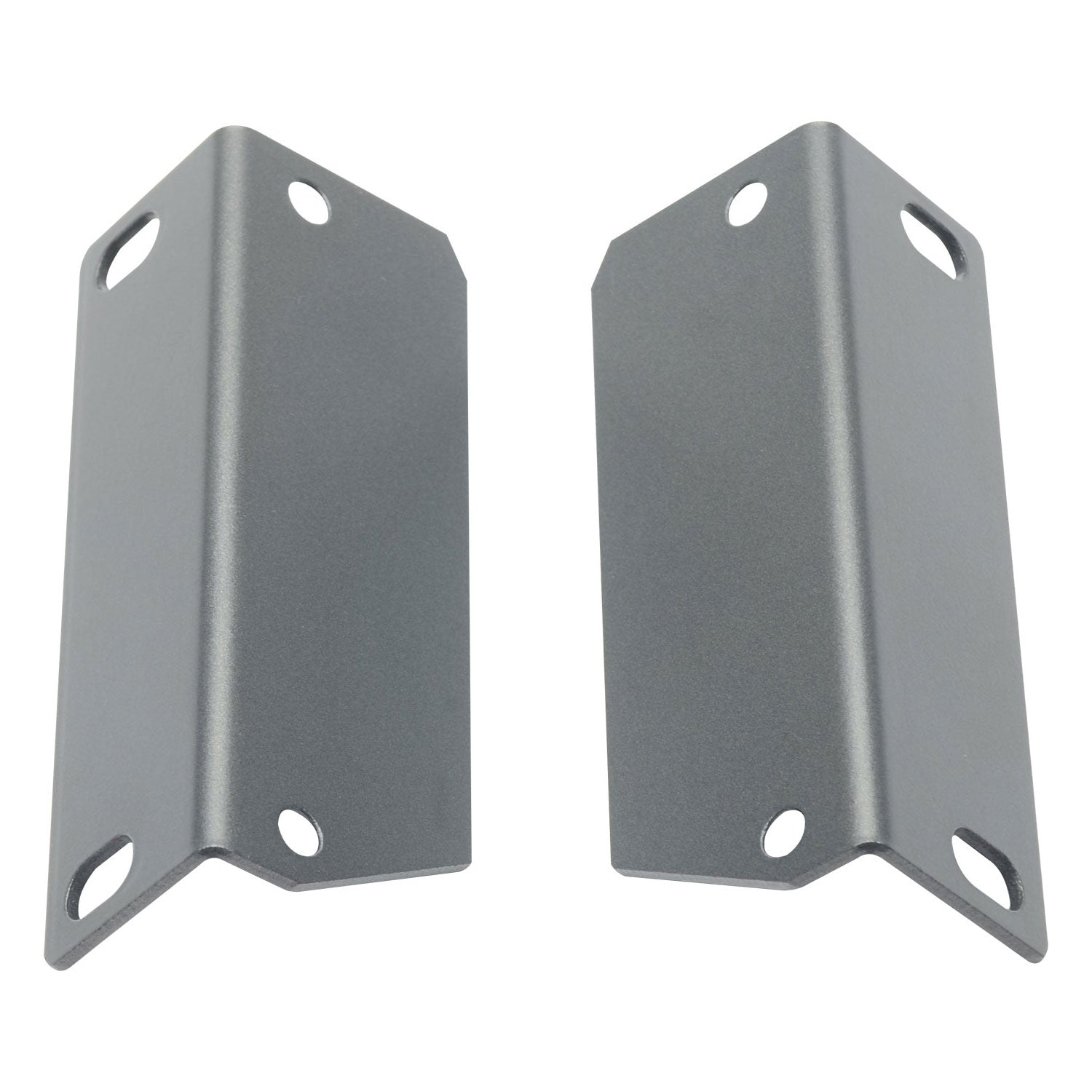

Dimensions with rack ears (excluding buttons & connectors, W x H x D):

19" x 3.5" x 2.7" (482mm x 88mm x 68mm)

Net Unit Weight: 3.7 lbs (1.7 kg)

Packaged Weight: 5.6 lbs (2.6 kg)
