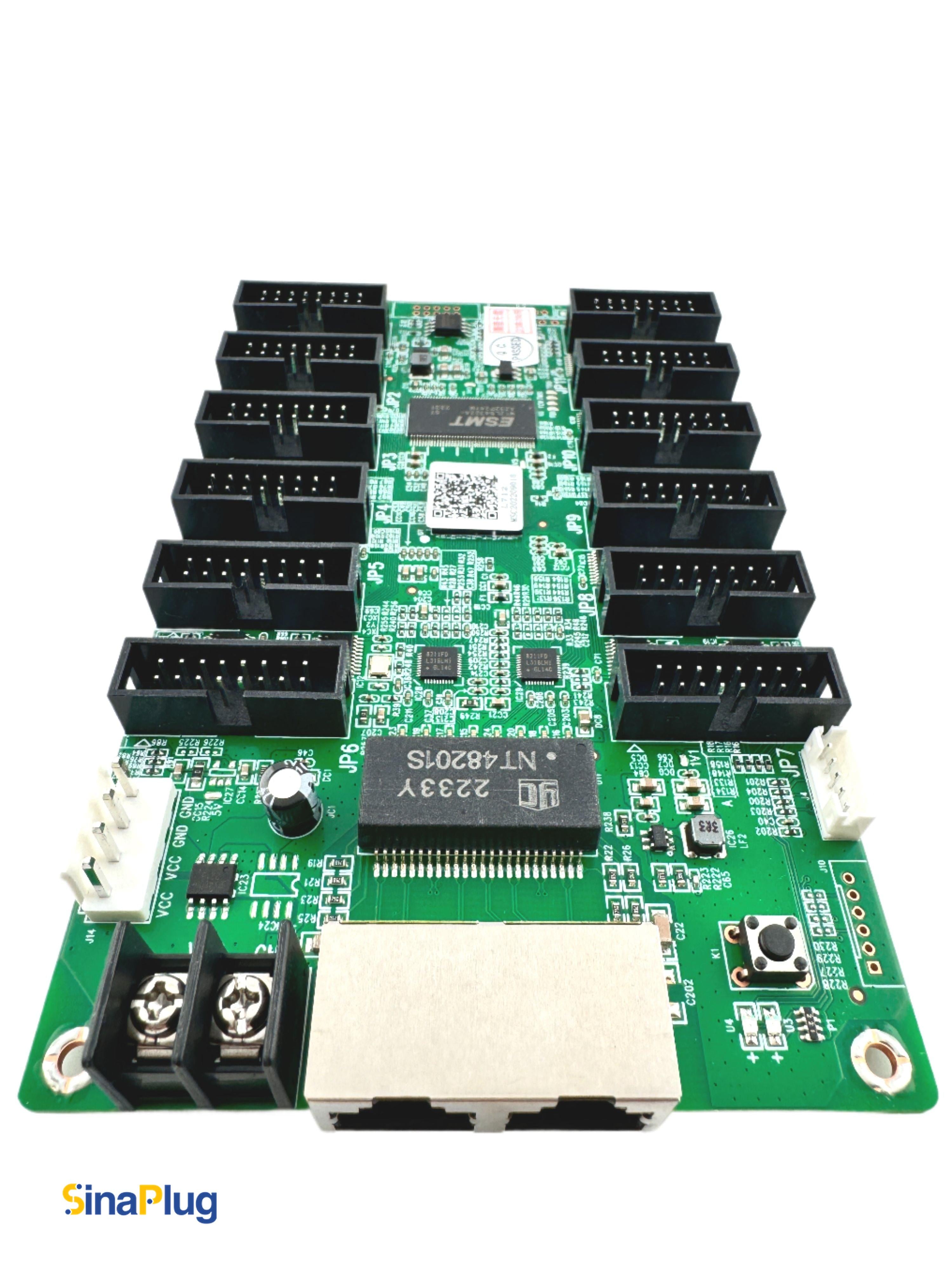

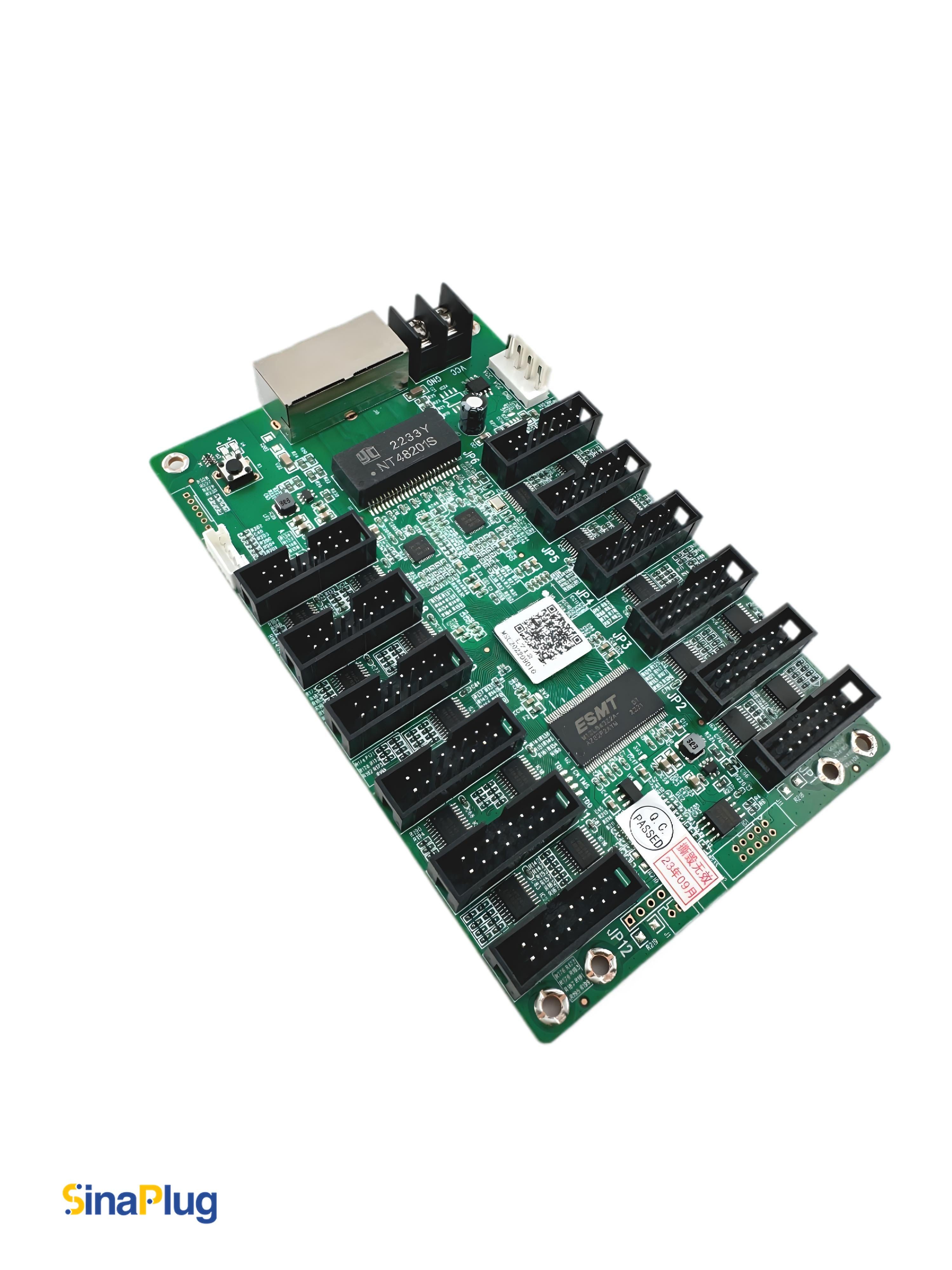

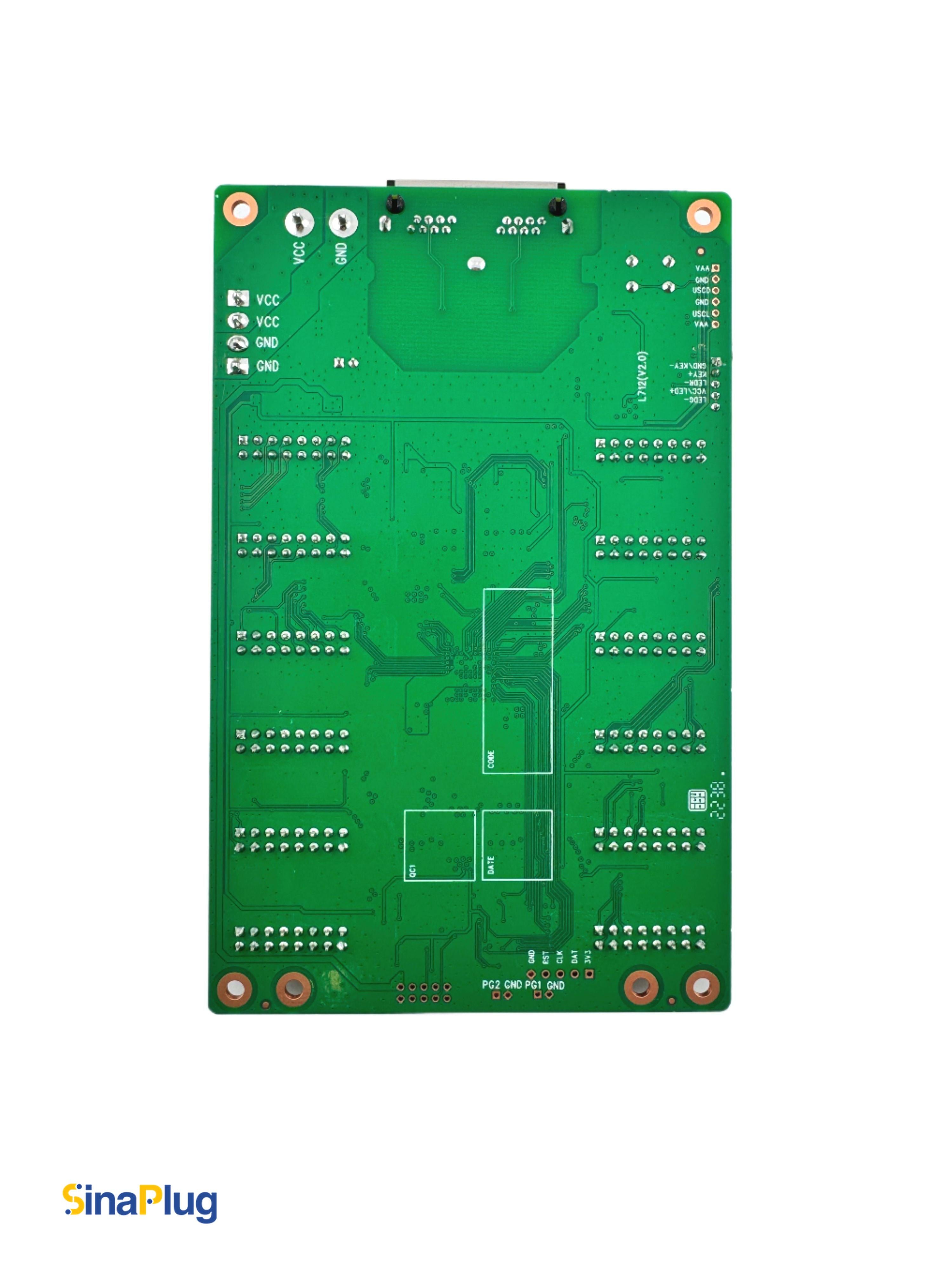

Mooncell L712 LED Receiving Card

L712 is a receiving card that suitable for -shaped led display and is fully researched and developed by Mooncell; it adopted 12x HUB75E interfaces; it can supports the maximum 24 groups of the parallel connection data;the maximum loading capacity could reach up to 256*512 pixels; with strong processing ability, supper reliability and high competitive price.

Function Characteristic

1、It supports pixel level brightness and Chroma Calibration

2、Multiple Solutions of the Displayed Effects are Supported

3、The Images on the led screen can be rotated 90 degree in a factor of multiple times

4、The Receiving Card is Supported to detect its own Sequence number

5、It supports network cable hot backup (online backup)

6、The easy control of led displays with irregular shapes and sizes.

7、The Images on the led screen can be rotated 90 degree in a factor of multi times and also can be zoomed in & out.

8、It supports to have the user-defined data interface(customized)

9、It is RoHS & CE-EMC compliant.

Loading Specs

1、Parallel Data (RGB): 24 Dataset

2、Serial Data: 72 Dataset

3、The maximum loading capacity(pixels):256*512

4、The quantity of the receiving cards that it can be cascading connected:≤1000PCS

5、The scanning line supported:1-64 Lines
