NOVASTAR-CVT4K-S Fiber Converter (single mode)

NovaStar CVT4K-S Fiber Converter

Key Features:

• Advanced Signal Conversion: Enables seamless signal conversion between optical fiber and twisted pair cables, ensuring stable long-distance transmission.

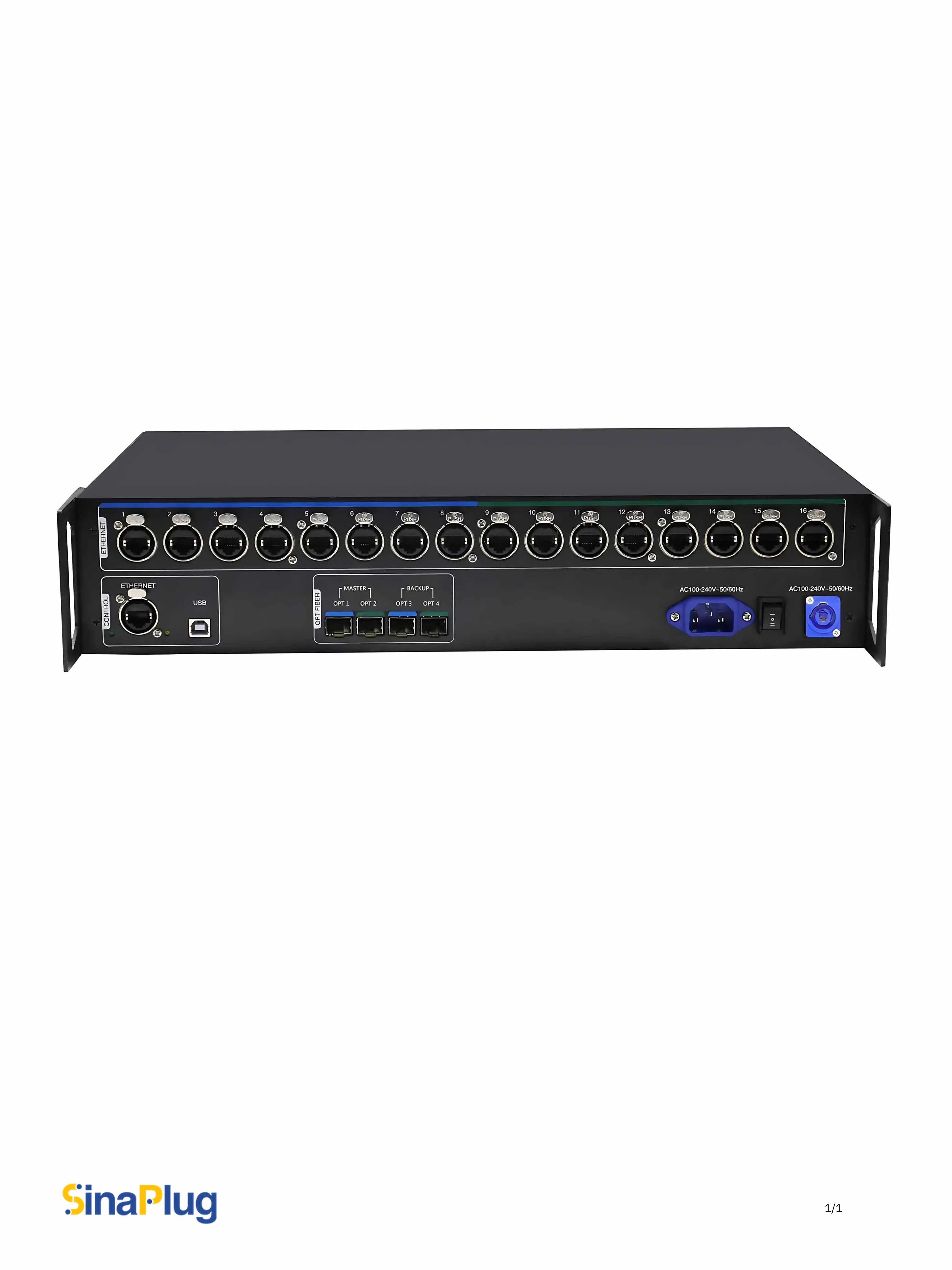

• 16-Channel Neutrik Ethernet: Supports 16-channel Neutrik Ethernet inputs and outputs, providing robust connectivity for your LED display systems.

• 4-Channel Optical Fiber: Equipped with 4 optical fiber inputs/outputs, including 2 master channels and 2 backup channels, ensuring reliable performance even in demanding scenarios.

• Dual-Power Redundancy: Built-in dual-power redundancy backup enhances stability and reliability, minimizing the risk of power-related failures.

• Flexible Power Options: Features two types of power interfaces (3-pin power socket and PowerCON), catering to diverse customer needs.

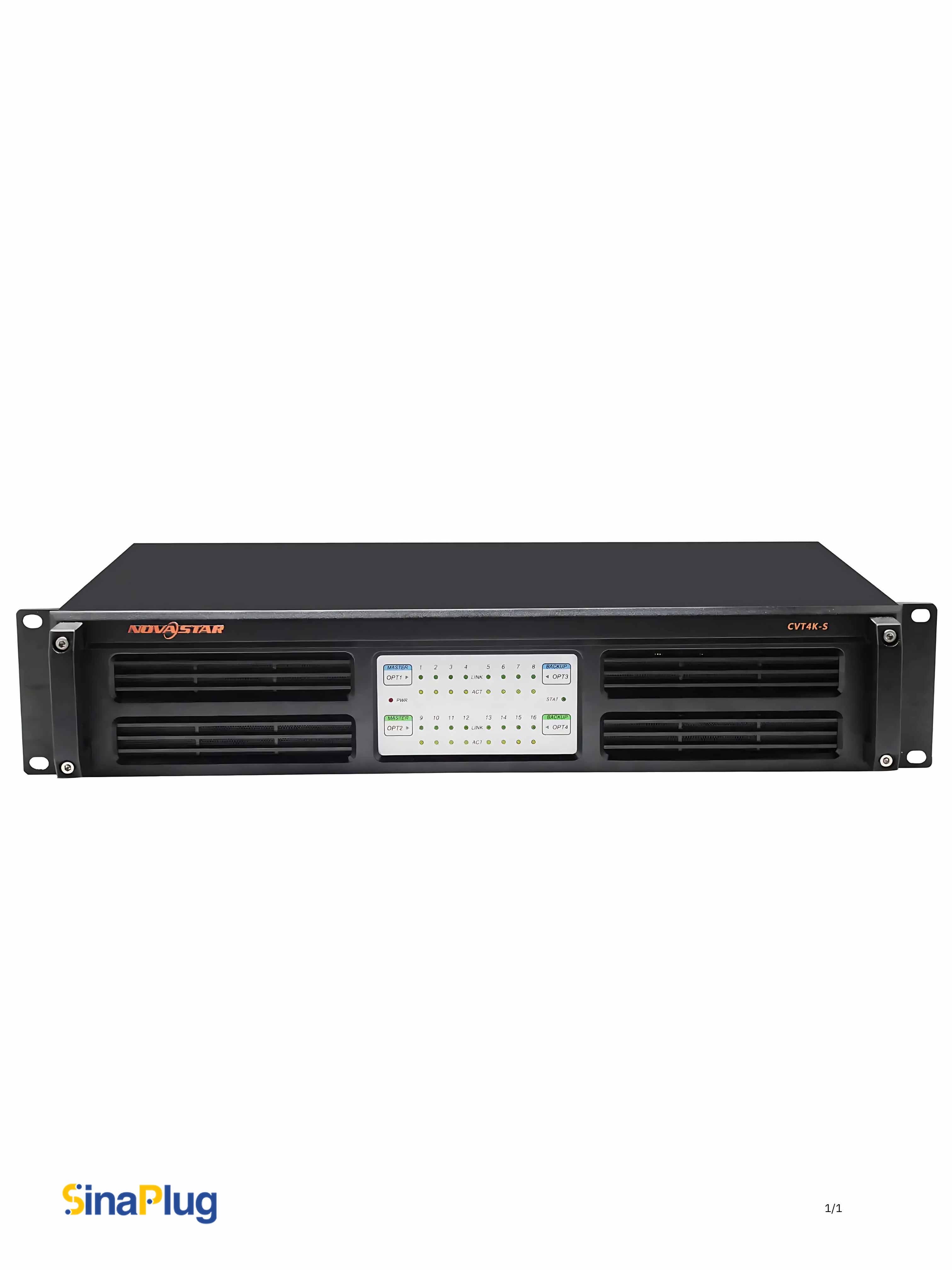

• Clear Status Indicators: Various indicator lights on the front panel provide clear visibility of each status, making it easy to monitor system performance.

• USB and Ethernet Control: Includes USB and Ethernet control interfaces for flexible and straightforward connections to main control computers.

Product Description:

The NovaStar CVT4K-S Fiber Converter is a cutting-edge solution for converting signals between optical fiber and twisted pair cables, ensuring stable and interference-free long-distance transmission. Designed with ease of use in mind, the CVT4K-S simplifies onsite connections and enhances the convenience of connecting terminal devices.

With support for 16-channel Neutrik Ethernet inputs and outputs, along with 4-channel optical fiber inputs/outputs (including 2 master and 2 backup channels), the CVT4K-S delivers exceptional connectivity and reliability. Its dual-power redundancy backup provides added stability, ensuring continuous operation even in critical situations.

The CVT4K-S also features flexible power options, with both 3-pin power socket and PowerCON interfaces available to meet varying customer requirements. The front panel's indicator lights offer clear status visibility, enabling quick and easy monitoring of the system. Additionally, the USB and Ethernet control interfaces make it simple to connect to main control computers, further enhancing the flexibility and usability of the CVT4K-S.

Ideal for professional LED display setups, the NovaStar CVT4K-S is the reliable, high-performance fiber converter you need for smooth and efficient operation.

Product Specifications:

• Product Type: Gigabit Ethernet, Fiber Converter

• Interface Type: LC, RJ-45 (Neutrik)

• Wavelength: 1310nm

• Transmission Distance: Up to 10 KM

• Control Method: USB/TCP/IP

• Supply Voltage: AC 100-240V, 50/60Hz

• Certifications: CE, FCC, UL & CUL, EAC, CB, IC
